Outer view of the DTX-202 TIG
17
DTX-2200-3000 AC/DC
13 Outer view of the DTX-202 TIG

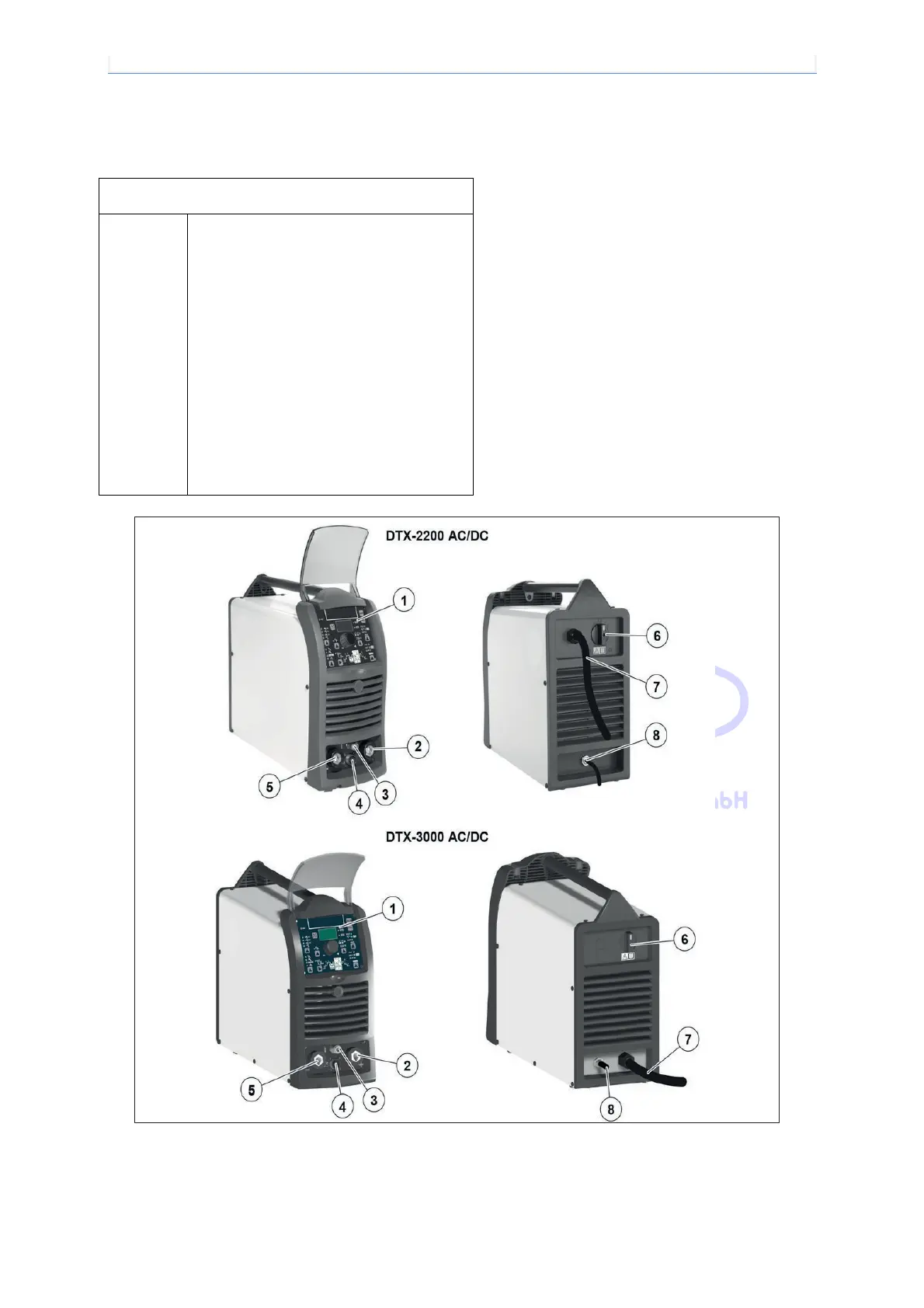

Command and Control Units (Image 1
)
Pos. 1
Pos. 2
Pos. 3
Pos. 4
Pos. 5
Pos. 6
Pos. 7
Pos. 8
MTH command and control panel.
Positive pole quick connection.
Fast coupling TIG torch gas tube.
TIG weld auxiliary control connector (torch
button, remote control pedal, etc.).
Negative pole quick connection.
Power supply switch. In the “O” position
the welder is off.
Power supply connection
Welding gas hose.
Image 1
