DTX-2200-3000 AC/DC
If a remote control is connected (followed by the self-recognition procedure), if it has been pre-set for automatic
welding.
15.4 Interfacing accessories (optional)

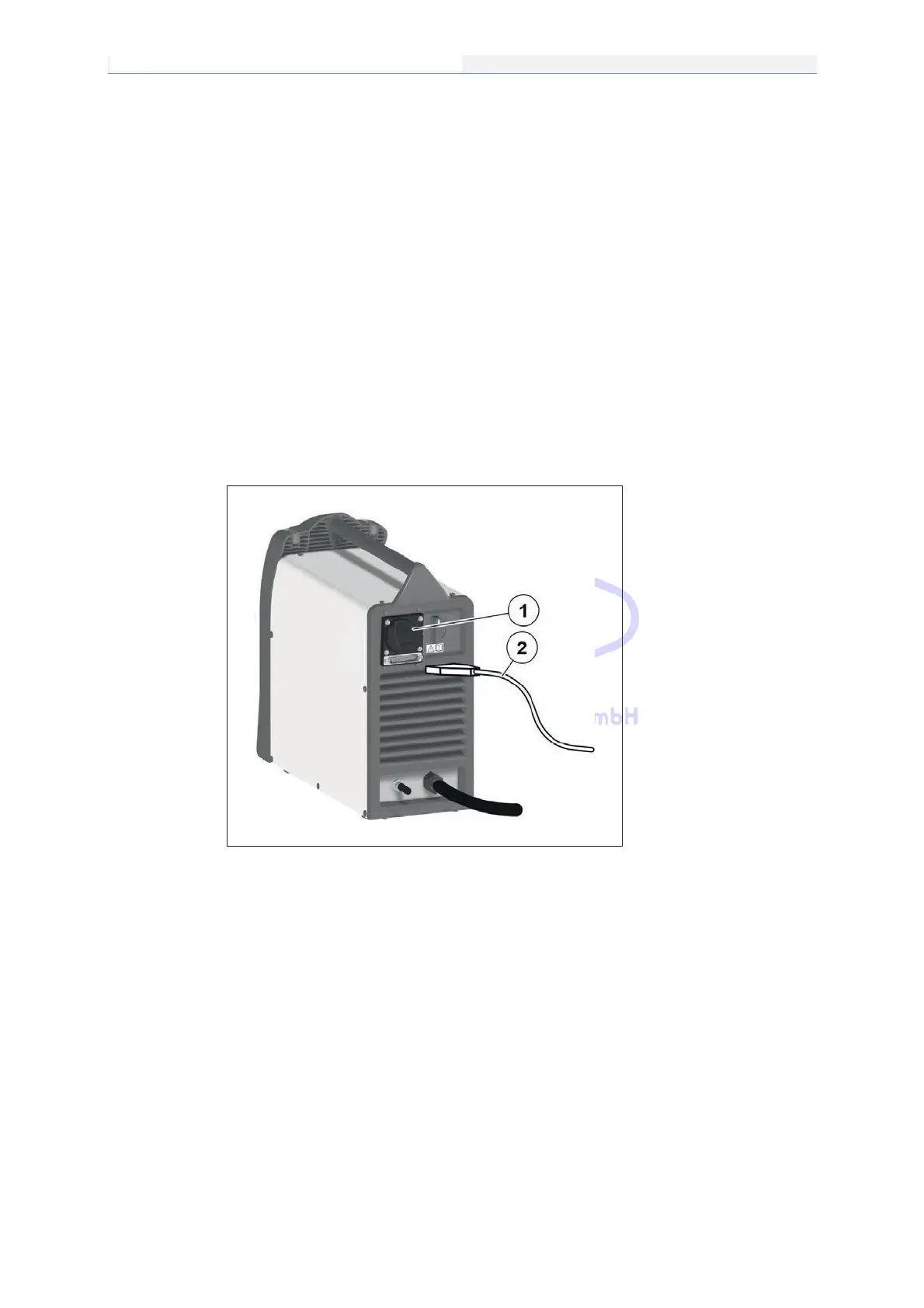

“RoboMAT 1” analogue / digital robot interface Fitted on the back of the DTX-3000 AC/DC welding machine
(see example, Pos. 1, Image 9).
“RoboMAT 1” analogue / digital robot interface connection cable - Cutting robot or for automatic equipment
Connect the cable to the analogue / digital interface as shown in figure (Pos. 2, Image 9).
To connect the other end of this cable see the diagram in the manual for the “RoboMAT 1” analogue / digital
robot interface.
IMPORTANT: Do not keep the “RoboMAT 1” analogue / digital robot interface connected to the generator,
unless it is also powered by the automatic system.
Image 9
