OTC DTX-3000 AC/DC - Page 77

Spare parts list
77
DTX-2200-3000 AC/DC

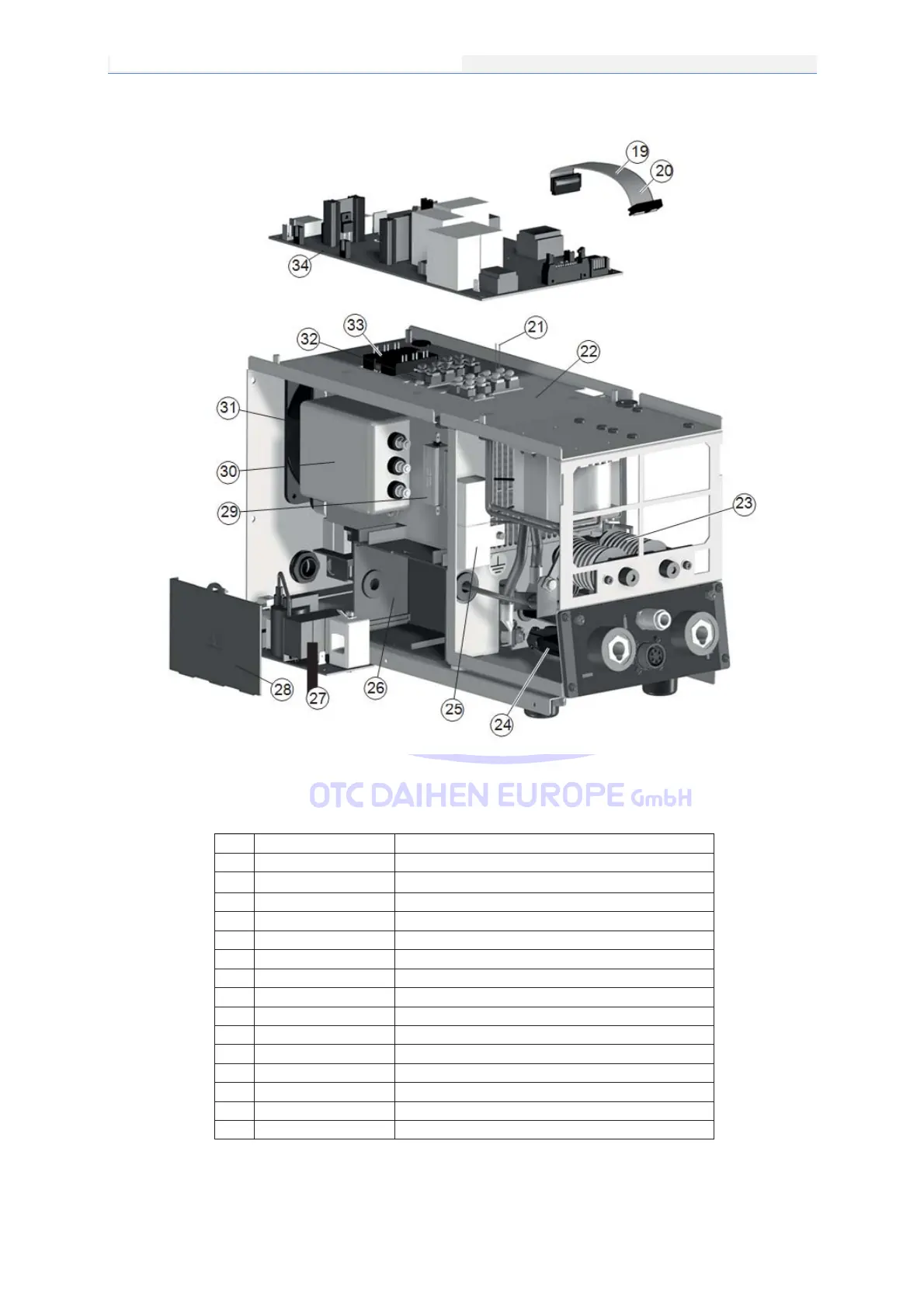

Pos. DTX-3000 AC/DC Description
19 413466 Auxiliary wiring
20 413518 RoboMat 1 wiring (only for DTX-3000 AC/DC R)
21 478867 Primary circuit thermistor
22 353052 Inverter PCB insulation
23 239989 HF transformer
24 376930 Torch filter with connector
25 427681 HF filter
26 352466 HF PCB box
27 377059 High frequency (HF) PCB
28 352468 HF PCB cover
29 457122 Secondary IGBT protection PCB resistor
30 376887 EMC Filter
31 486383 Fan motor
32 286046 Primary circuit IGBT
33 455508 Primary rectifier
