Stats Screen
From the Charge Controller screen, the <Next> soft key proceeds to the Charge Controller Stats
screen. This screen shows data accumulated since the system went online or since the last reset.

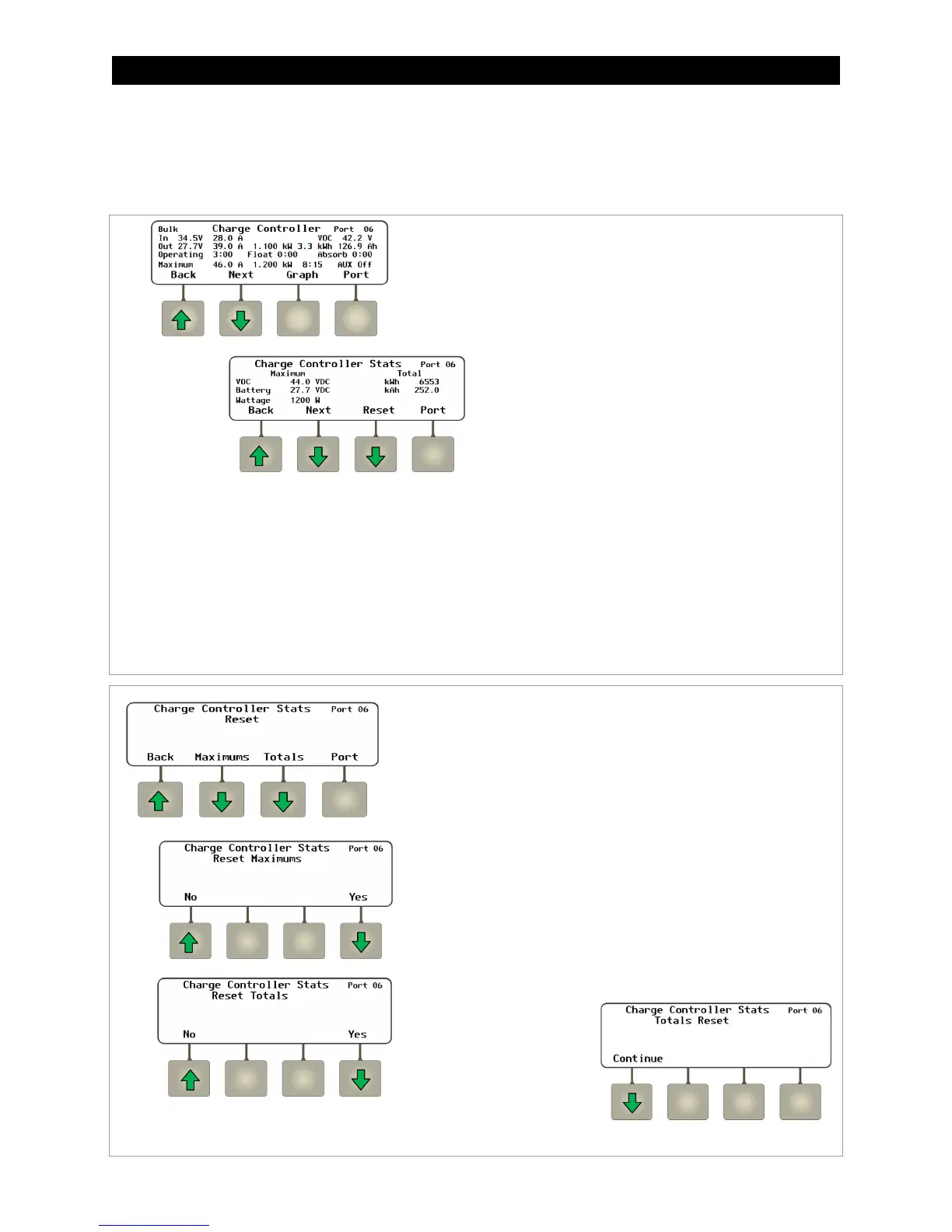

Figure 28 Stats Screen
Figure 29 Stats Reset Screens
Soft Keys:
<Next> proceeds to the Error, Datalog, and
Temps screens (see pages 38 and 39).
<Reset> proceeds to the Reset screens for the
items under Maximum and Total. (See Figure 29.)
<Back> returns to the previous screen.
<Port> cycles through each device connected to
the network.
Screen Items:
The Maximum statistics are not incremental. They
are updated only if a higher value is measured.

VOC
displays the highest measured V
oc
. (See the
VOC
reading on page 36 for the present V
oc
.)

Battery
displays the highest measured battery
voltage. (See the
Out
reading on page 36 for the
current battery voltage.)

Wattage
displays the highest measured wattage
harvested from the PV. (See the
Out
reading on
page 36 for the present wattage. See
Maximum
on page 36 for the highest wattage that day.)
The items under Total are incremental. These items
are updated daily with higher totals.

kWh
displays a historical accumulation of the
kilowatt-hours harvested by the controller. (See
the
Out
reading on page 36 for the daily
accumulation.)

kAh
displays a historical accumulation of the
kiloamp-hours used to charge the batteries.
(See the
Out
reading on page 36 for the daily
amp-hour accumulation.)
Soft Keys:

<
Maximums
> proceeds to the
Reset
screen for the
Maximum
statistics (see Figure 28).

<
Totals
> proceeds to the
Reset
screen for the
Total
statistics (see Figure 28.)

<
Back
> returns to the previous screen.

<
Port
> cycles through each device connected to the network.

<
No
> returns to the previous screen without resetting.

<
Yes
> proceeds to a
confirmation screen
after resetting the item
(see the example to
the right).

<
Continue
> returns
to the
Charge Controller
Stats
screen.
Screen Items:
The Reset screens allow the items in the Stats screen to be
reset to zero (using the <Yes> soft key). The items under
Maximum and Total can be reset independently. Until then, they
will continue to register higher numbers or greater accumulations.
