Error Screen
From the Charge Controller Stats screen, the <Next> soft key proceeds to the Charge Controller
Error screen. This screen displays fault conditions for the FLEXmax 100. If an item displays Y, the error
is active. Some errors accompany a controller shutdown; others simply report status. See the
Troubleshooting guide on page 57 for more information on all items.

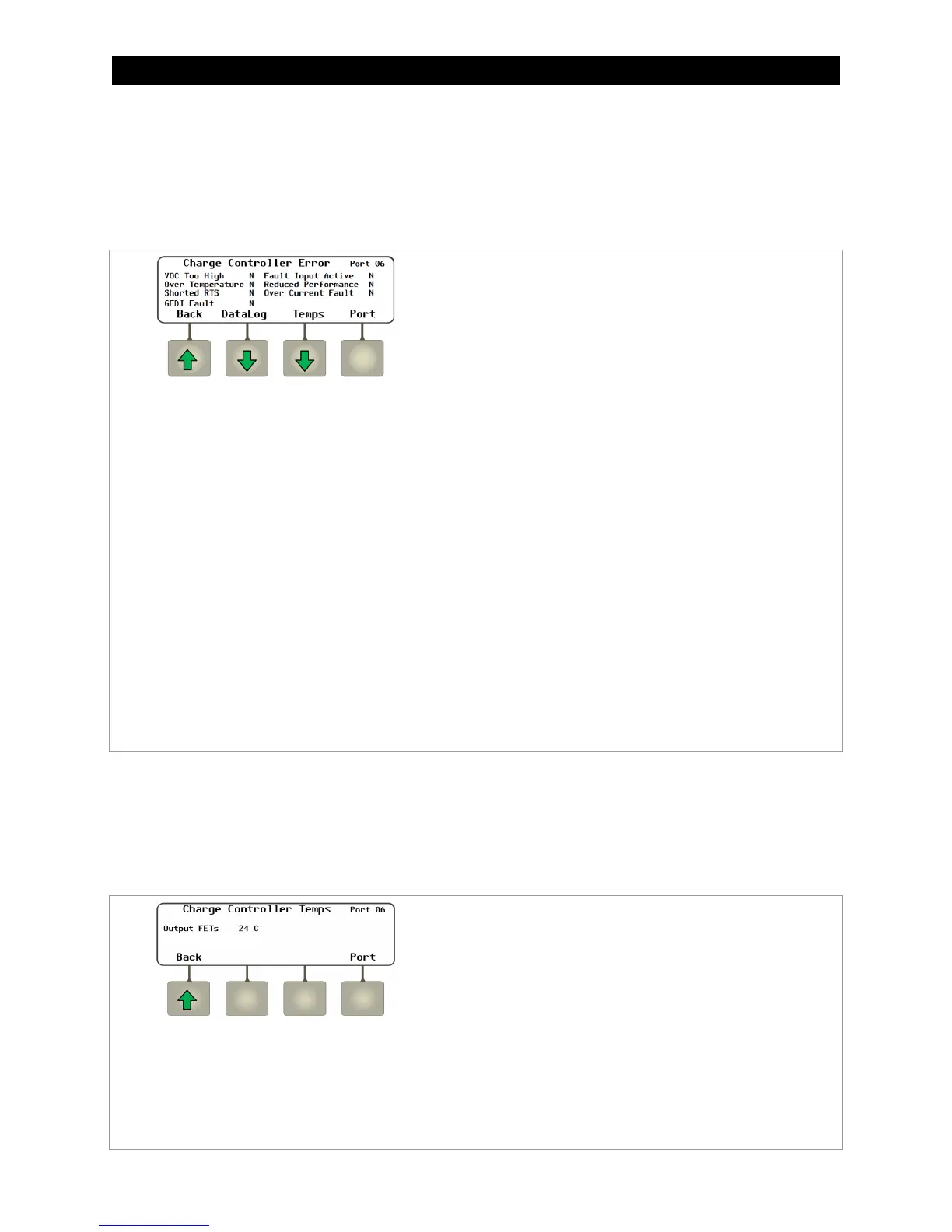

Figure 30 Error Screen
Temps Screen
From the Charge Controller Error screen, the <Next> soft key proceeds to the Charge Controller
Temps screen. This screen shows the internal temperature. The measurement is used for fan control,
temperature derating, or to trigger a shutdown in extremely hot temperatures. If any of these events
occur, this screen can be used to check the temperatures.
Figure 31 Temps Screen
Soft Keys:
<DataLog> proceeds to the Datalog screen (see page 39).
<Temps> proceeds to the Temps screen (see Figure 31).
<Back> returns to the previous screen.
<Port> cycles through each device connected to the network.
Screen Items:
VOC Too High
: The controller has shut down because the array V
oc
has exceeded its upper limit.
Upper limits: 24-volt system = 275 vdc, 36-volt system = 283 Vdc, 48-volt system = 290 Vdc
This error can clear automatically.
Over Temperature
: The FLEXmax 100 is too hot to operate and has shut down. This error can clear
automatically. See the temperature readings in Figure 31.
Shorted RTS
: The Remote Temperature Sensor (RTS) has malfunctioned. The controller will not shut
down, but it cannot compensate for temperature.
GFDI Fault
(accompanied by the
F
AULT
LED indicator): The GFDI circuit has shut down the charge
controller. See pages 15 and 30 for more information.
Fault Input Active
: The Rapid Shutdown terminals have detected an open circuit and shut down the
controller. This is not a controller error but a deliberate action. See pages 22 and 24 for more information.
This error requires a manual reset of the external Rapid Shutdown device as noted on page 25.
Reduced Performance
: The internal temperature sensor (see below) has failed. If a failure is detected,
the controller will operate with a maximum output of 20 Adc.
Over Current Fault
: The controller has shut down because more than 120 Adc was sensed flowing to the
batteries (or more than 80 Adc to the array). This requires a manual reset as described on page 57.
Soft Keys:
<Back> returns to the previous screen.
<Port> cycles through each device
connected to the network.
Screen Items:
Output FETs
The internal temperature as measured on the
charge controller’s Field Effect Transistor (FET) heatsink.
The list below shows the readings at which the FLEXmax
100 performs certain functions. See pages 10, 55, and 61.
Event Temperature (°C)
Over Temperature error 90
Output derates 70
Fan turns on 58
Fan turns off 50
