OutBack Power FLEXmax 100 User Manual

900-0209-01-00 Rev A 9
Installation
Standards and Requirements
Installations must comply with all national and local electrical codes. Professional installation is
recommended. See page 7 for qualifications of installers.
A FLEXmax 100 charge controller operating in unventilated or in other conditions above an ambient
temperature of 25°C (77°F) will have a derated power output. See page 61 for more information.
If damaged or malfunctioning, the FLEXmax 100 should only be serviced by qualified personnel.
Please contact the local renewable energy dealer/installer for assistance.
Dimensions

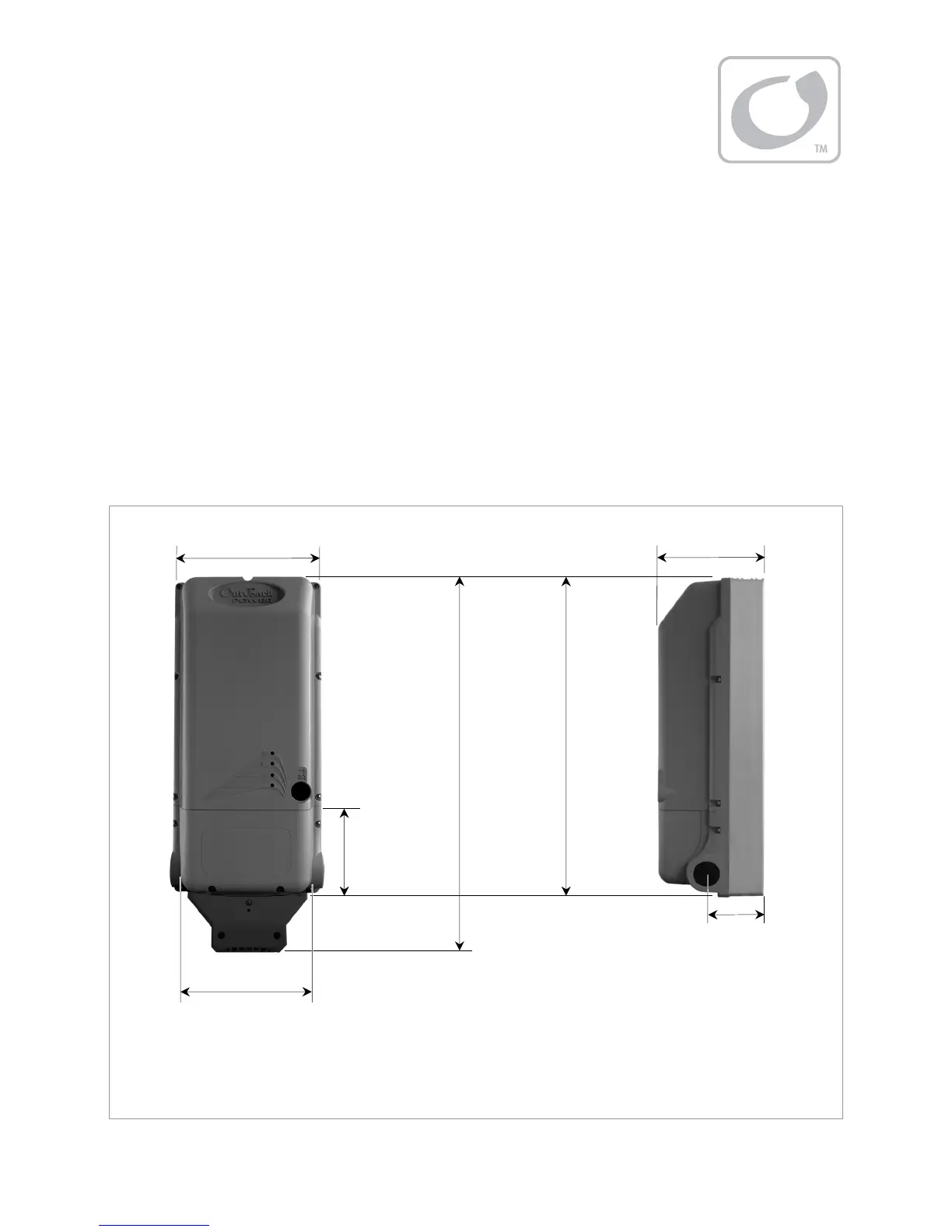

Figure 2 FLEXmax 100 Dimensions
Wiring
compartment
height
4.4” (11.2 cm)
Side Plugs:
3.27” (8.3 cm)
De
p
th 6.0”
(
15.2 cm
)
Height
18.6”
(47.2 cm)
Height
with fan
22.06”
(56 cm)
Bottom Plugs:
3.3”
(
8.4 cm
)
W
idth 8.8”
(
22.4 cm
)
Wiring compartment
opening width
6.9” (17.6 cm)
These openings are for 1” conduit
(1⅜” actual diameter)
