Status and Information
900-0209-01-00 Rev A
39
DataLog Screen
From the Charge Controller Error screen, the <DataLog> soft key proceeds to the Charge Controller
Datalog screen. This screen shows accumulated daily amp-hour and watt-hour statistics, as well as
maximum current, wattage, and maximum and minimum voltage figures. These maintain a continuous
daily log, up to 128 days, which can be recalled. One day can be displayed at a time.
IMPORTANT:
If two or more charge controllers are used in the same system and are started or
cleared on different days, their numeric dates will not be the same. This can lead to some
misunderstandings when looking back and comparing data between the two or more units.
A user looking back at day 12 on both units would find very different results.

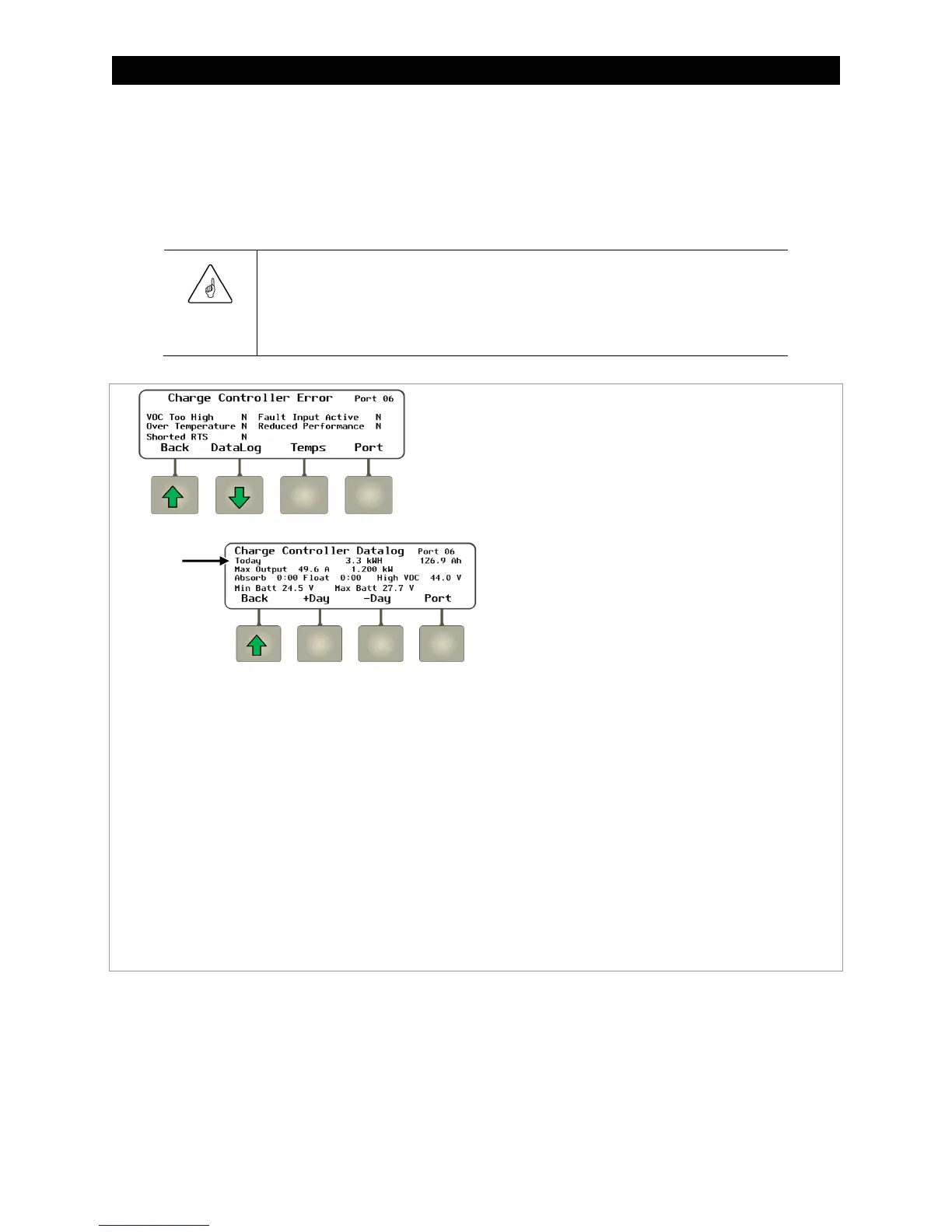

Figure 32 DataLog Screen
Soft Keys:
<+Day> advances the display forward by a single
day. If the display reads Today, it does nothing.
<–Day> advances the display backward by a
single day and will display the selected date.
It extends back by 128 days before stopping.
<Back> returns to the previous screen.
<Port> cycles through each device connected to
the network.
Date
Screen Items:
The upper left corner shows the date of the
selected
Datalog
screen. (The preset
Datalog
screen reads
Today
.) To the right,
this line also displays the kilowatt-hours and
amp-hours accumulated that day.
Max Output
displays the maximum current
and wattage recorded that day. (See the
Maximum
reading on page 36.)
Absorb
The amount of time the Absorbing
timer ran that day. (See the
Absorb
timer on
page 36.)
Float
The amount of time the Float timer ran
that day. (See the
Float
timer on page 36.)
High VOC
displays the highest open-circuit
voltage (V
oc
) recorded that day.
Min Batt
displays the lowest battery voltage
recorded that day.
Max Batt
displays the highest battery voltage
recorded that day.
To Next Page
