1.3.2 Risk of injury from pressurised
components
!
Only carry out work on the heating or cooling
circuit when the system is depressurised.
!
Adhere to the permissible operating pressures
during operation.
1.3.3 Availability of the operating instructions
Every person who works with this product must have read
and apply this manual and all applicable instructions.
The instructions must be available at the place of use of
the product.
!
Pass on these instructions and all applicable
instructions to the operator.
2. Technical description
2.1 Design
1
2
3
4
5

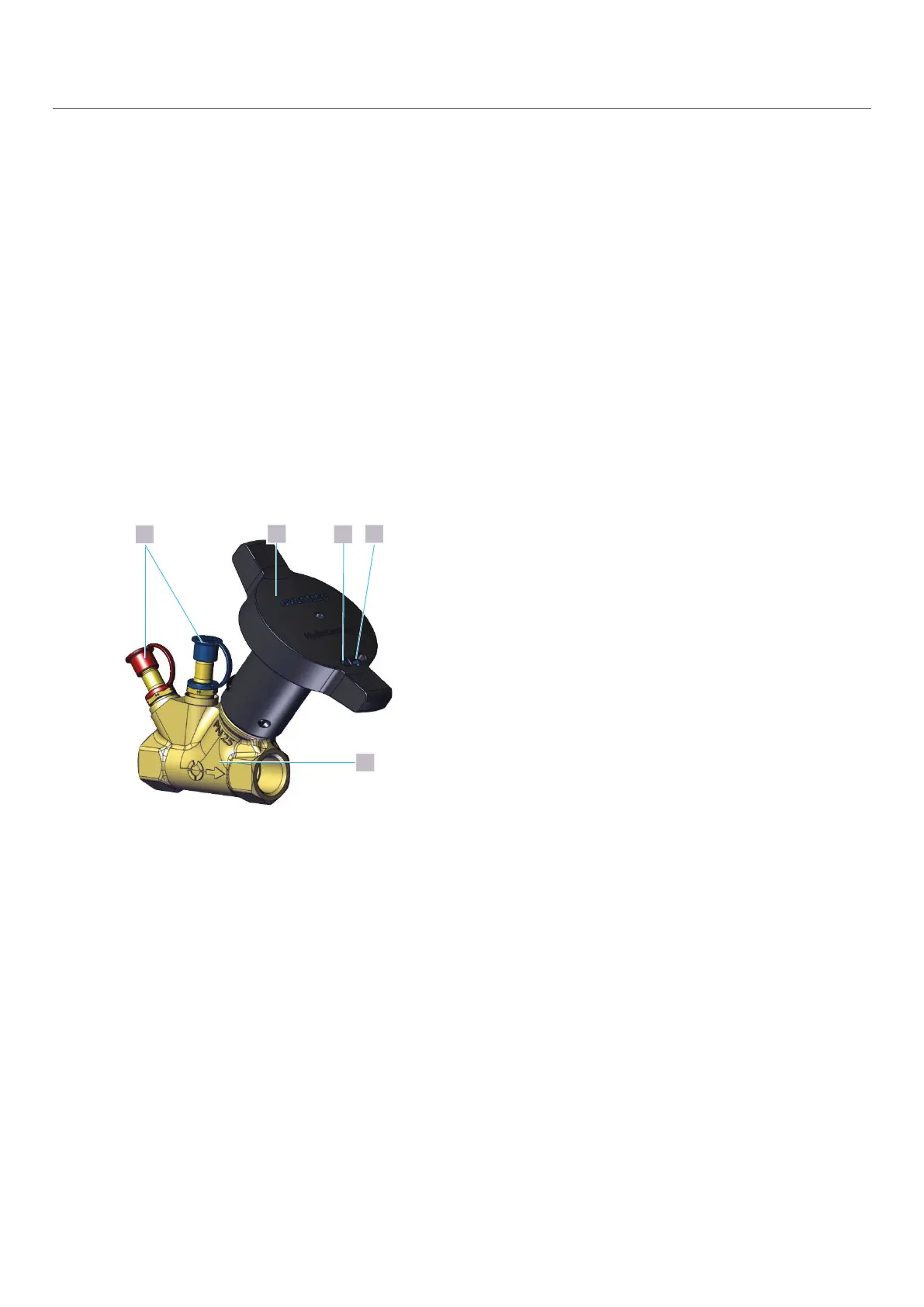

Fig. 1: Design HydroControlM
1
HydroPort auxiliary valve
2
Handwheel
3
Basic setting scale
4
Fine setting scale
5
Body
