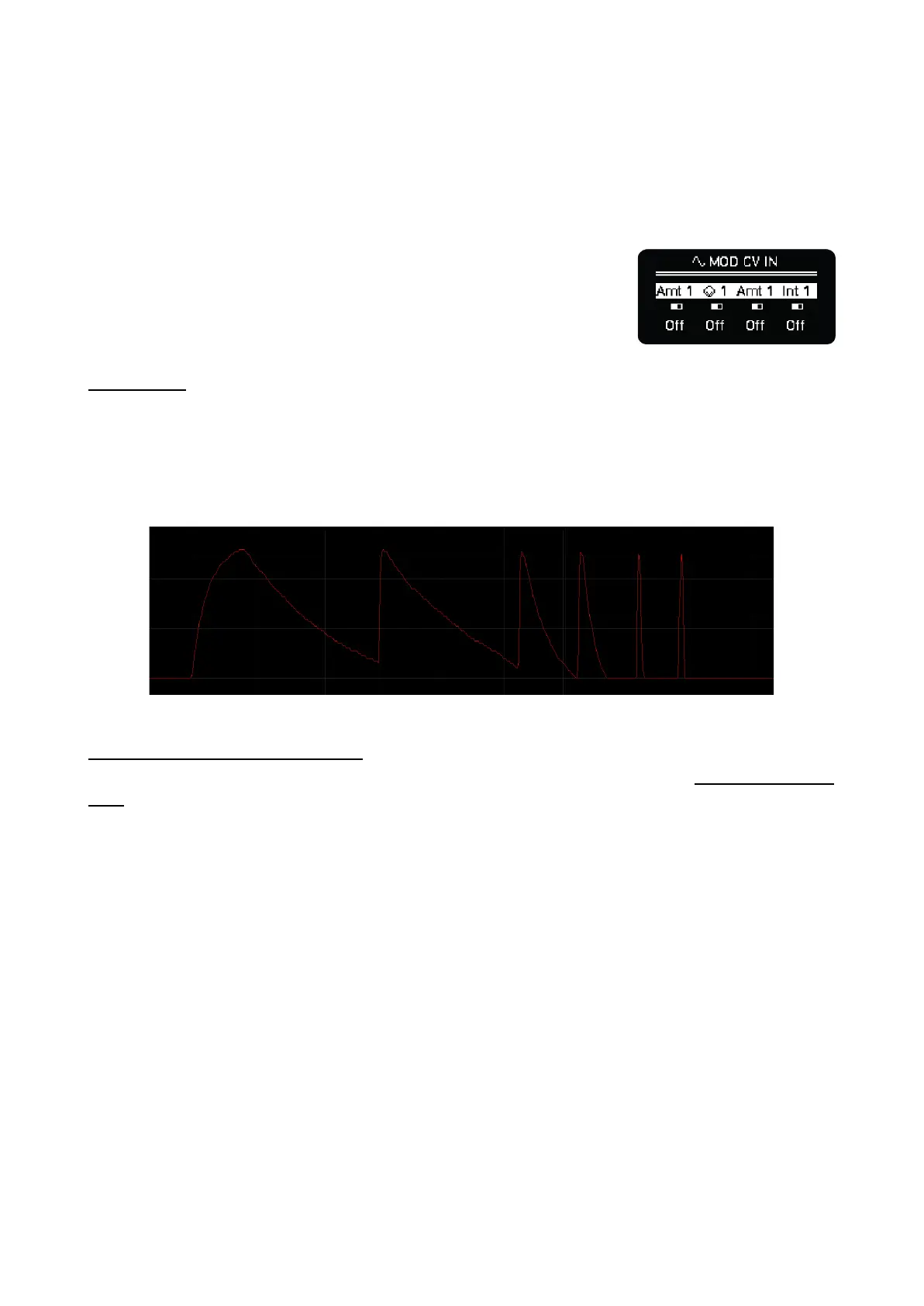

MOD CV IN
OXI One has one CV input (which also acts as Start-Stop / Reset In) that can be routed to either
internal parameters or be sent to external CC.
Double tap the MOD button to enter this menu. You can configure 2
internal and 2 external destinations PER SEQUENCER. As always,
press SHIFT and Click any encoder to switch between parameter
pages.
CV TO MIDI
In the following graph you can see an example of how an analog AD envelope is smoothly translated
into a CC (Mod Wheel in this case) parameter. Complex modulations generated in a modular system
can be translated to MIDI for a tight modular to MIDI devices integration.
Only Positive voltages will be converted, negative values will be clipped to zero.
Analog envelope to MIDI CC
CV AS INTERNAL MODULATION
Another interesting use of the CV input is modulating internal parameters. The internal destination
table is the same as for the LFOs and the MOD lanes.
There are 2 internal destinations, the modulation amount can be independently set per destination.
It accepts both positive and negative voltages for bipolar modulation.
