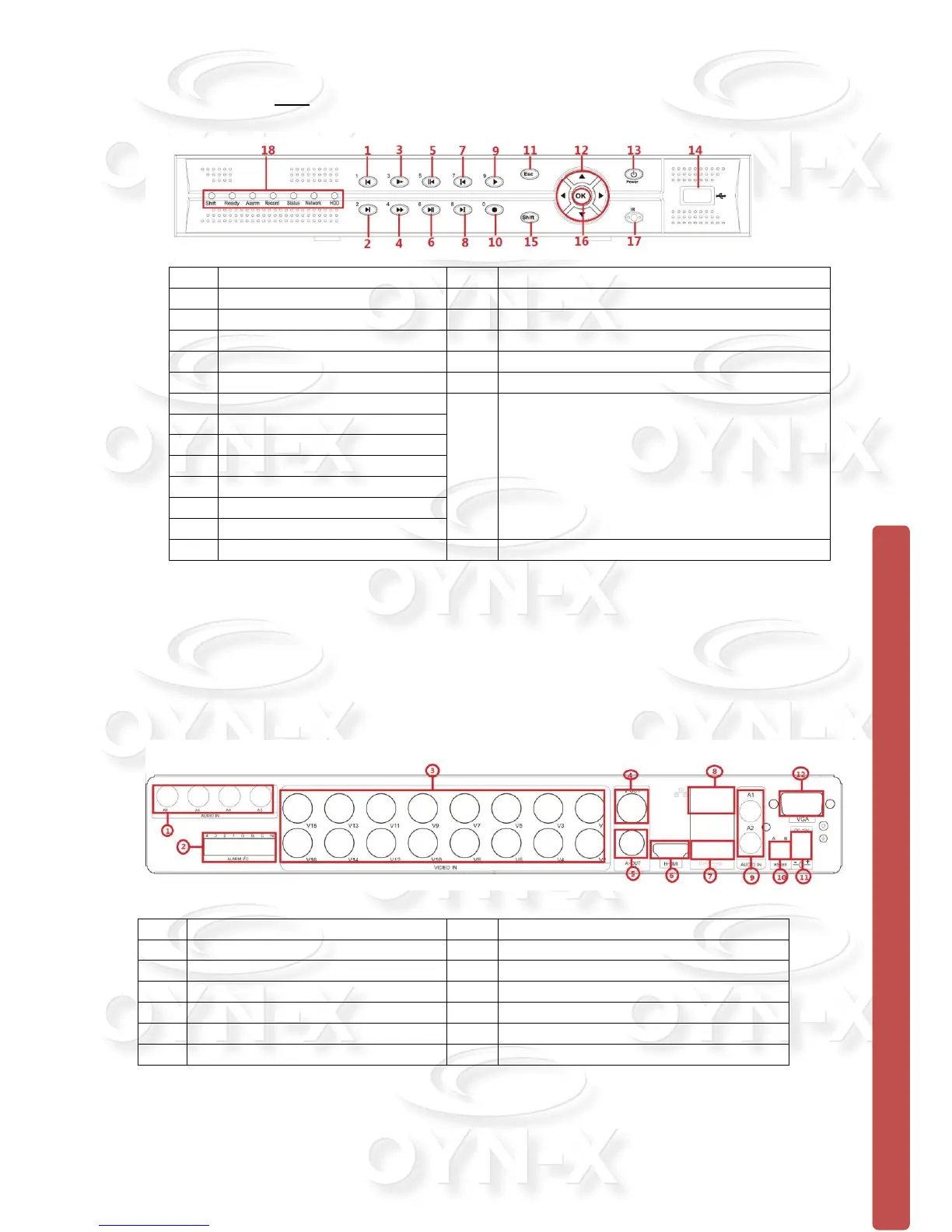

1.6.2 HDA DVR with Alarm Inputs
No.
Funciton
No.
Function
1
Play the previous file
13
Power switch
2
Play the next file
14
USB interface
3
Slow play
15
Function switch
4
Play fast
16
Confirm
5
Pause playback
17
Remote control receiver
6
Pause
18
Shift Indicator
Systems running indicator
Alarm indicator
Record indicator
External operation indicator
Network indicator
HDD indicator
7
Play previous frame
8
Play next frame
9
Play the file
10
Control the record
11
Cancel
12
Direction Control
19
Main menu
1.7 Rear Panel
Please note: Rear panel diagram below may differ from the product you are using.
Please only use as a general reference.
No.
Function
No.
Function
1
Audio input
7
USB Port
2
Alarm input
8
Network port (Ethernet)
3
Video input (BNC)
9
Audio input
4
Video output
10
RS485
5
Audio output
11
Power (Power adapter input)
6
HDMI port
12
VGA Port (Display port)
