Proceed to the next section to begin wiring the system.
CAUTION!
Always apply power to the XMO2 transmitter
immediately after installation, especially if it
is mounted outdoors or in a humid area.
2.3.1 Wiring the XMO2 transmitter
This section describes how to make all necessary electrical
connections to the XMO2 system.

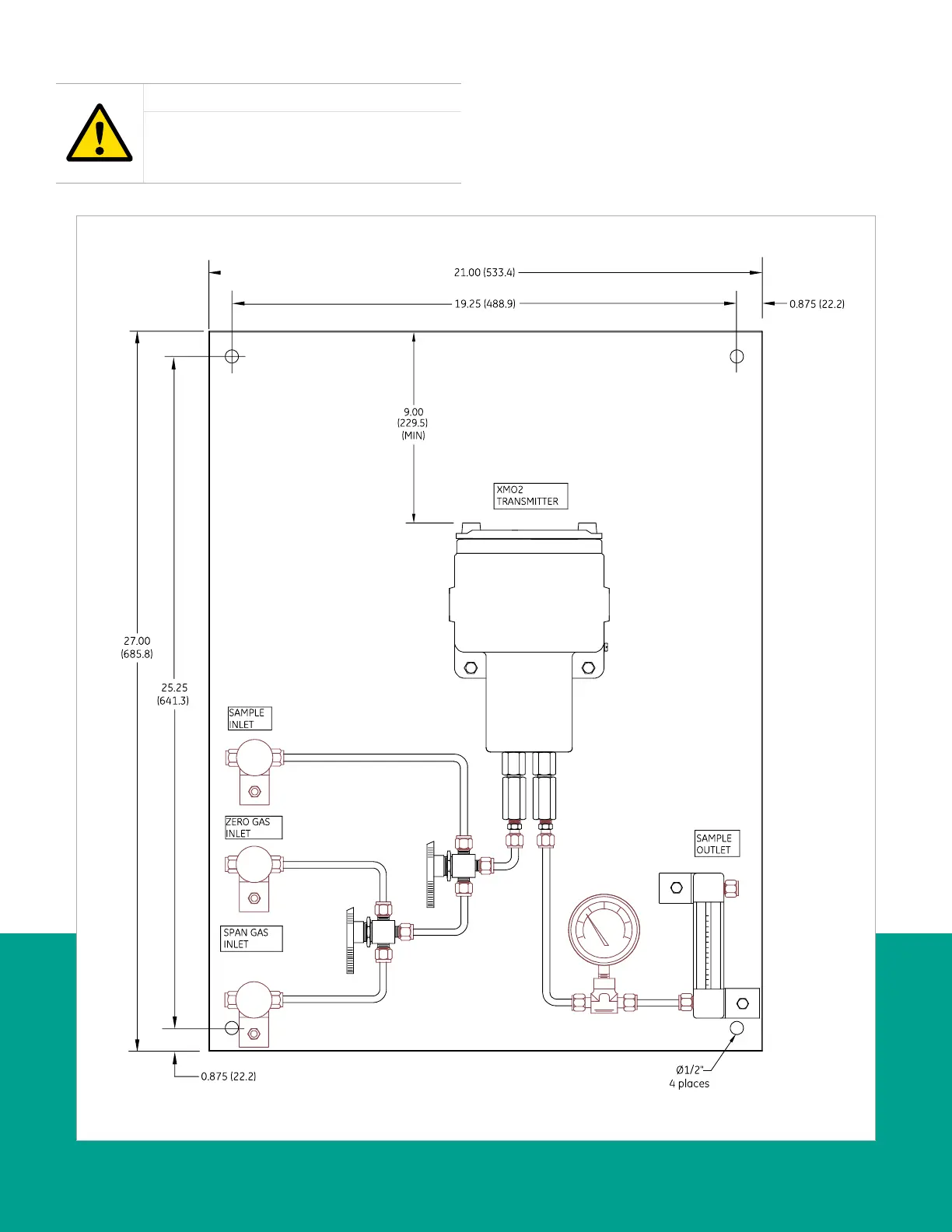

Figure 5: Basic XMO2 sample system (ref. dwg #732-164)
7
