E.2 EMI filter board
For CE compliance, an EMI filter board has been added to the XMO2 (see Figure 88 below). This board is connected internally
to terminal block TB1. The power and analog output connections are now made to terminal block TB3 on the EMI filter board.
The RS232 digital output connections are made to terminal block TB2.
CAUTION!
Do not make any connections to unassigned or unused terminals.

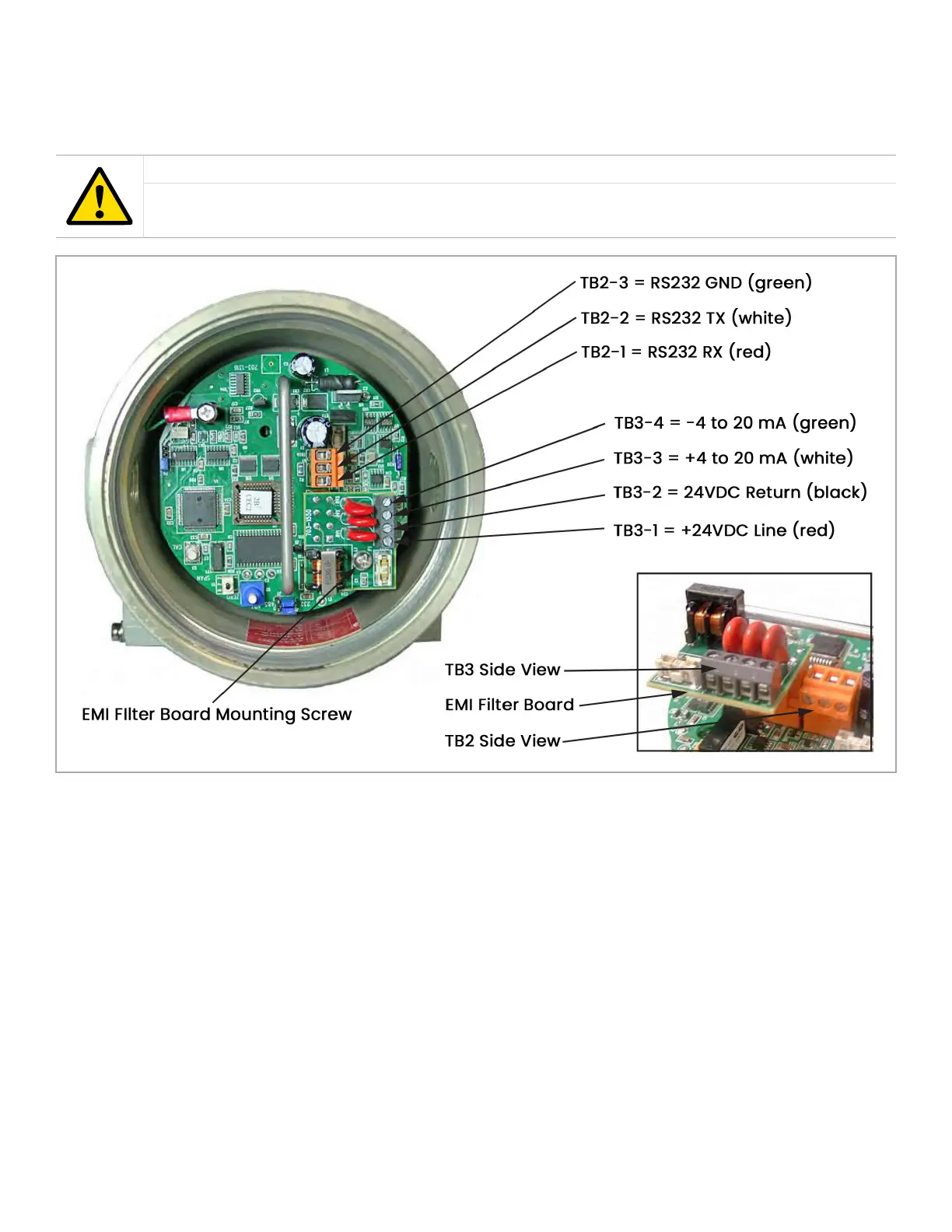

Figure 88: XMO2 with EMI filter board - wiring connections
