Make sure to use the pair of supplied RF coaxial cables
Use the pair of supplied RF coaxial cables only when you make connections to the unit through its RF IN and RF OUT terminals. Striping
may appear and disrupt images on the TV if you use different cables for connection.
Using a 21-pin Scart cable
y You can use a variety of Q Link functions by connecting the unit to a Q Link compatible television (➡ 44).
y You can enjoy high-quality viewing by connecting the unit to an RGB compatible television (➡ 97).
Required setting
“AV1 Output” in the Setup menu (➡ 76)
y Before connection, turn off all equipment and read the appropriate operating instructions.
y Select the connection pattern that matches your environment from pattern A–B. Confi rm connections not listed below with your
dealer.
y Refer to “Additional connections” (➡ 80) for connection using other terminals and connection with other equipment.
When the unit is not to be used for a long time
To save power, unplug it from the household mains socket. This unit consumes a small amount of power, even when it is turned off.
[approx. 2 W (Power Save mode)]
When “Power Save” is set to “On”, the “Quick Start” function does not work.

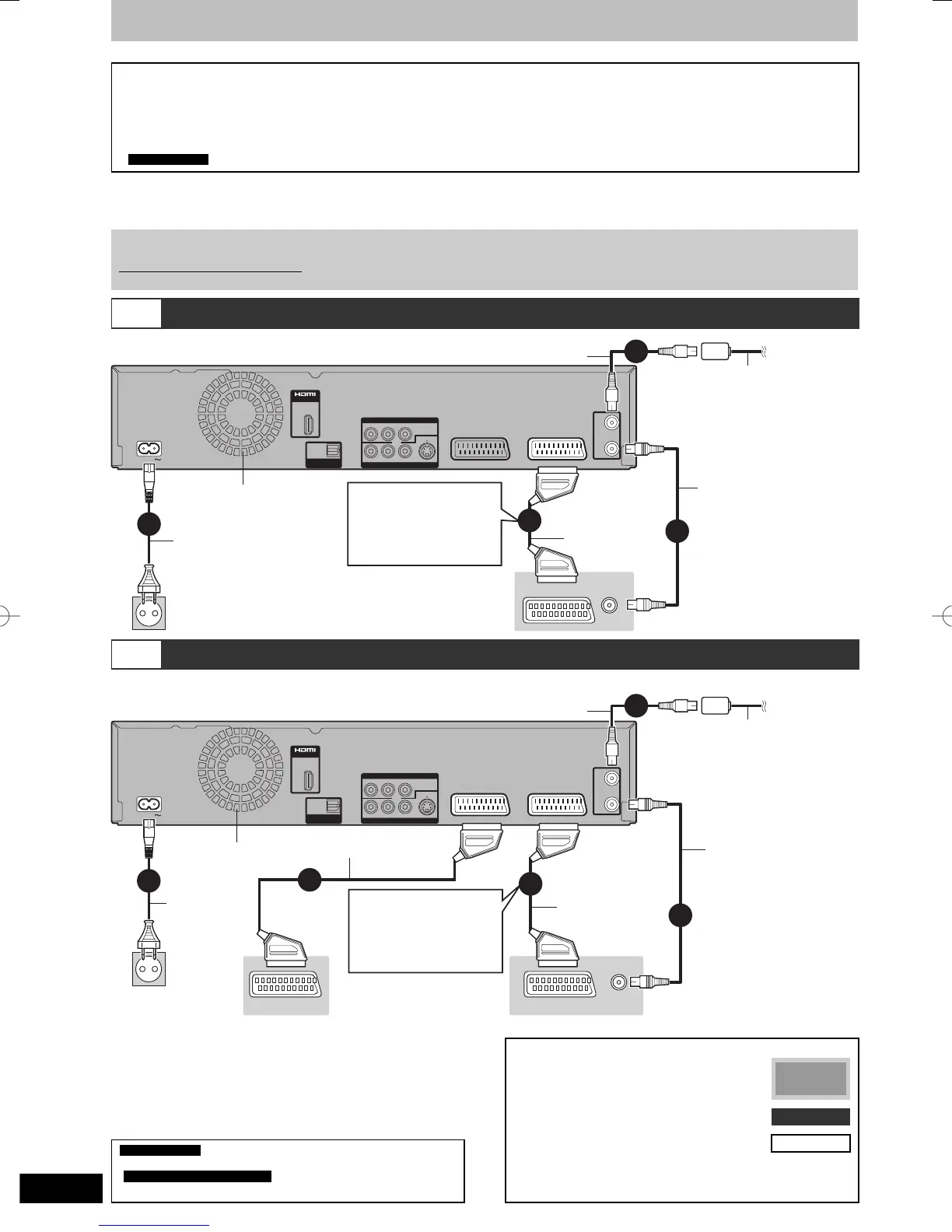

A
Connecting a television
RF
IN
RF
OUT
AV 1 (TV)AV 2 (EXT)
AC IN
AV OUT
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
S VIDEO
VIDEO
P
RPBY
R-AUDIO-L
COMPONENT VIDEO OUT
OUT
VHF/UHF
RF IN
AV
4
3
1
2
To the aerial
Aerial cable
RF coaxial cable
(included)
Television’s rear panel
Fully wired
21-pin Scart
cable
To household mains socket
(AC 220 to 240 V, 50 Hz)
AC mains lead
(included)
Connect only after all other
connections are complete.
Cooling fan
This unit’s rear panel
Connecting a
terminal other than
the 21-pin Scart
terminal (➡ 11, 82)
RF coaxial cable
(included)
B
Connecting a television and digital satellite receiver or analogue decoder*
* Information about the Decoder is for Italy, Spain and Switzerland only.
RF
IN
RF
OUT
AV 1 (TV)AV 2 (EXT)
AC IN
AV OUT
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
S VIDEO
VIDEO
P
RPBY
R-AUDIO-L
COMPONENT VIDEO OUT
OUT
VHF/UHF
RF IN
AVAV
5
3
2
4
1
Digital satellite receiver or
analogue decoder’s* rear panel
To the aerial
Aerial cable
RF coaxial cable
(included)
Television’s rear panel
Fully wired 21-pin
Scart cable
To household mains
socket
(AC 220 to 240 V, 50 Hz)
AC mains lead
(included)
Connect only
after all other
connections are
complete.
Cooling fan
This unit’s rear panel
Connecting a
terminal other than
the 21-pin Scart
terminal (➡ 11, 82)
Fully wired 21-pin Scart cable
RF coaxial cable
(included)
STEP 1 Connection
Required setting
“AV2 Input” and “AV2 Connection
(
For Italy, Spain and Switzerland
)” settings in the Setup menu
(➡ 76)
Connect the unit directly to the television
If you connect the unit through an AV selector
or video cassette recorder to the television,
video signal will be affected by copyright
protection systems and the picture may not be
shown correctly.
DO NOT
Television
K
VCR
K
This unit
y When connecting to a television with a built-in VCR
Connect to the input terminals on the television side if there are
both television and VCR input terminals.
RQT9090-LDMR-EX98VEC-EGen.indb10RQT9090-LDMR-EX98VEC-EGen.indb10 2008/04/3021:54:382008/04/3021:54:38
