RQT9090
Additional connections
HDD/DVD output and HDD/DVD/VHS output
The unit has HDD/DVD/VHS common out terminals and HDD/DVD priority out terminals.
HDD/DVD/VHS common out
y For HDD/DVD/VHS common out terminals, both HDD/DVD and VHS signals can be
output, e.g. RGB or composite video.
HDD/DVD priority out
This is the dedicated terminal to enjoy pictures played on HDD/DVD in higher picture
quality, e.g. HDMI or component video.
y The HDD/DVD priority out terminals can also output the VHS signal.
However this is not possible during HDD/DVD recording or HDD/DVD timer recording.
AV OUT
AV 1 (TV)
RF
IN
RF
OUT
OUT
VIDEO
COMPONENT VIDEO OUT
R-AUDIO-L
S VIDEO
YP
B
P
R
AV 2 (EXT)
OPTICAL
DIGITAL AUDIO OUT
(
PCM/BITSTREAM
)
HDD/DVD/VHS common out
HDD/DVD priority out

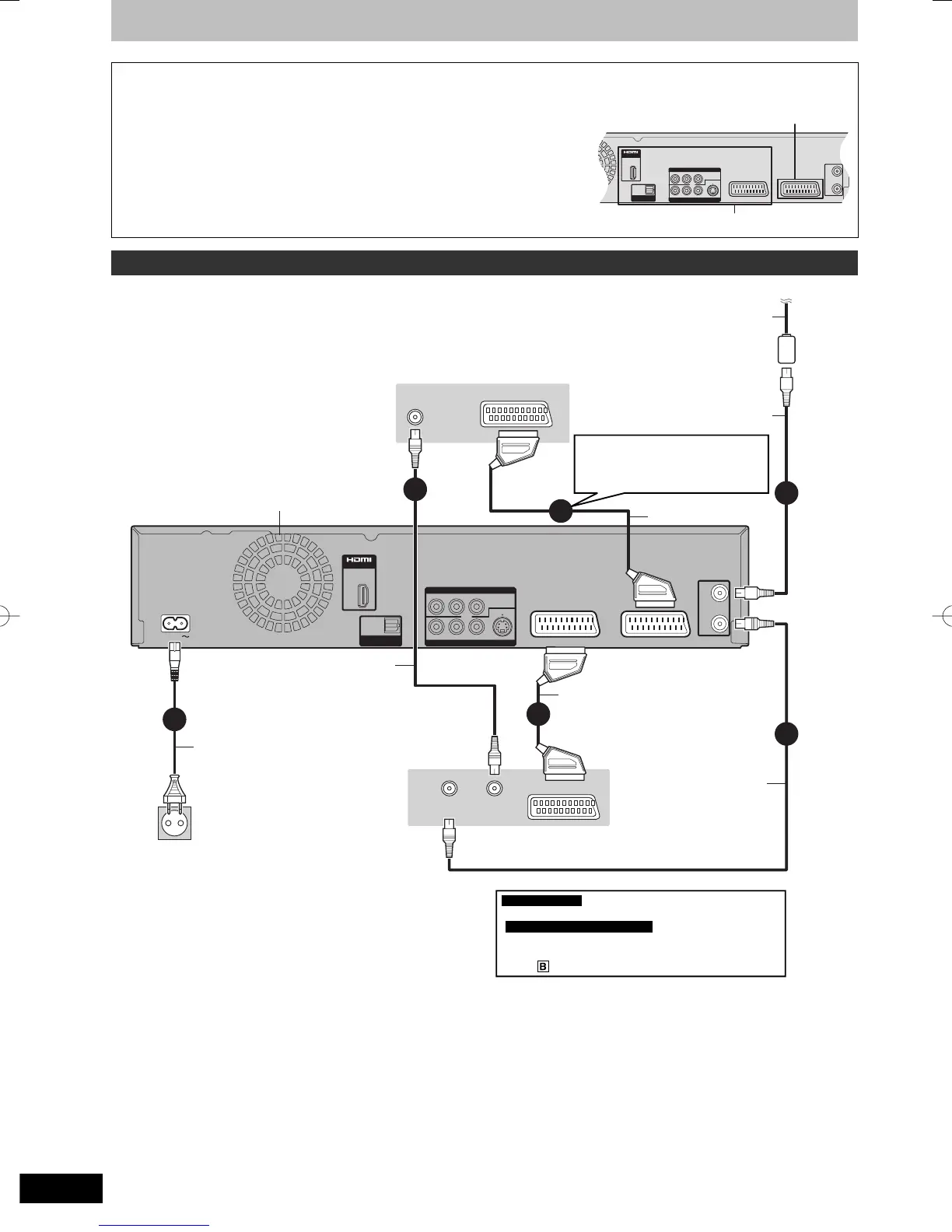

Connecting a television and VCR
RF
IN
RF
OUT
AV 1 (TV)AV 2 (EXT)
AC IN
AV OUT
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
S VIDEO
VIDEO
P
RPBY
R-AUDIO-L
COMPONENT VIDEO OUT
OUT
AV
VHF/UHF
RF IN
VHF/UHF
RF IN
AV
RF OUT
3
5
6
4
2
1
To the aerial
RF coaxial cable
(included)
RF coaxial cable
Fully wired 21-pin
Scart cable
Television’s rear panel
Connecting a terminal other
than the 21-pin Scart
terminal (➡ 11, 82)
VCR’s rear panel
This unit’s rear panel
Cooling fan
AC mains lead
(included)
Connect only after all other
connections are complete.
To household mains socket
(AC 220 to 240 V, 50 Hz)
Aerial cable
Fully wired 21-pin
Scart cable
Required setting
“AV2 Input” and “AV2 Connection
(
For Italy, Spain and Switzerland
)” settings in the Setup
menu (➡ 76)
Connect the unit directly to the television
(➡ 10, )
RF coaxial cable
(included)
