Opening the front panel
Press down on the part
with your fi nger.

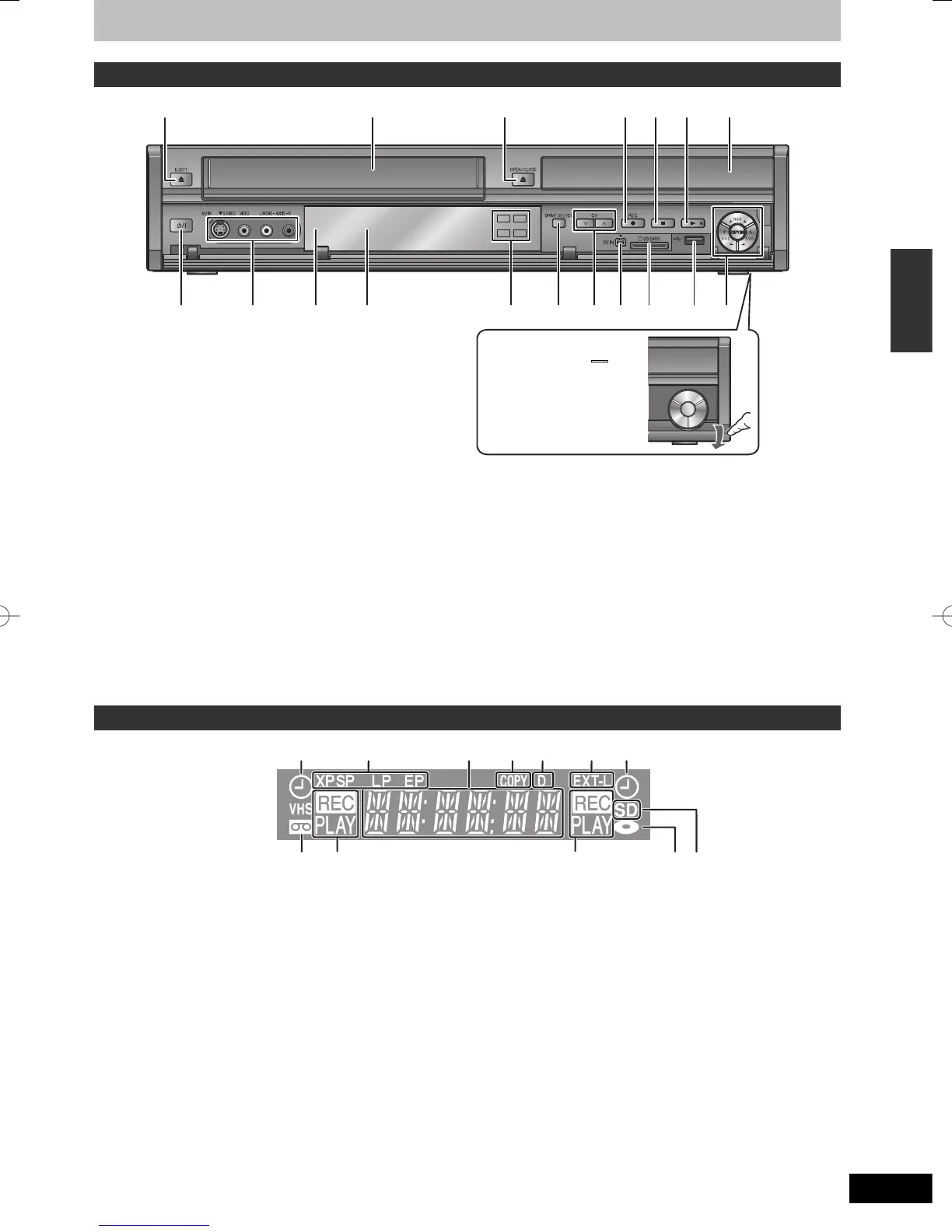

Control reference guide
Main unit
1 Cassette eject (➡ 17)
2 Cassette compartment (➡ 17)
3 Open/close disc tray (➡ 17)
4 Start recording/Specify a time to stop recording (➡ 20)
5 Stop (➡ 19)
6 Start play (➡ 19)
7 Disc tray (➡ 17)
8 Standby/on switch (
8
) (➡ 18)
Press to switch the unit from on to standby mode or vice versa. In
standby mode, the unit is still consuming a small amount of
power.
9 Connection for VCR, camcorder etc. (➡ 28)
bk Remote control signal sensor
bl Display (➡ below)
bm HDD/DVD/SD/VHS drive indicator (➡ 19)
Lights when the HDD, DVD, SD or VHS drive is selected.
bn DRIVE SELECT (➡ 19, 20)
Drive changes each time you press [DRIVE SELECT].
bo Channel select (➡ 18)
bp Connection for digital video (DV) camcorder (➡ 28)
bq SD card slot (➡ 17)
br USB port (➡ 17)
bs One Touch Copying operation (➡ 56, 57)
The unit’s display
1Timer recording indicator (
z
) (➡ 21)
On:
When a timer recording programme is registered and a
recordable disc or video cassette is inserted
Flashes:
When the unit cannot record a timer recording programme
(e.g., there is no disc or video cassette, etc.)
2Recording mode indicator (➡ 24)
3Main display
y Current time
y Disc recording and play counter
y VHS recording and play counter
y Miscellaneous messages, etc.
4Copying indicator
5 Digital broadcast indicator
Lights when the unit is receiving digital broadcast or TV Guide
data.
6 Linked timer recordings with external equipment indicator (➡ 27)
7 Tape indicator
8 Operation status
9 Disc indicator
bk SD card slot indicator
Rear panel terminals (➡ 10, 11, 80, 81, 82, 83)
