Additional connections

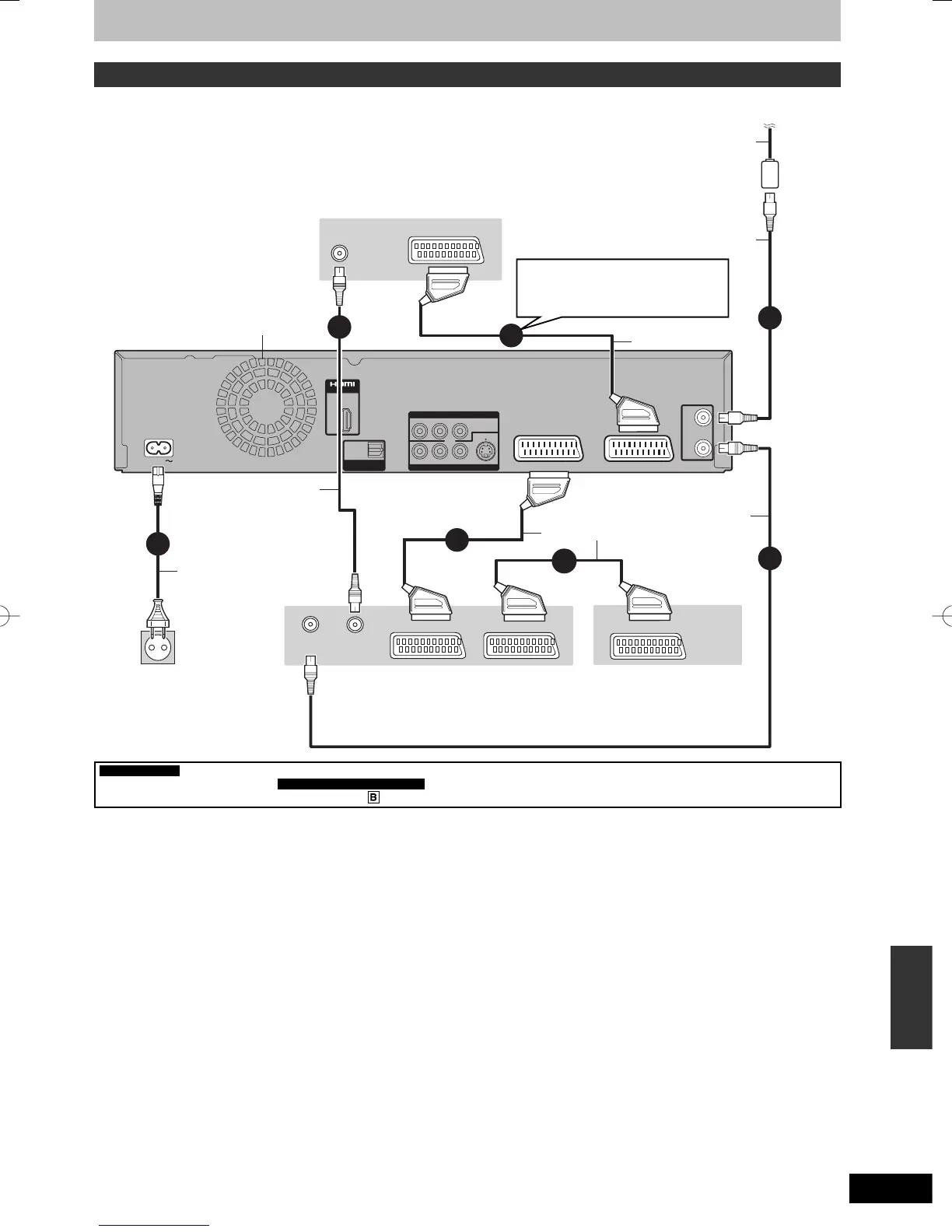

Connecting a television and VCR, digital satellite receiver or analogue decoder*
* Information about the Decoder is for Italy, Spain and Switzerland only.
RF
IN
RF
OUT
AV 1 (TV)AV 2 (EXT)
AC IN
AV OUT
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
S VIDEO
VIDEO
P
RPBY
R-AUDIO-L
COMPONENT VIDEO OUT
OUT
AV
VHF/UHF
RF IN
VHF/UHF
RF IN
AV
RF OUT
AV
AV
7
4
3
6
5
2
1
RF coaxial cable
(included)
RF coaxial cable
Fully wired
21-pin Scart cable
Television’s rear panel
Connecting a terminal other
than the 21-pin Scart terminal
(➡ 11, 82)
VCR’s rear panel
This unit’s rear panel
Aerial cable
Fully wired 21-pin
Scart cable
Digital satellite receiver or
analogue decoder’s* rear
panel
To the aerial
Cooling fan
AC mains lead
(included)
Connect only after all other
connections are complete.
To household mains socket
(AC 220 to 240 V, 50 Hz)
RF coaxial cable
(included)
Required setting
“AV2 Input” and “AV2 Connection (
For Italy, Spain and Switzerland
)” settings in the Setup menu (➡ 76)
Connect the unit directly to the television (➡ 10, )
