Communication
FPΣ User's Manual
206

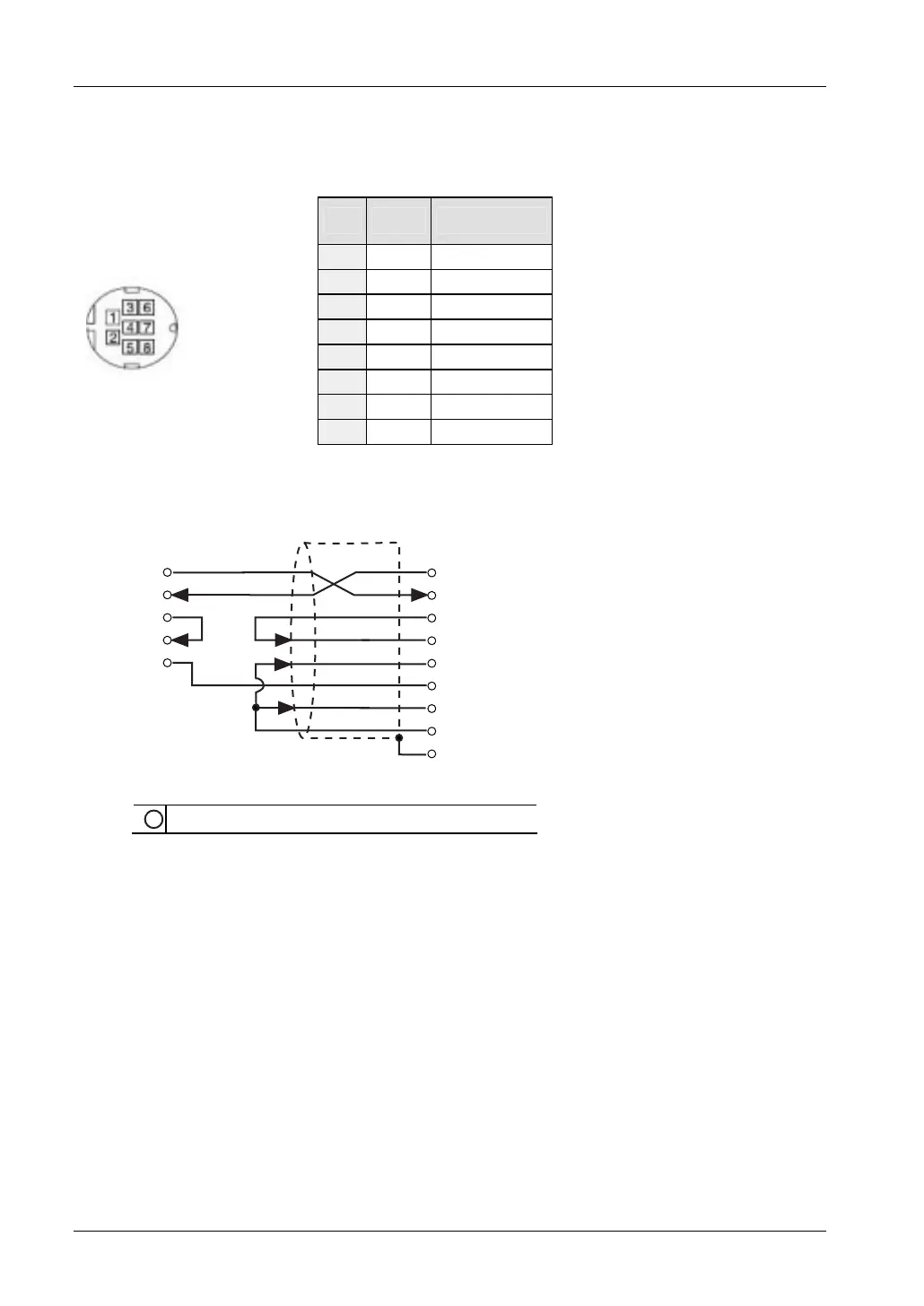

A100/A200 COM port
Please make the connection using a special RS232C cable available for the Micro-
Imagechecker (order no. ANM81303).
Pin Name Cable color
1 TXD Red
2 RXD White
3 RTS Black
4 CTS Yellow
5 DSR Blue
6 GND Green
7 CD Brown
A100/A200 COM port
8 DTR Gray
Wiring diagrams
• Using the 1-channel RS232C type communication cassette (FPG-COM1):
ANM81303
SG
SD
RD
RS
CS
TXD
RXD
RTS
CTS
DRS
GND
DCD
DTR
1
2
3
4
5
6
7
8
9
Left: FPΣ, right: Micro-Imagechecker
1
Shield (housing)
