FPΣ User's Manual
8.6 Program Controlled Communication
207

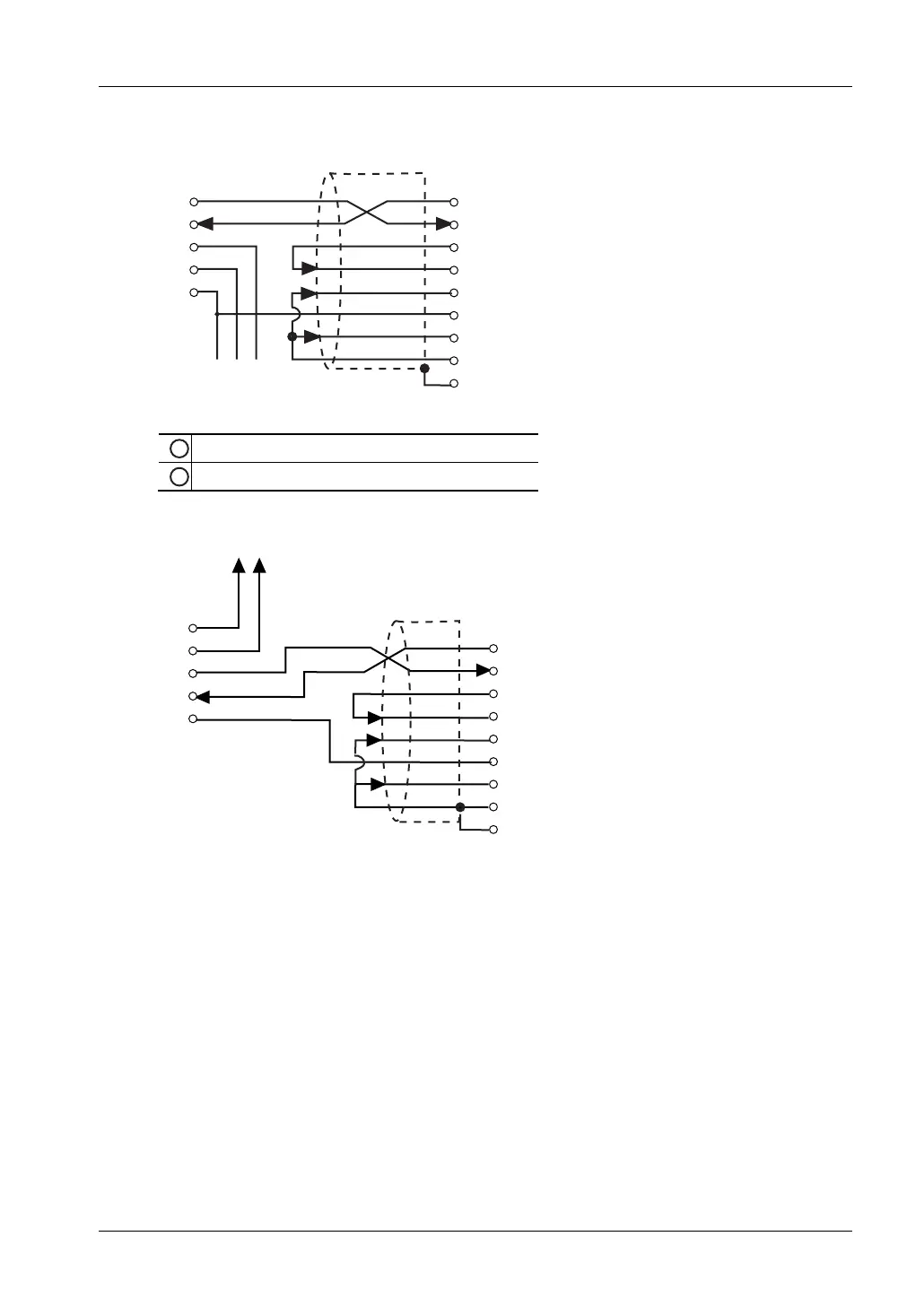

• Using the 2-channel RS232C type communication cassette (FPG-COM2):
ANM81303
TXD
RXD
RTS
CTS
DRS
GND
DCD
DTR

SG
S1
R1
S2
R2

1
2
3
4
5
6
7
8
9
Left: FPΣ, right: Micro-Imagechecker
1
Shield (housing)
2
To second external device
• Using the 1-channel RS485 and 1-channel RS232C combination type communication
cassette (FPG-COM4):
ANM81303
TXD
RXD
RTS
CTS
DRS
GND
DCD
DTR

SG
+
-
SD
RD
1
2
3
4
5
6
7
8
9
Left: FPΣ, right: Micro-Imagechecker
