FPΣ User's Manual
3.2 Input and Output Specifications
25

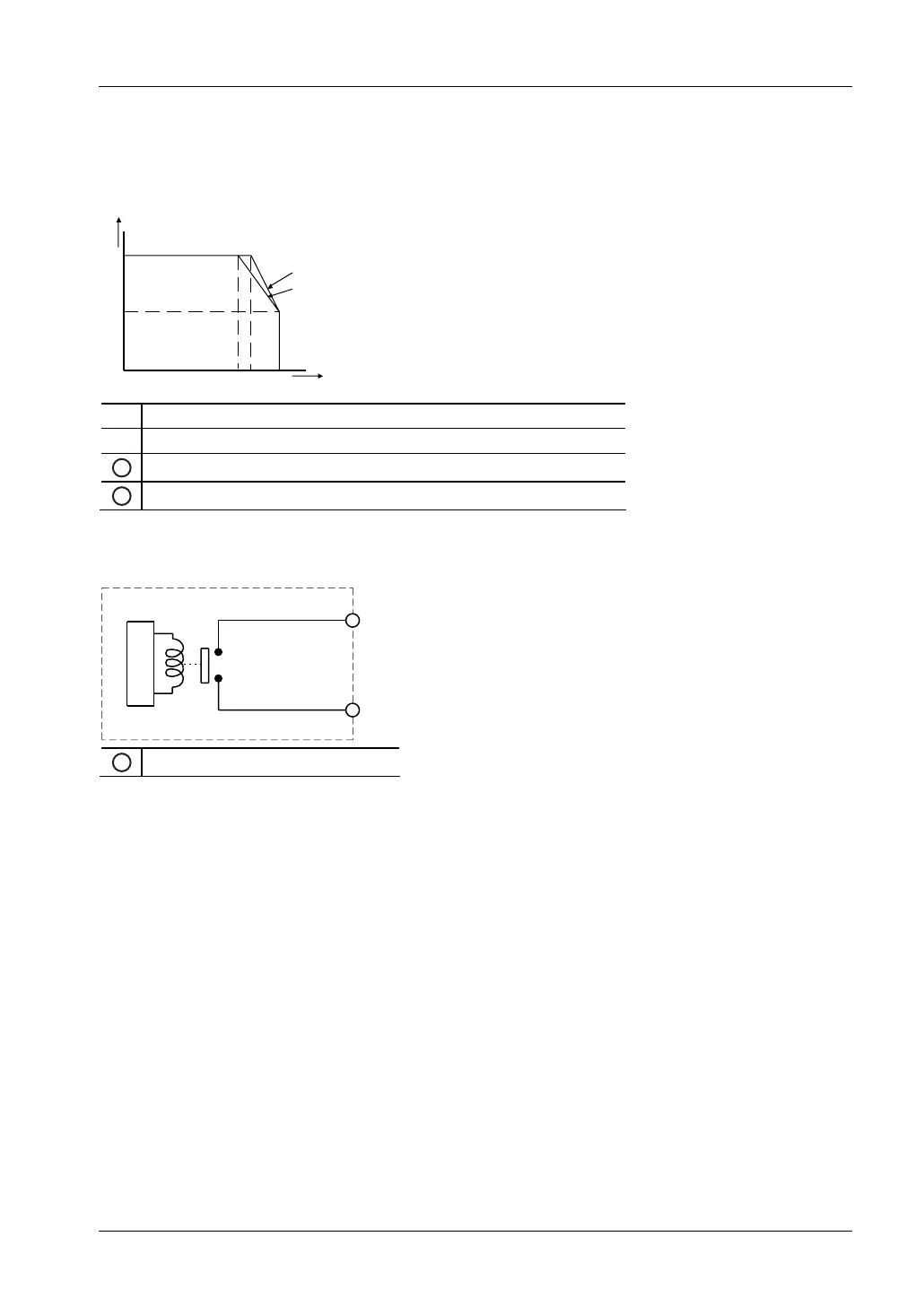

Limitations on the number of output points which are simultaneously TRUE
Keep the number of output points per common which are simultaneously TRUE within the
following range as determined by the ambient temperature.
[C24]
8
4
46 48 55


x
y
x
Ambient temperature [°C]
y
Number of points per common which are simultaneously TRUE
1
At 24V DC
2
At 26.4V DC
Internal circuit diagram
C24:
Yn
COM

1
Internal circuit
