Panasonic KX-TDA30

1.30 Networking Features
372 Feature Guide
3. QSIG Port Setting [Monitored PBX]
ISDN-QSIG (PBX Direct Connection)
Each QSIG port of a BRI or PRI card that will be used to transmit extension status information must be
set to do so through system programming. Even if a port is set to not transmit information, it will still
receive information from other PBXs.
→ 2.7.14 [1-1] Slot—BRI Port—ISDN CO—Networking Data Transfer
→ 2.7.16 [1-1] Slot—PRI Port (KX-TDA100/KX-TDA200/KX-TDA600 only)—CO Setting—Networking
Data Transfer
Set the transmission setting for each port according to the layout of your network, so that extension
status information can travel between NDSS monitor PBXs.

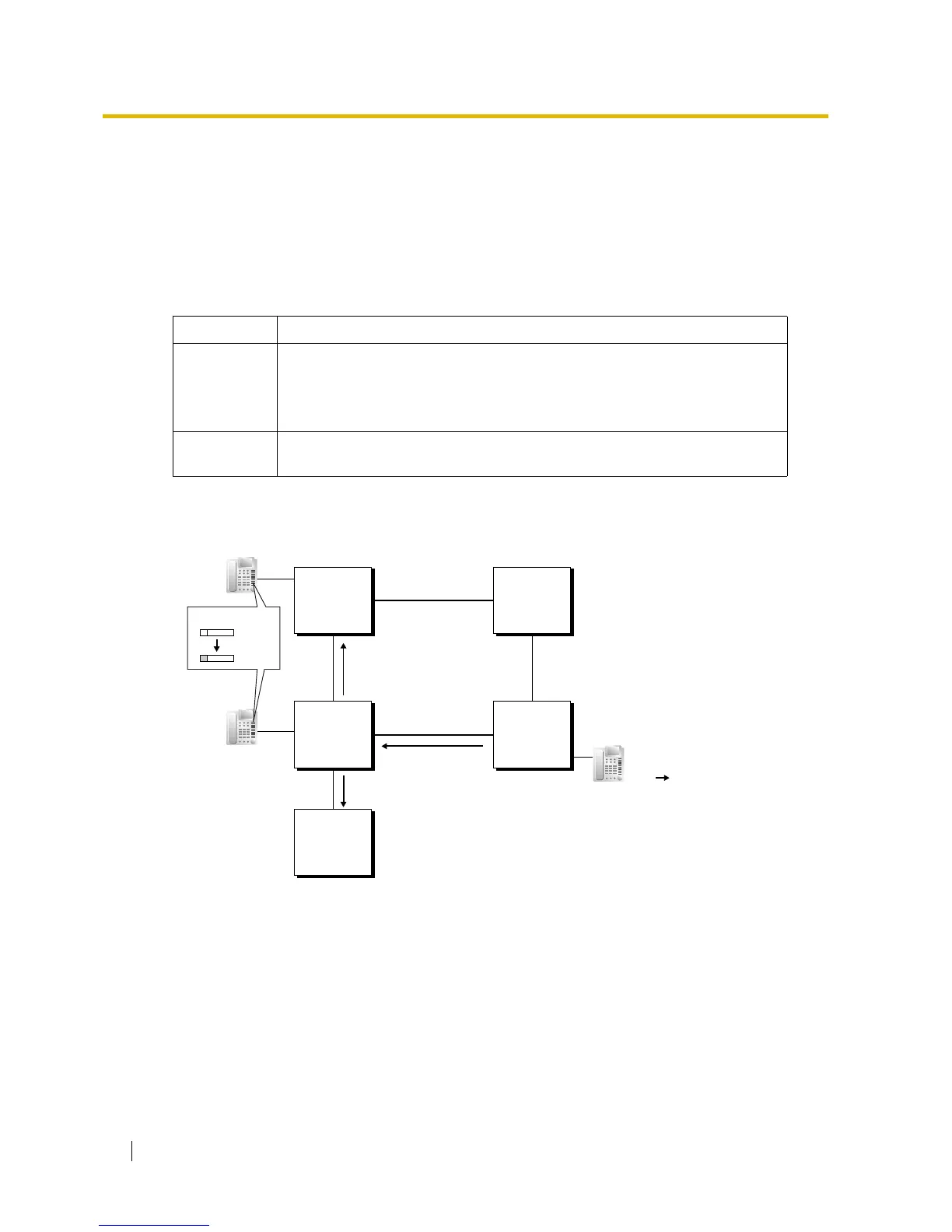

[Example ISDN Network Port Setting]
IP-GW-QSIG
IP data is routed through the network according to the routing tables of the IP-GW cards. When using
VoIP, it is necessary to identify the monitor PBXs, to which to transmit extension status information, for
each card that will be used. This is done by specifying the extension number of any extension (for
example, the PBX operator) at the monitor PBX as a Network Operator extension for that IP-GW card.
Transmit Extension Status Information Functions
Enabled • Transmit information on own PBX extensions
• Receive information from other PBXs; forward it to other QSIG ports of the
PBX
• Re-transmit information received by other QSIG ports of the PBX
Disabled • Receive information from other PBXs; forward it to other QSIG ports of the
PBX
PBX-1
Network ID 1
PBX-2
Network ID 0
4001
Idle Busy
OFF
OFF
ON
ON
ONOFF
OFFOFF
ON
4001
Busy
4001
Busy
4001
Busy
PBX-3
PBX-5
PBX-4
Network ID 3
Idle
4001 NDSS
Busy
