1. Before Use
14

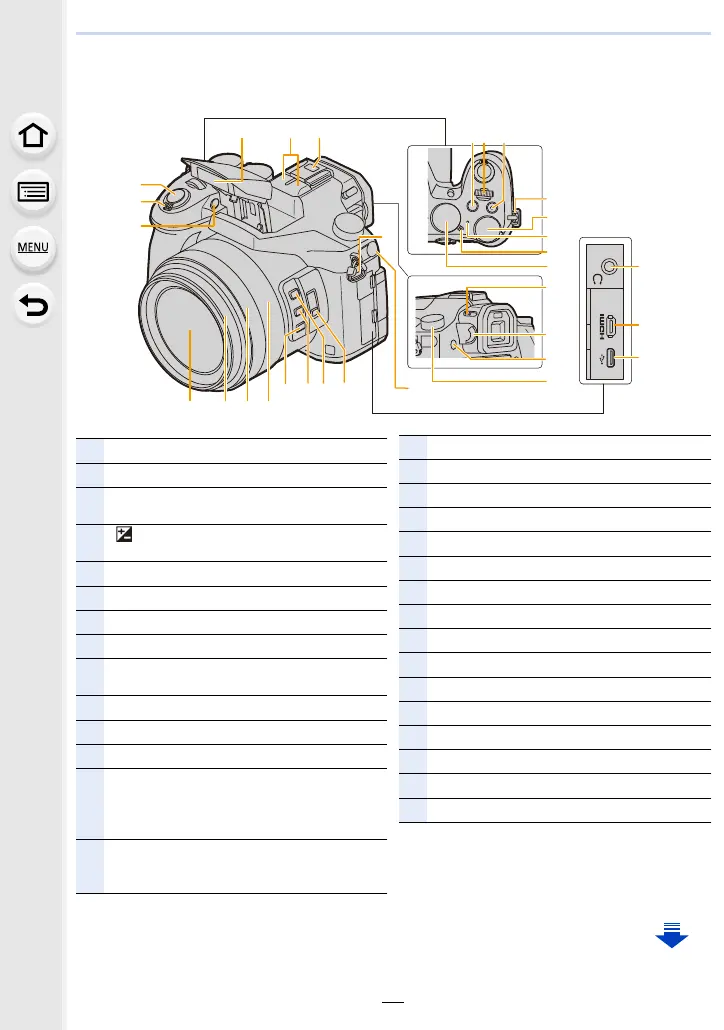

Names and Functions of Components
20
21
22
1
19
2
3
30
26
12
7
14
23
29 28 27
2425
13
5 64
8
9
10
11
7
15
16
17
18
1
Shutter button (P39)
2
Zoom lever (P145)
3
Self-timer indicator (P132)/
AF Assist Lamp (P221)
4
[ ] (Exposure Compensation) button (P103)/
[Fn4] button (P55)
5
Front dial (P41)
6
Motion picture button (P157)
7
Shoulder strap eyelet (P19)
8
Rear dial (P41)
9
Status indicator (P33)/
Wi-Fi
®
connection lamp (P260)
10
Camera ON/OFF switch (P33)
11
Mode dial (P40)
12
Flash (P148)
13
Stereo microphone (P216)
• Be careful not to cover the microphone with
your finger. Doing so may make sound difficult
to record.
14
Hot shoe (Hot shoe cover) (P312)
• Keep the Hot Shoe Cover out of reach of
children to prevent swallowing.
15
Flash open lever (P148)
16
Diopter adjustment dial (P36)
17
[LVF] button (P36)/[Fn7] button (P55)
18
Drive mode dial (P113)
19
[MIC] socket (P313)
20
Headphone socket (P215, 230)
21
[HDMI] socket (P300)
22
USB socket (P306, 309)
23
[ND FILTER] switch (P44)
24
[Fn1] button (P55)
25
[Fn2] button (P55)
26
[Fn3] button (P55)
27
Zoom ring (P38, 227)
28
Focus ring (P100)
29
Lens barrel
30
Lens surface
