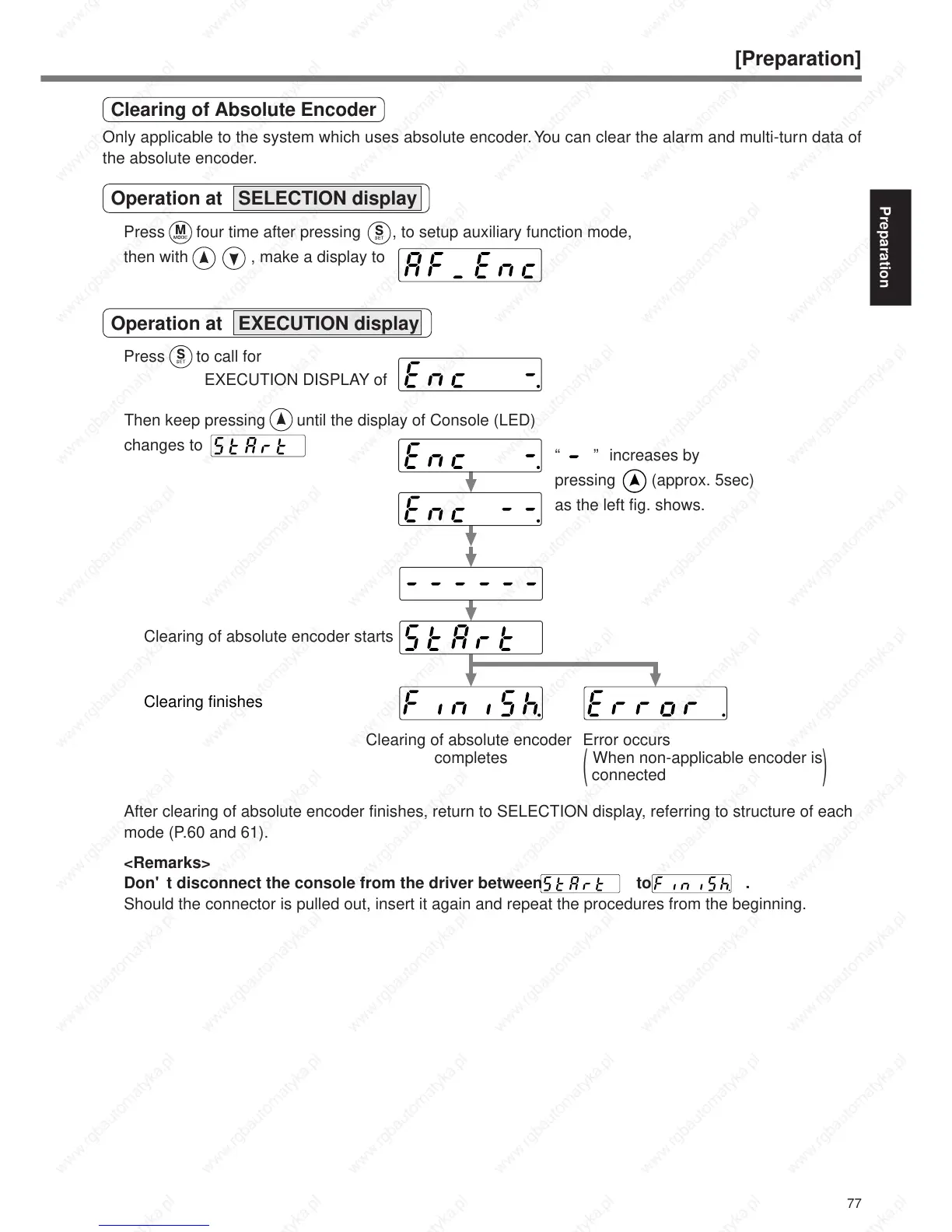

[Preparation]
Preparation
Clearing of Absolute Encoder
Only applicable to the system which uses absolute encoder. You can clear the alarm and multi-turn data of
the absolute encoder.
Clearing of absolute encoder starts
Clearing finishes
Error occurs
(
When non-applicable encoder is
)
connected
Clearing of absolute encoder 
completes
After clearing of absolute encoder finishes, return to SELECTION display, referring to structure of each
mode (P.60 and 61). 

<Remarks>
Don't disconnect the console from the driver between to .
Should the connector is pulled out, insert it again and repeat the procedures from the beginning.
Press four time after pressing , to setup auxiliary function mode, 
then with , make a display to
Press to call for 
EXECUTION DISPLAY of
Then keep pressing until the display of Console (LED) 
changes to
“ ” increases by 
pressing (approx. 5sec) 
as the left fig. shows.
Operation at SELECTION display
Operation at EXECUTION display
