Panasonic Minas E Series - Parts Description; Driver; Motor

16

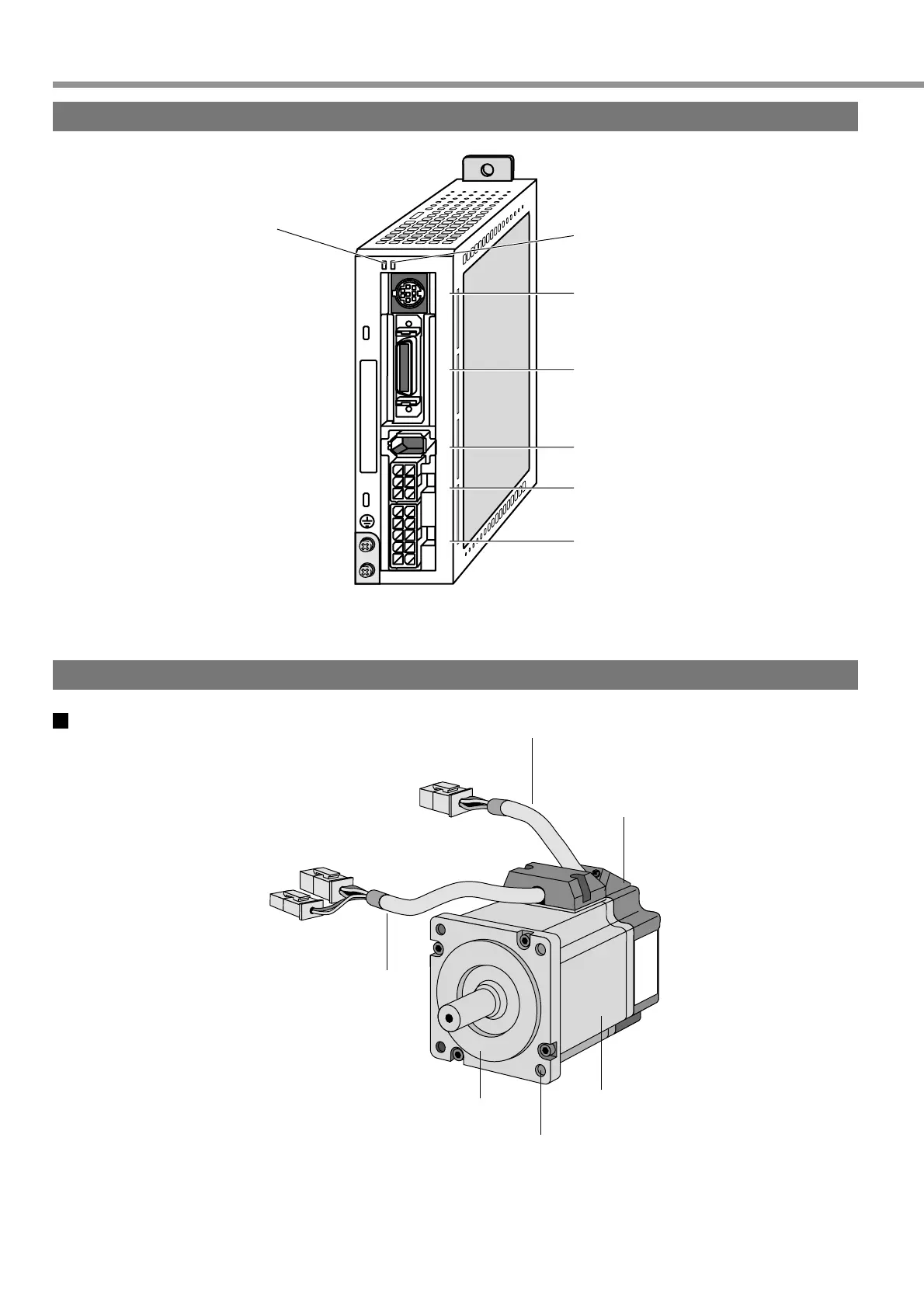

Driver
Parts Description
<Remarks>
For detailed information on each type, refer to a dimensional outline drawing (Pages 194 to 195) of
Reference edition.
Motor
Example: Super Low Inertia Type (MUMA Series 50W)
Encoder Cable
Encoder
Flange
Frame
Mounting Holes (in 4 locations)
Motor Cable
MUMA 50W - 400W
x 1
x 3
x 4
x 5
x 6
STATUS
ALM CODE
Status LED
Alarm Code LED
Connector for Serial Communications
(X6)
Interface Connector (X5)
Encoder Connector (X4)
Motor Connector (X3)
Main Power Supply Connector (X1)
