20

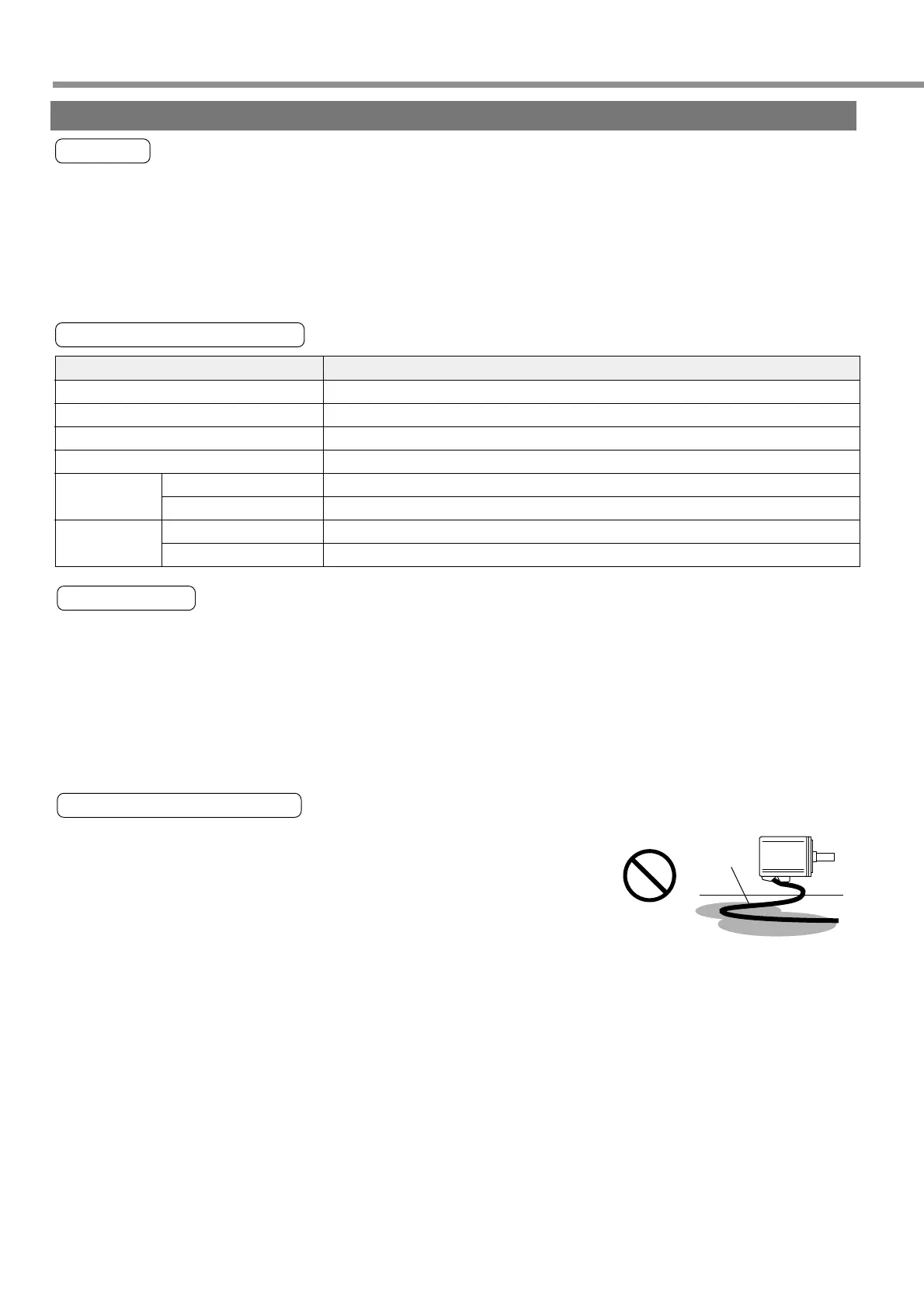

Installation
Motor
Location
(1) Indoors, where the driver is not subjected to rain water and direct sun beams.
(2) The place where the motor is not exposed to corrosive atmospheres such as hydrogen sulfide, sulfurous acid,
chlorine, ammonia, sulfur, chlorine gas, sulfuric gas, acid, alkali, salt, etc. and is free from splash of flammable
gas, grinding coolant, oil mist, iron powder, chips, etc.
(3) Place in a well-ventilated, and humid- and dust-free space.
(4) The place where the motor can be checked and cleaned easily.
Environmental Conditions
How to Install
The motor can be installed either vertically or horizontally. Observe the following notes.
(1) When installing in horizontal direction
• Mount the motor with its cable lead-out port faced downward as the countermeasure for oil and water.
(2) When installing in vertical direction
• When installing the motor with speed reducer with its output shaft upside, use the oil-sealed motor to prevent oil
inflow to the motor from the speed reducer. In this case, the oil-sealed motor is a special product.
(3) For the mounting dimensions, refer to a dimensional outline drawing (Pages 194 to 195).
Oil and Water Protections
(1) Don’t use the motor under an environment where oil and water splash over
the motor body.
(2) In combining with the speed reducer, use the oil-sealed motor to prevent oil
inflow to the motor internal through its shaft through-penetration hole. In this
case, the oil-sealed motor used is a special product.
(3) Don’t use the motor with its cable dipped in oil/water.
Oil and water
Cable
Motor
Item
Ambient temperature
Ambient humidity
Storage temperature
Storage humidity
Motor only
Vibration
With gear (At rotation)
Motor only
Shock
With gear
Conditions
0 to 40°C (free from freezing)
Lower than 85%RH (free from condensation)
-20 to 80°C (free from freezing)
Lower than 85%RH (free from condensation)
49 m/s
2
(5G) or less at rotation, 24 5 m/s
2
(2.5G) or less
High precision: 24.5 m/s
2
(2.5G) max.
98 m/s
2
(10G) max.
High precision: 98 m/s
2
(10G) max.
