[Preparations]
Preparations
Setup support software
"PANATERM "
x1
x3
x4
x5
x6
STATUS
ALM CODE
Personal computer
Console

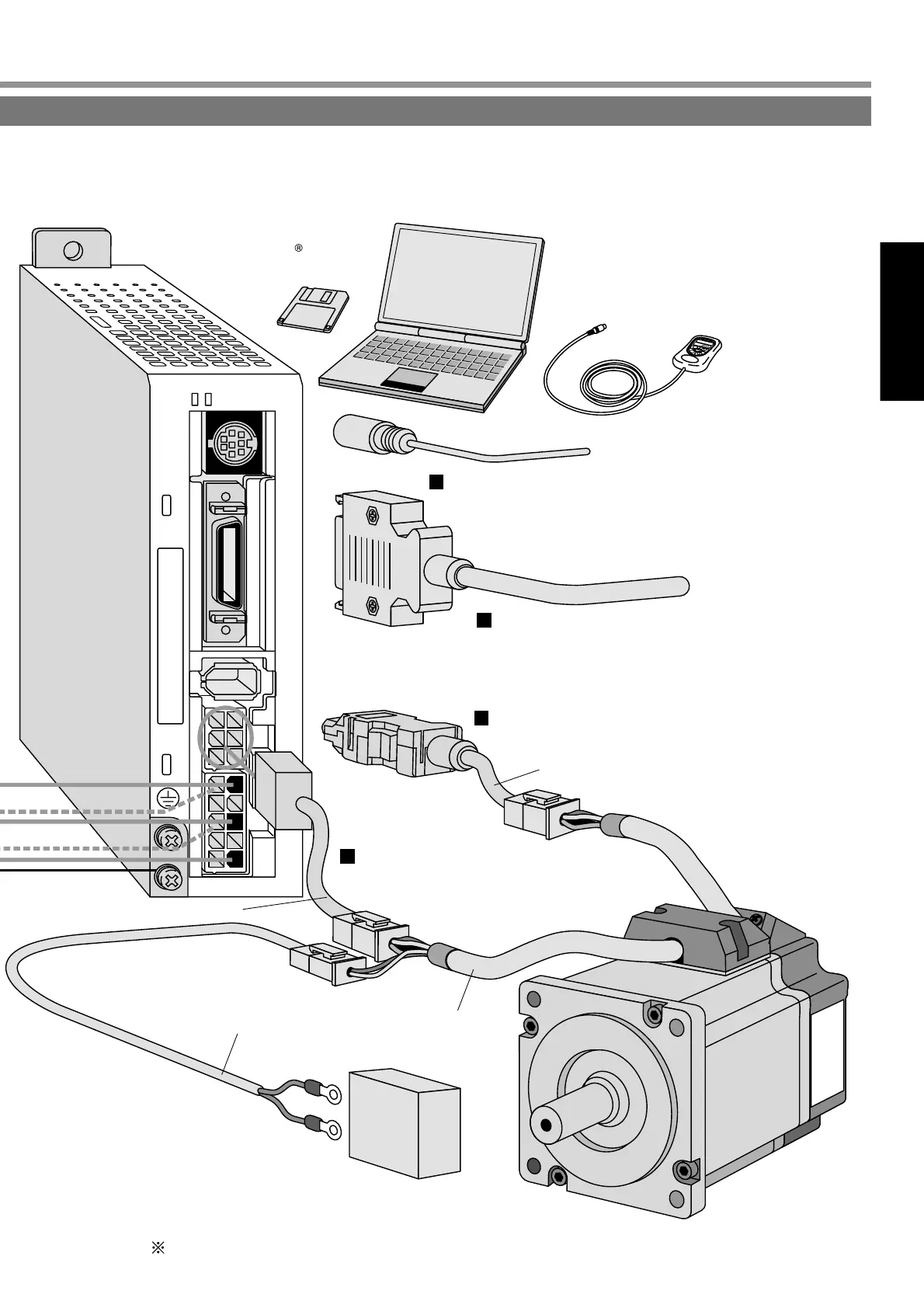

Wiring to Connector CN X6
(Connection with personal computers and consoles)
Wiring to Connector CN X5
(Connection with host controllers such as PLC, etc.)
Motor cable
Power supply for motor brake
(24 V DC)
Junction cable for motor
Junction cable for brake
Wiring to Connector CN X3
(Connection with each phase of motor
windings)
p
ply)
L1
L1
L2
L2
L1
L2
Wiring to Connector CN X4
(Connection with encoder)
Junction cable for encoder
M
O
D
E
S
H
I
F
T
S
E
T
S
M
MKDET1310P 200V
For connections, refer to Points in Wiring (Page 27).
