Panasonic SA-MAX5000PN - Page 17

17

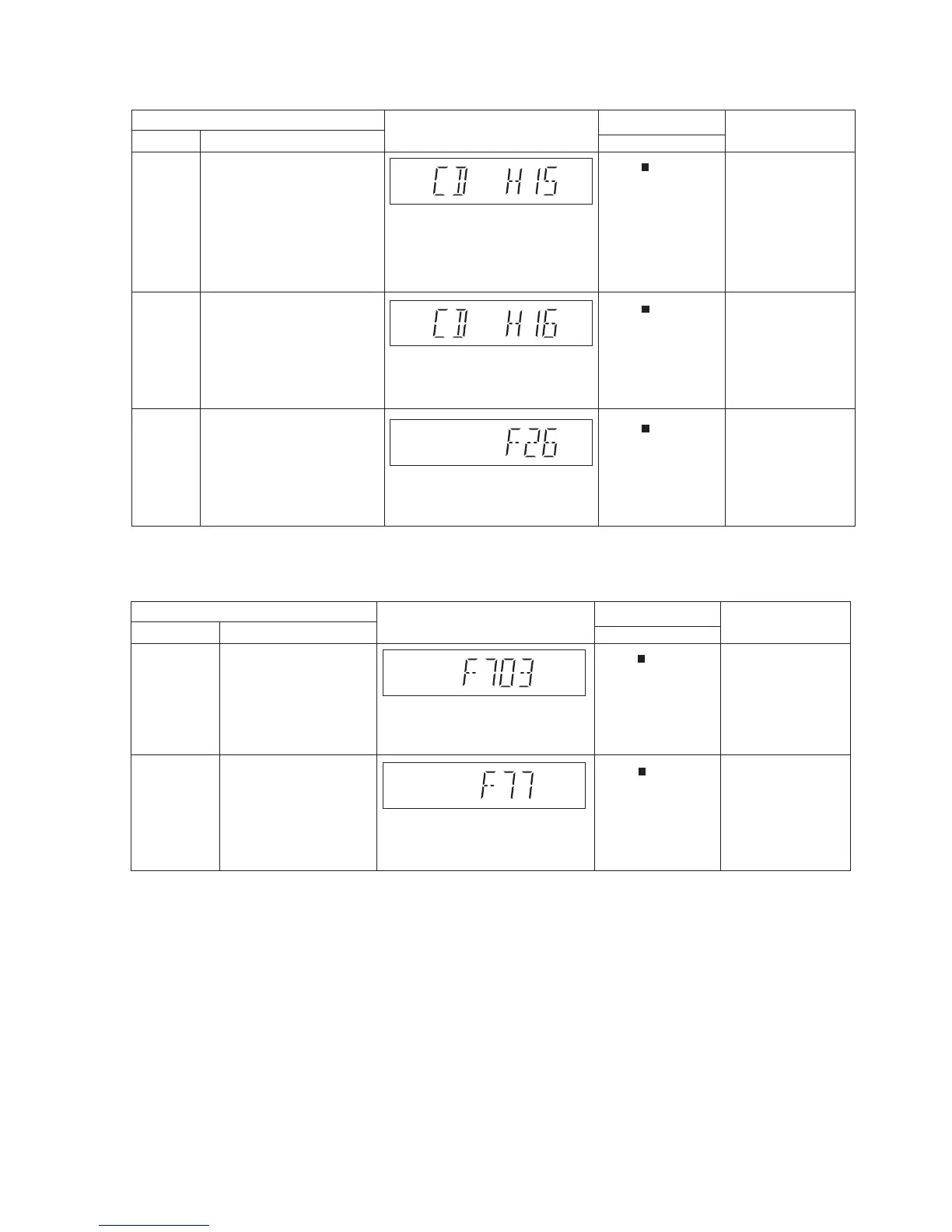

6.5.2. CD Mechanism Error Code Table
6.5.3. Bluetooth Error Code Table
FL Display
Key Operation
Front Key
Item
DescriptionMode Name
Error Code
CD H15
Diagnosis Contents:
CD Open Abnormal .
During operation POS_ SW_R On
fail to be detected within 4 sec.
Error No. shall be clear by force
or during cold start.
Error Code
CD H16
Diagnosis Contents:
CD Closing Abnormal .
During operation POS_SW_CEN
On fail to be detected within 4 sec.
Error No. shall be clear by force
or during cold start.
Error Code
F26
Diagnosis Contents:
Communication between CD
servo LSI and micro-p abnormal.
During switch to CD func-tion, if
SENSE = “L” within fail safe time
of 20ms.
Press [ ] on main unit
for next error.
Press [ ] on main unit
for next error.
Press [ ] on main unit
for next error.
Solution
(PCB exchange repair)
Check following:
1. CD Interface P.C.B.
(Pin 3, 4, 6)
2. SOC IC (IC1001)
Check following:
1. CD Interface P.C.B.
(Pin 6, 3, 4)
2. SOC IC (IC1001)
Check following:
1. SOC IC (IC1001)
Solution
(PCB exchange repair)
FL Display
Key Operation
Front Key
Item
DescriptionMode Name
Error Code
F703
Diagnosis Contents:
Bluetooth Communication.
Communication between
Bluetooth module and
micro-p abnormal.
Error Code F77 Diagnosis Contents:
Bluetooth Address Error
If there is no valid Bluetooth
address stored in the
EEPROM IC.
Press [ ] on main unit
for next error.
Press [ ] on main unit
for next error.
Check following:
1. Bluetooth P.C.B.
2. SOC IC on Main
P.C.B.
Check following:
1. EEPROM IC
(IC1004) on Main
P.C.B.
