26

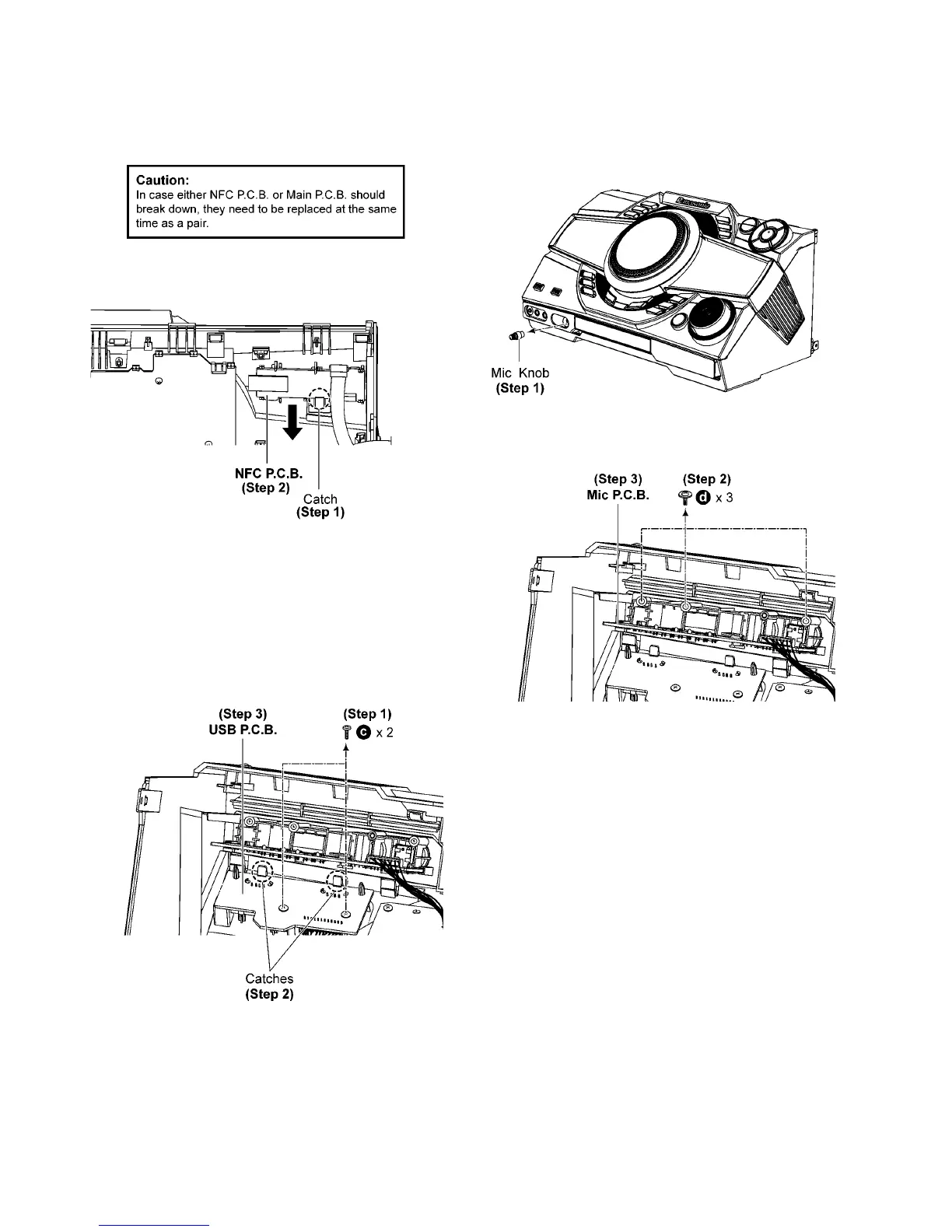

8.7. Disassembly NFC P.C.B.
• Refer to “Disassembly of Top Cabinet Assembly Unit”.
• Refer to “Disassembly of Front Panel Unit”.
Step 1 Release catch.
Step 2 Remove NFC P.C.B..
8.8. Disassembly of USB P.C.B.
• Refer to “Disassembly of Top Cabinet Assembly Unit”.
• Refer to “Disassembly of Front Panel Unit”.
Step 1 Remove 2 screws.
Step 2 Release catches.
Step 3 Remove USB P.C.B..
8.9. Disassembly of Mic P.C.B.
• Refer to “Disassembly of Top Cabinet Assembly Unit”.
• Refer to “Disassembly of Front Panel Unit”.
Step 1 Remove Mic Knob.
Step 2 Remove 3 screws.
Step 3 Remove Mic P.C.B..
