27

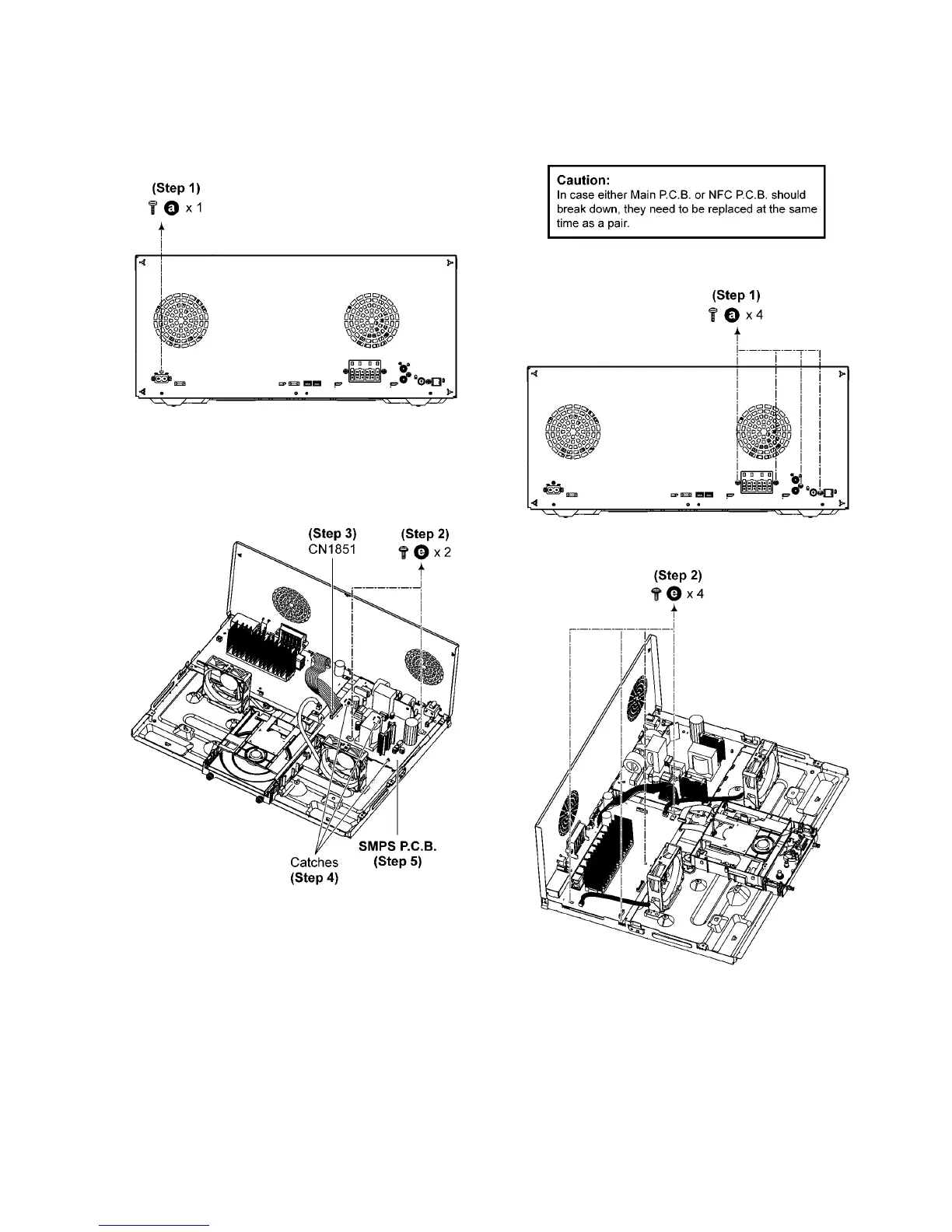

8.10. Disassembly of SMPS P.C.B.
• Refer to “Disassembly of Top Cabinet Assembly Unit”.
• Refer to “Disassembly of Front Panel Unit”.
Step 1 Remove screw.
Step 2 Remove 2 screws.
Step 3 Detach 13P Cable at connector (CN1851) on SMPS
P. C. B ..
Step 4 Release catches.
Step 5 Remove SMPS P.C.B..
8.11. Disassembly of Main P.C.B.
• Refer to “Disassembly of Top Cabinet Assembly Unit”.
• Refer to “Disassembly of Front Panel Unit”.
Step 1 Remove 4 screws.
Step 2 Remove 4 screws.
