8.6. Disassembly of Panel P.C.B.
• Refer to “Disassembly of Top Cabinet Assembly Unit”.
• Refer to “Disassembly of Front Panel Unit”.

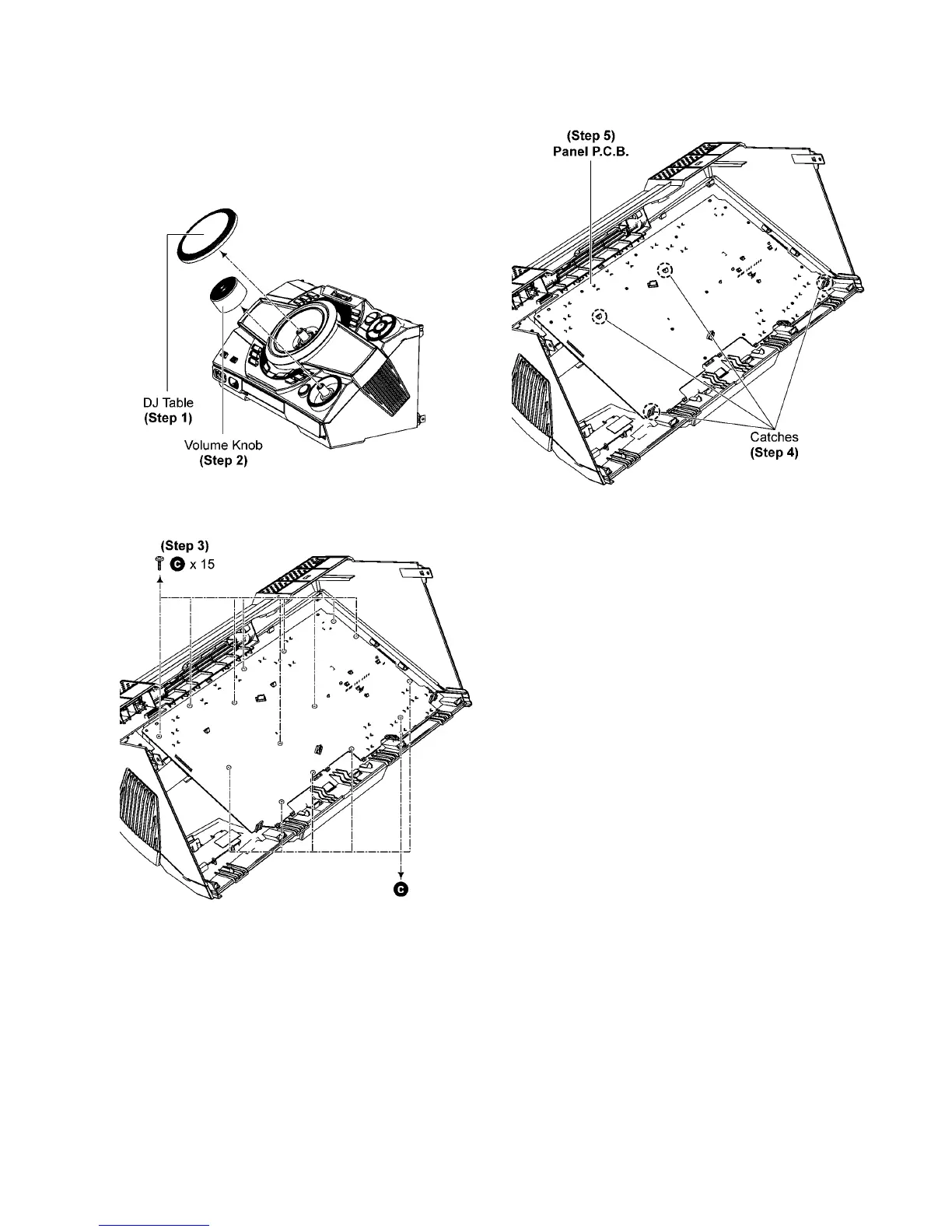

Step 1 Remove DJ Table.
Step 2 Remove Volume Knob.
Step 3 Remove 15 screws.
Step 4 Release catches.
Step 5 Remove Panel P.C.B..
