9.4.

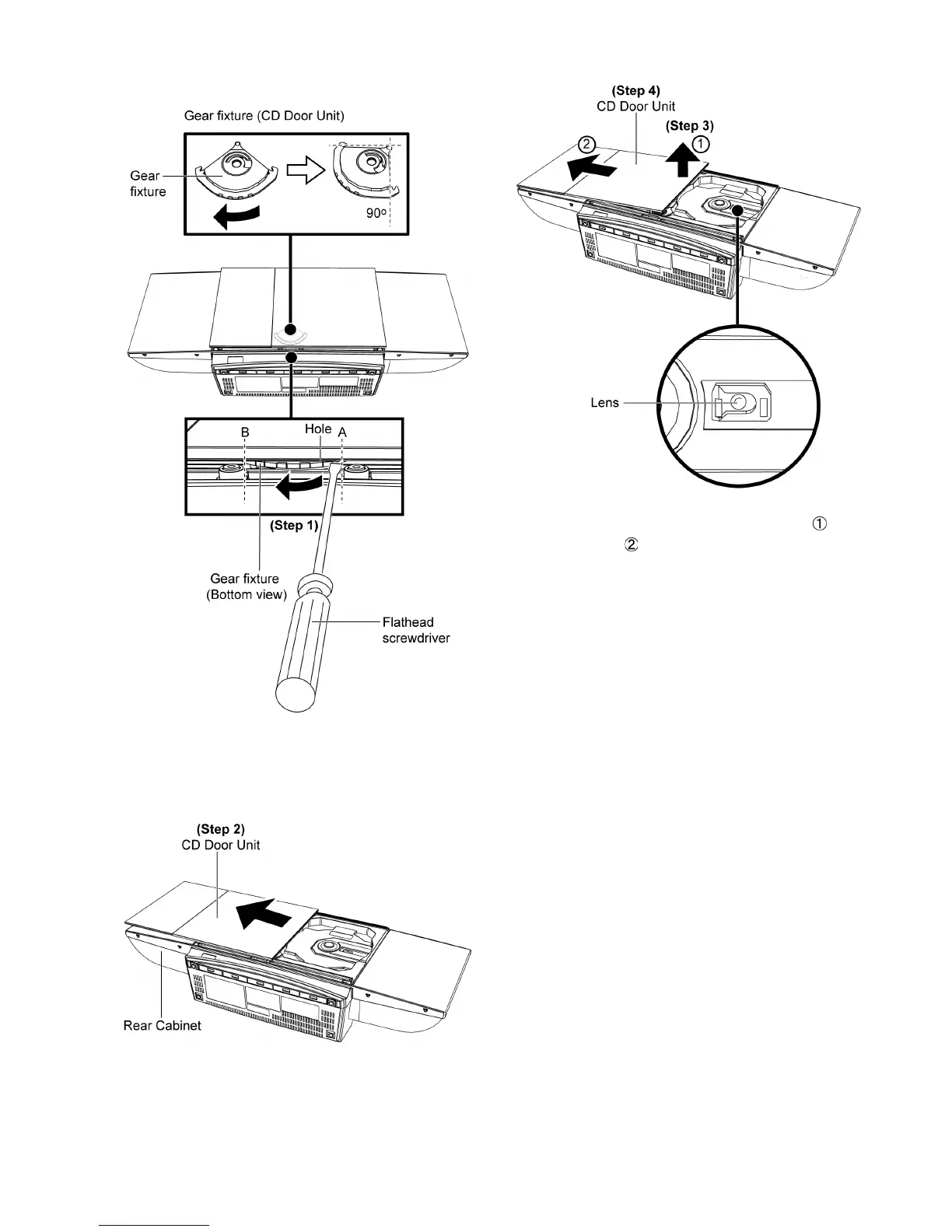

Disassembly of CD Door Unit
Step 1 :
Insert a flathead sc
rewdriver into the h
ole behind the
CD Door Un
it and push
the gear fixture fro
m point A to B.
Step
2 :
Gentlel
y push the CD
Door Unit ma
nually unti
l it is fully
extended
.
S
tep 3 :
Lift up the CD D
oor Unit slightly
as arrow
shown
and pus
h it as arrow
shown.
Ste
p
4 :
Remov
e the CD Door Unit.
Caution : A
void touc
hing the lens durin
g assembling /
Dis-
assembly of the CD Do
or Unit.
22
