35

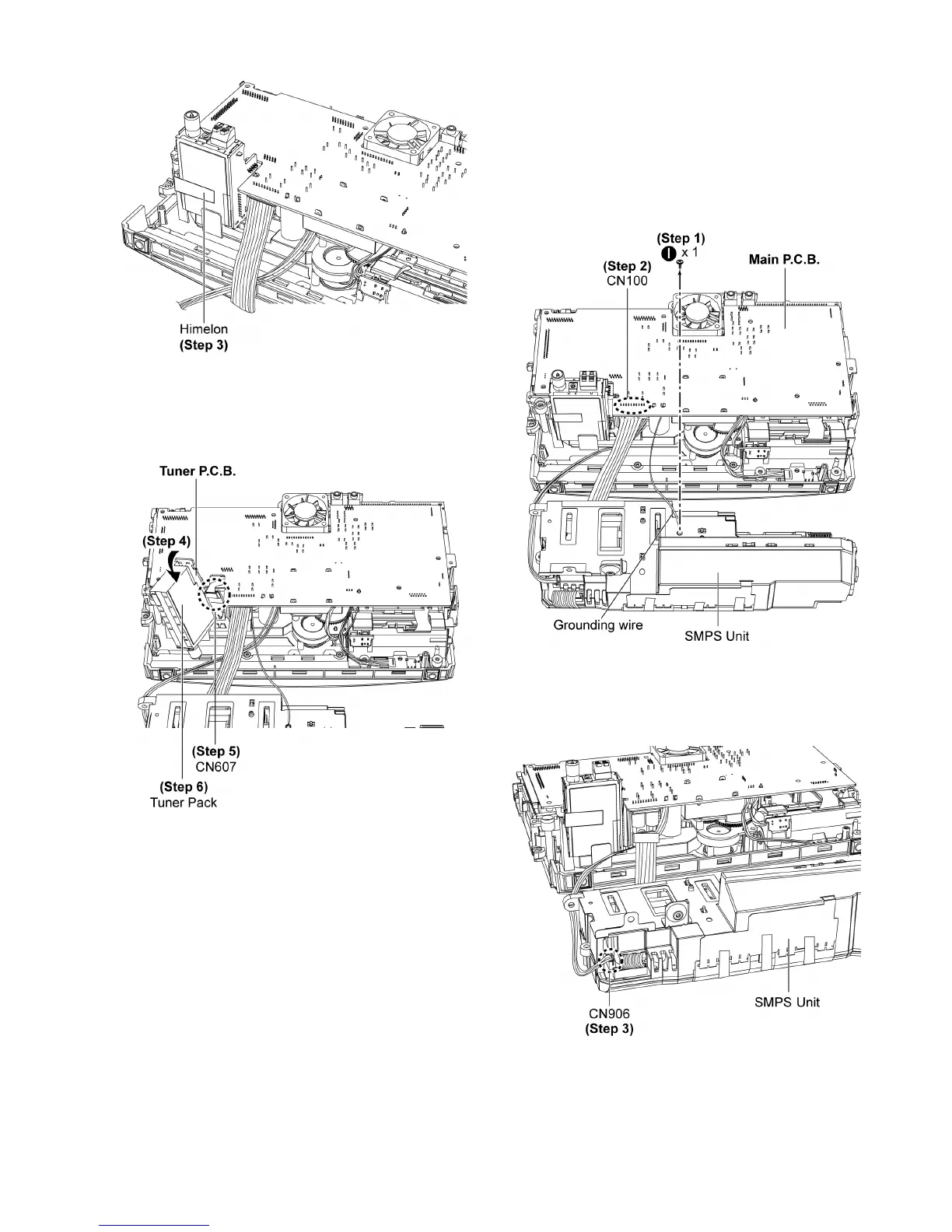

Step 3 : Lift up the himelon.
Caution : During assembling of Tuner Pack, replace
himelon if it is torn.
Step 4 : Tilt the Tuner Pack.
Step 5 : Detach 10P FFC cable at the connector (CN607) on
the Tuner P.C.B..
Step 6 : Remove the Tuner Pack.
9.13. Disassembly of SMPS Unit
• Follow the (Step 1) - (Step 4) of item 9.4.
• Follow the (Step 1) - (Step 4) of item 9.5.
• Follow the (Step 1) - (Step 3) of item 9.6.
• Follow the (Step 1) - (Step 3) of item 9.7.
• Follow the (Step 1) - (Step 9) of item 9.10.
• Follow the (Step 1) - (Step 2) of item 9.11.
• Follow the (Step 1) - (Step 2) of item 9.12.
Step 1 : Remove 1 screw.
Step 2 : Detach 10P cable at the connector (CN100) on the
Main P.C.B..
Step 3 : Detach 4P cable at the connector (CN906) on the
SMPS P.C.B..
