9.8. Disassembly of Speaker Unit
(SP1)
• Follow the (Step 1) - (Step 4) of item 9.5.
• Follow the (Step 1) - (Step 3) of item 9.6.
• Follow the (Step 1) - (Step 3) of item 9.7.

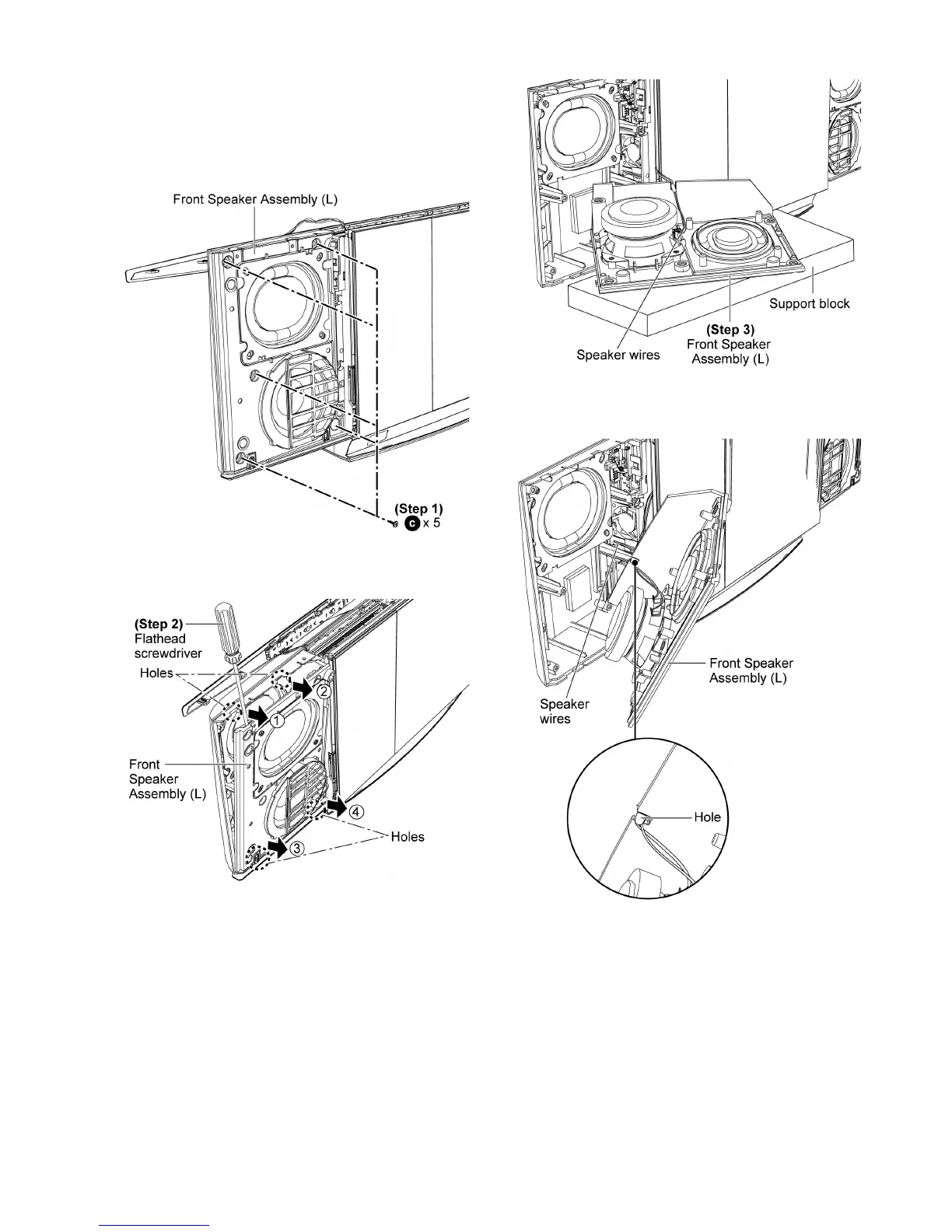

Step 1 : Remove 5 screws.
Step 2 : Using a flathead screwdriver, apply gentle force at the
4 holes in the Front Speaker Assembly (L) in order show to
detach it from the Main Unit as arrows shown.
Step 3 : Place the Front Speaker Assembly (L) on a support
block as shown.
Caution : During assembling of the Front Speaker Assem-
bly (L), insert the speaker wires into the hole in the Front
Speaker Assembly (L).
