9.32. Disassembly of IR P.C.B.
• Follow the (Step 1) - (Step 4) of item 9.4.
• Follow the (Step 1) - (Step 4) of item 9.5.
• Follow the (Step 1) - (Step 3) of item 9.6.
• Follow the (Step 1) - (Step 3) of item 9.7.
• Follow the (Step 1) - (Step 9) of item 9.10.
• Follow the (Step 1) - (Step 2) of item 9.11.
• Follow the (Step 1) - (Step 2) of item 9.12.
• Follow the (Step 1) - (Step 5) of item 9.13.

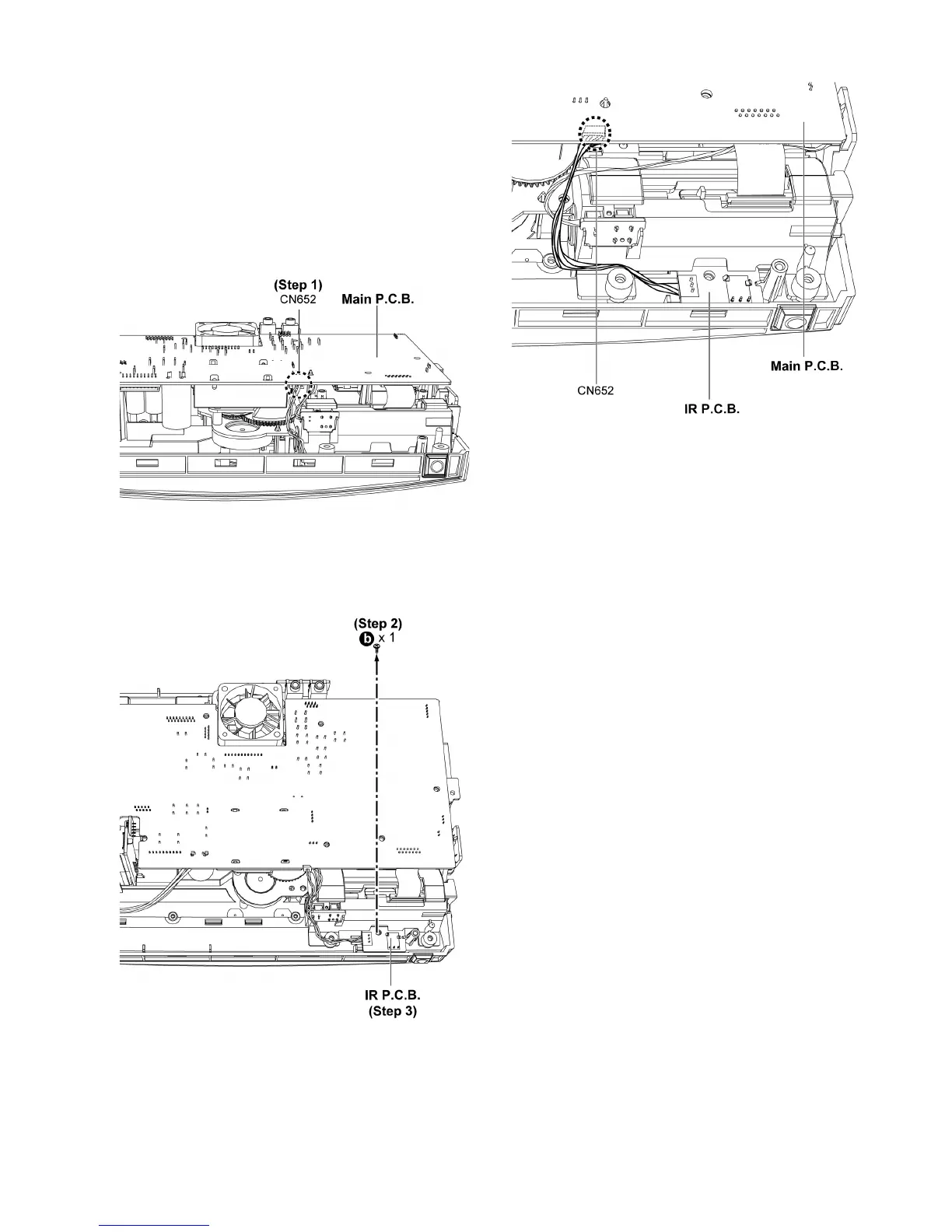

Step 1 : Detach 3P cable at the connector (CN652) on the Main
P.C .B..
Step 2 : Remove 1 screw.
Step 3 : Remove the IR P.C.B..
Caution : During assembly of the IR P.C.B., connect 3P
cable to the connector (CN652) on the Main P.C.B. and
dress the cable as shown.
