10 Service Position
Note: For description of the disassembly procedures, see the Section 9
10.1. Checking and Repairing Main
P. C .B .
• Checking & Repairing Main P.C.B. (Side A)

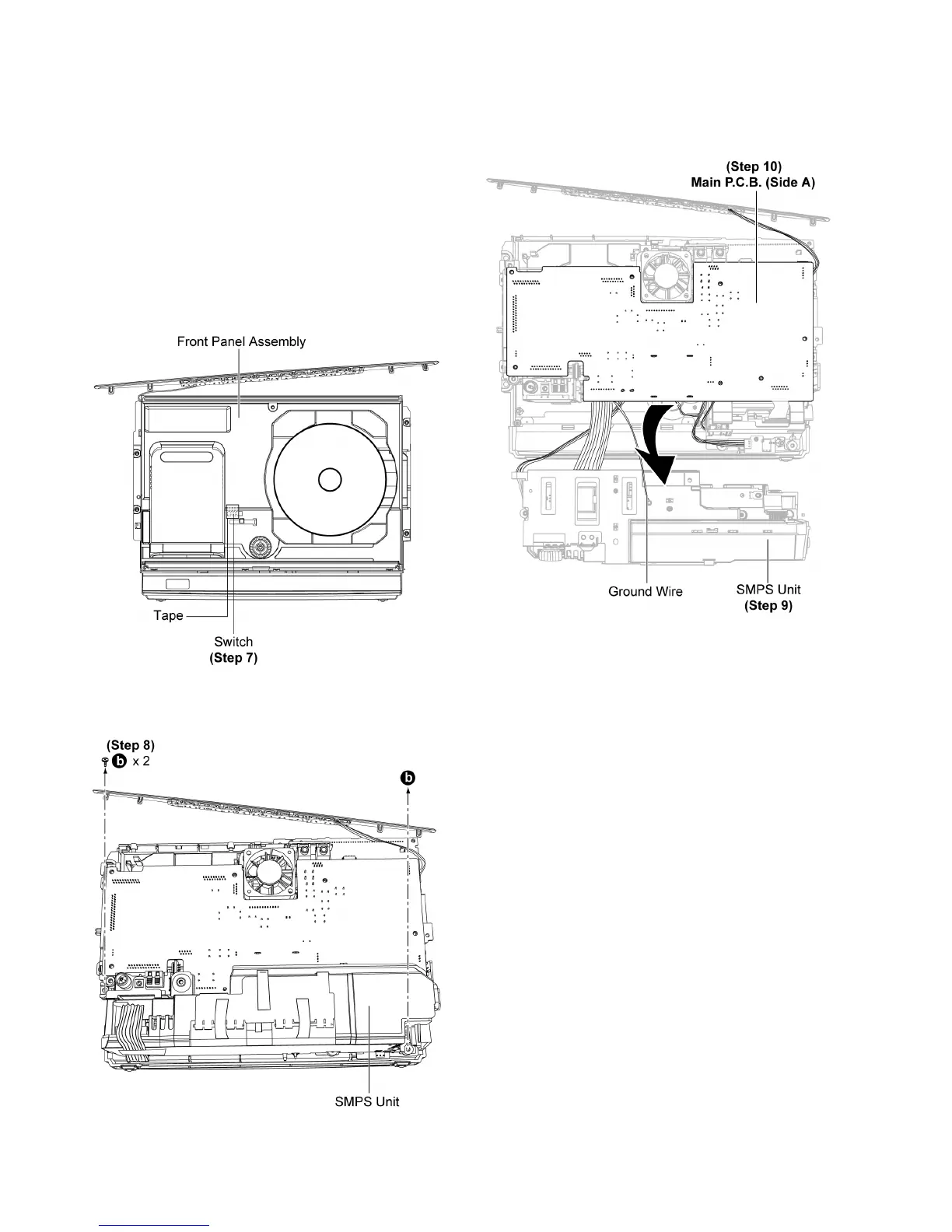

Step 1 : Remove CD Door Unit.
Step 2 : Remove Net Frame.
Step 3 : Remove Top Ornament.
Step 4 : Remove Bottom Ornament.
Step 5 : Remove Front Panel Block.
Step 6 : Insert a CD into the CD tray.
Step 7 : Use tape to keep the Switch depressed.
Step 8 : Remove 2 screw.
Step 9 : Lift up and flip over the SMPS Unit.
Step 10 : Check and repair Main P.C.B. (Side A) according to
the diagram shown.
Caution : Take extra care not to damage the ground wire
connected to the SMPS Unit during disassembling.
