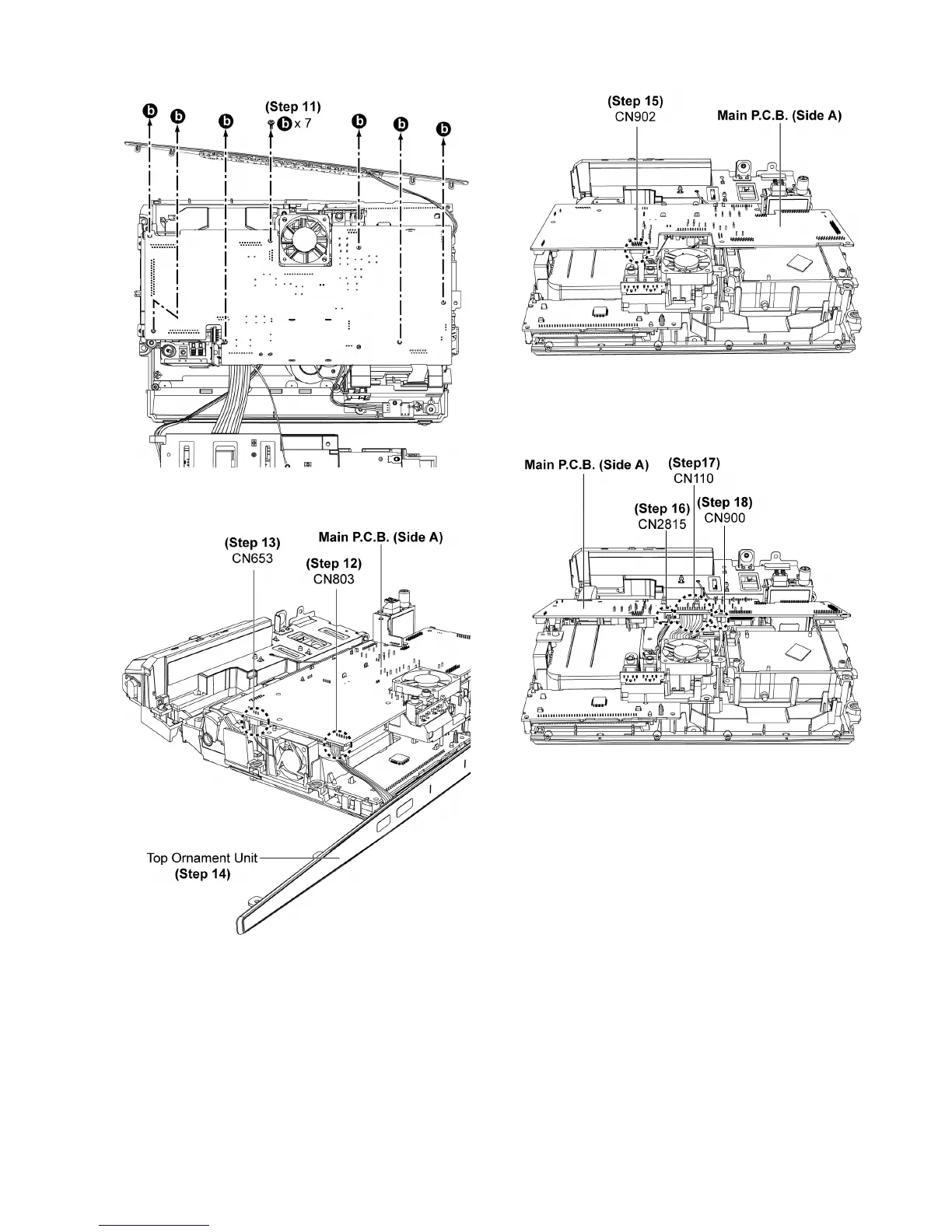

• Checking & Repairing Main P.C.B. (Side B)
Step 11 : Remove 7 screw.
Step 12 : Detach 5P cable at the connector (CN803) on the
Main P.C.B..
Step 13 : Detach 3P cable at the connector (CN653) on the
Main P.C.B..
Step 14 : Remove Top Ornament Unit.
Step 15 : Lift up the Main P.C.B. slightly to detach 8P cable at
the connector (CN902).
Step 16 : Detach 2P cable at the connector (CN2815) on the
Main P.C.B..
Step 17 : Detach 12P cable at the connector (CN110) on the
Main P.C.B..
Step 18 : Detach 9P FFC cable at the connector (CN900) on
the Main P.C.B..
