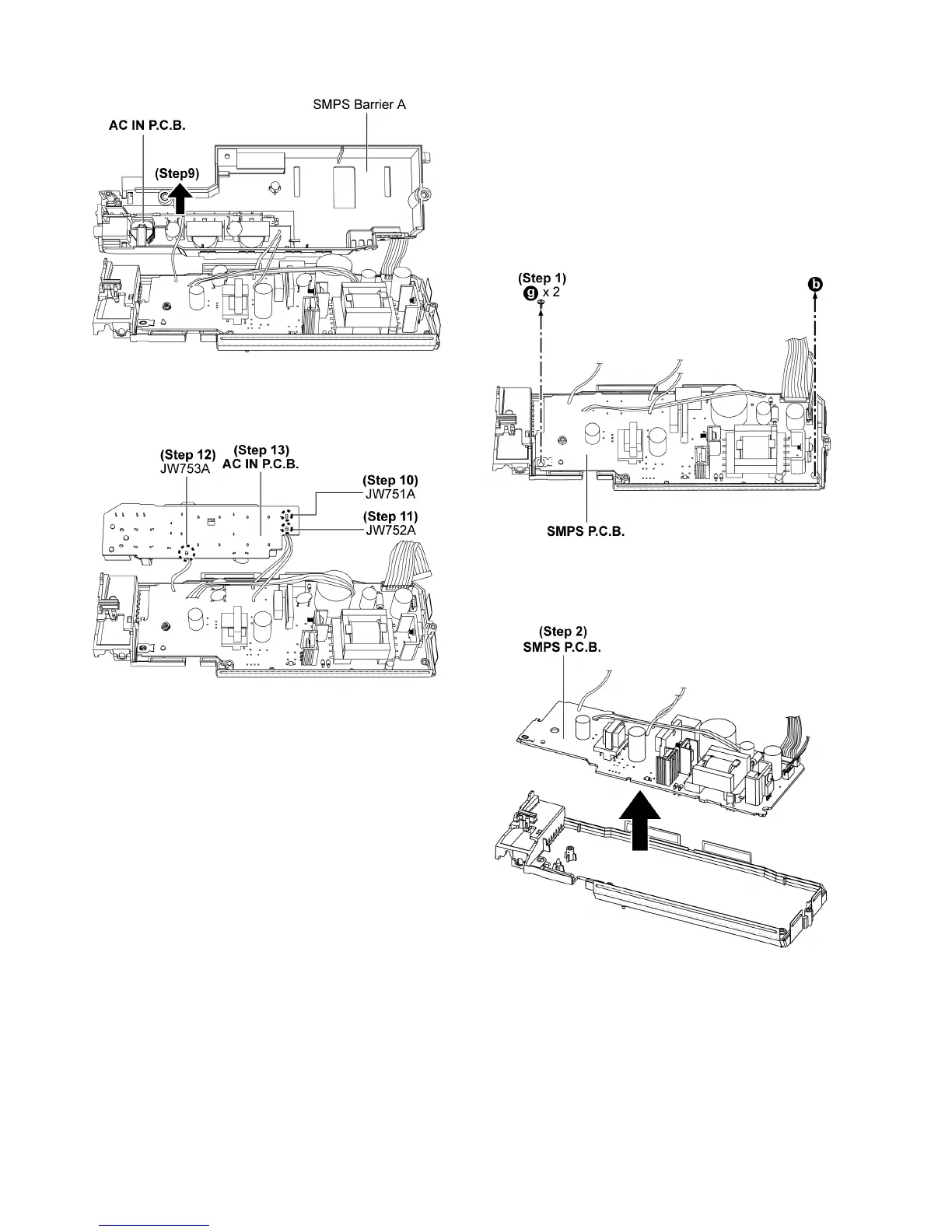

Step 9 : Remove the AC IN P.C.B..
Step 10 : Desolder red wire (JW751A) on the AC IN P.C.B..
Step 11 : Desolder black wire (JW752A) on the AC IN P.C.B..
Step 12 : Desolder blue wire (JW753A) on the AC IN P.C.B..
Step 13 : Remove the AC IN P.C.B..
9.15. Disassembly of SMPS P.C.B.
• Follow the (Step 1) - (Step 4) of item 9.4.
• Follow the (Step 1) - (Step 4) of item 9.5.
• Follow the (Step 1) - (Step 3) of item 9.6.
• Follow the (Step 1) - (Step 3) of item 9.7.
• Follow the (Step 1) - (Step 9) of item 9.10.
• Follow the (Step 1) - (Step 2) of item 9.11.
• Follow the (Step 1) - (Step 2) of item 9.12.
• Follow the (Step 1) - (Step 5) of item 9.13.
• Follow the (Step 1) - (Step 13) of item 9.14.
Step 1 : Remove 2 screws.
Step 2 : Remove the SMPS P.C.B..
