60

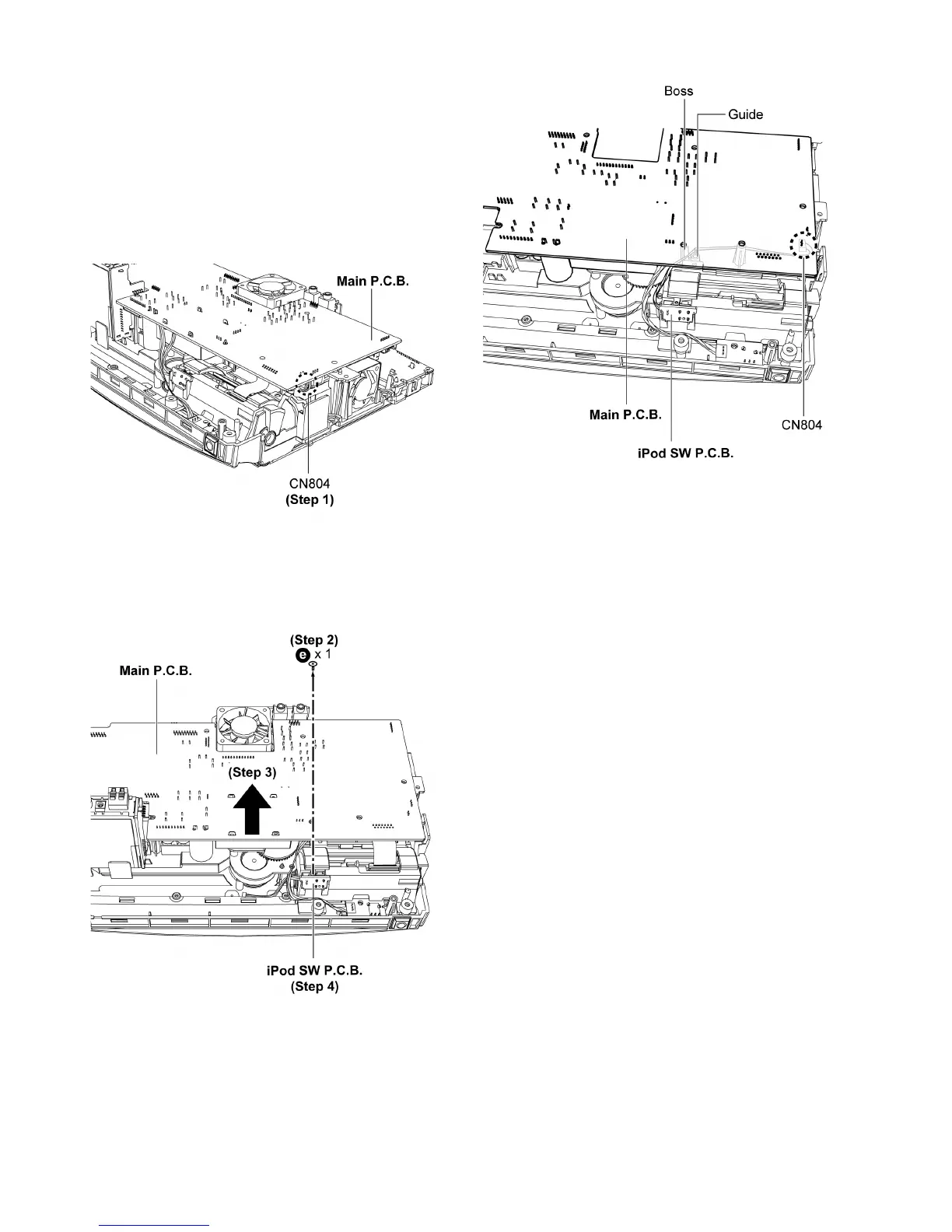

9.31. Disassembly of iPod SW P.C.B.
Follow the (Step 1) - (Step 4) of item 9.4.
Follow the (Step 1) - (Step 4) of item 9.5.
Follow the (Step 1) - (Step 3) of item 9.6.
Follow the (Step 1) - (Step 3) of item 9.7.
Follow the (Step 1) - (Step 9) of item 9.10.
Follow the (Step 1) - (Step 2) of item 9.11.
Follow the (Step 1) - (Step 2) of item 9.12.
Follow the (Step 1) - (Step 5) of item 9.13.
Follow the (Step 1) of item 9.19.
Step 1 : Detach 2P cable at the connector (CN804) on the Main
P. C .B . .
Step 2 : Remove 1 screw.
Step 3 : Lift up the Main P.C.B. slightly.
Step 4 : Remove the iPod SW P.C.B..
Caution : Ensure that the cable is placed between the boss
and the guide underneath the Main P.C.B..
