32
9.10.
Disassembly of Panel 1 &
Panel 2 P
.C.B.
•
Follow the (S
tep 1
) - (S
tep 4) of item
9.4.
•
Follow the (S
tep 1
) - (S
tep 4) of item
9.5.
•
Follow the (S
tep 1
) - (S
tep 3) of item
9.6.
•
Follow the (S
tep 1
) - (S
tep 3) of item
9.7.

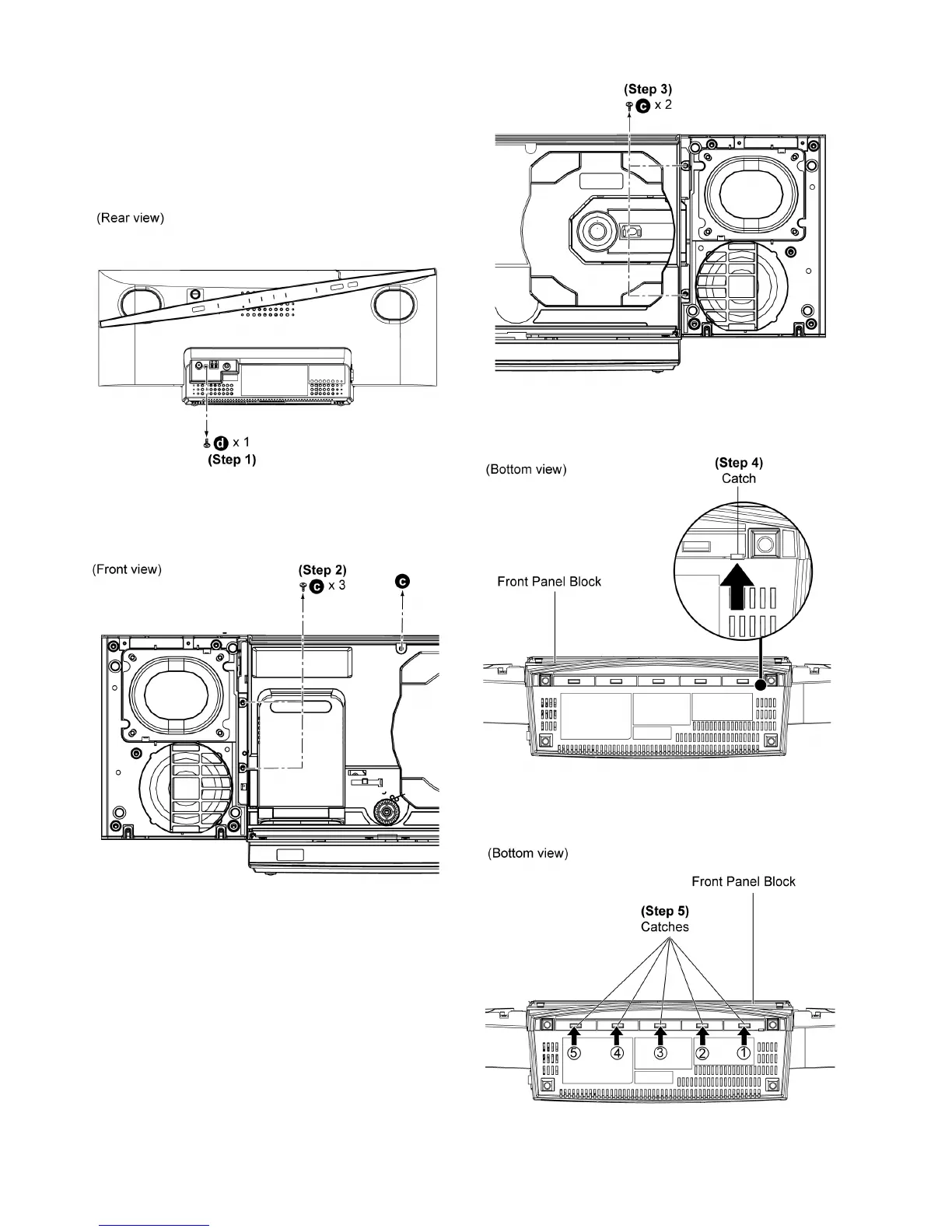

Step 1 :
Remove 1 screw
.
Step 2 :
Remove 3 screws.
Step
3 :
Remo
ve 2 screw
s.
Step
4 :
Press to
release catch
as arrow sh
own.
