53

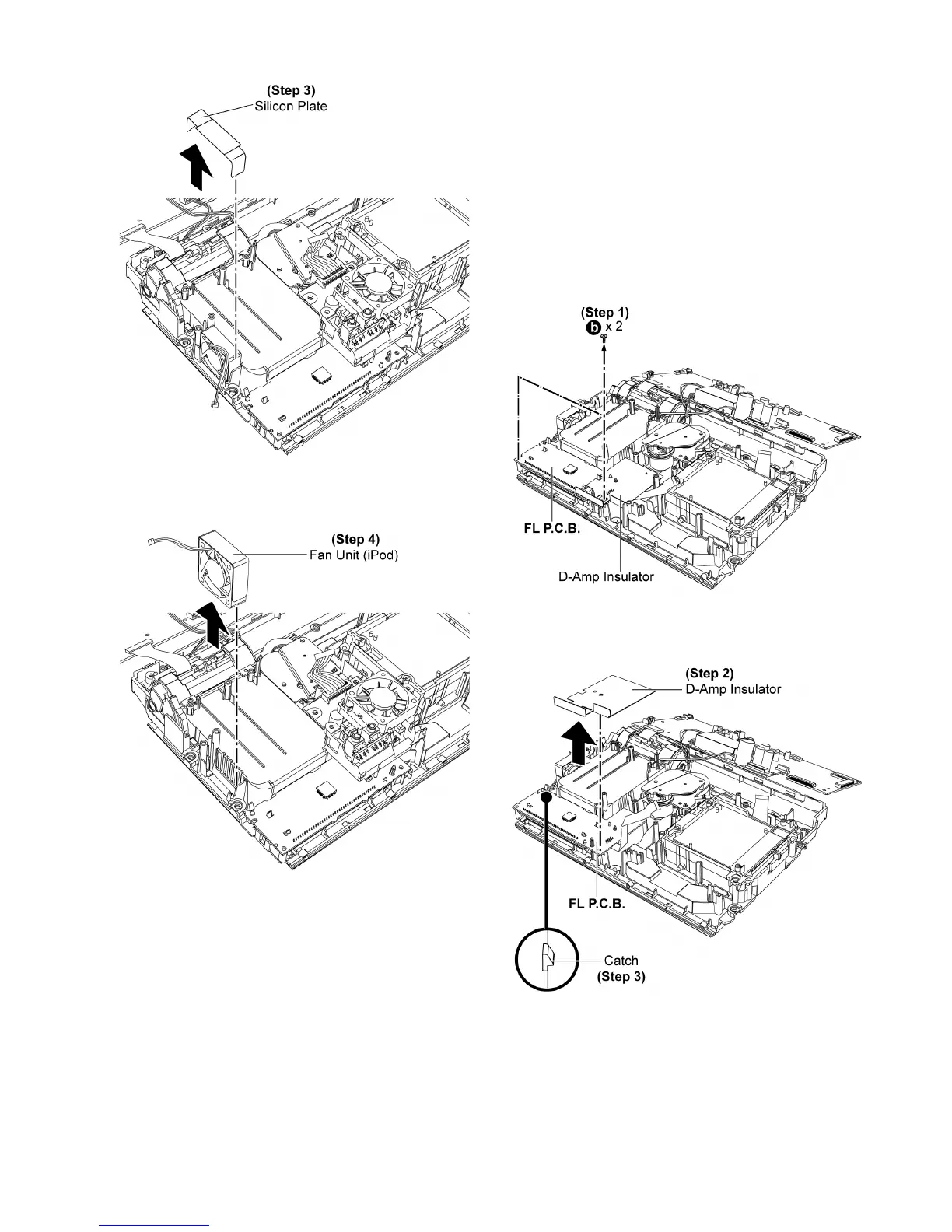

Step 3 : Remove the silicon plate.
Step 4 : Remove the Fan Unit (iPod).
Caution : During assembling ensure the fan unit (iPod) is
seated properly.
9.27. Disassembly of FL P.C.B.
• Follow the (Step 1) - (Step 4) of item 9.4.
• Follow the (Step 1) - (Step 4) of item 9.5.
• Follow the (Step 1) - (Step 3) of item 9.6.
• Follow the (Step 1) - (Step 3) of item 9.7.
• Follow the (Step 1) - (Step 9) of item 9.10.
• Follow the (Step 1) - (Step 2) of item 9.11.
• Follow the (Step 1) - (Step 2) of item 9.12.
• Follow the (Step 1) of item 9.13.
• Follow the (Step 1) - (Step 11) of item 9.19.
• Follow the (Step 1) of item 9.21.
• Follow the (Step 1) - (Step 2) of item 9.25.
Step 1 : Remove 2 screws.
Step 2 : Remove D-Amp Insulator.
Step 3 : Release the catch on the FL P.C.B..
