52

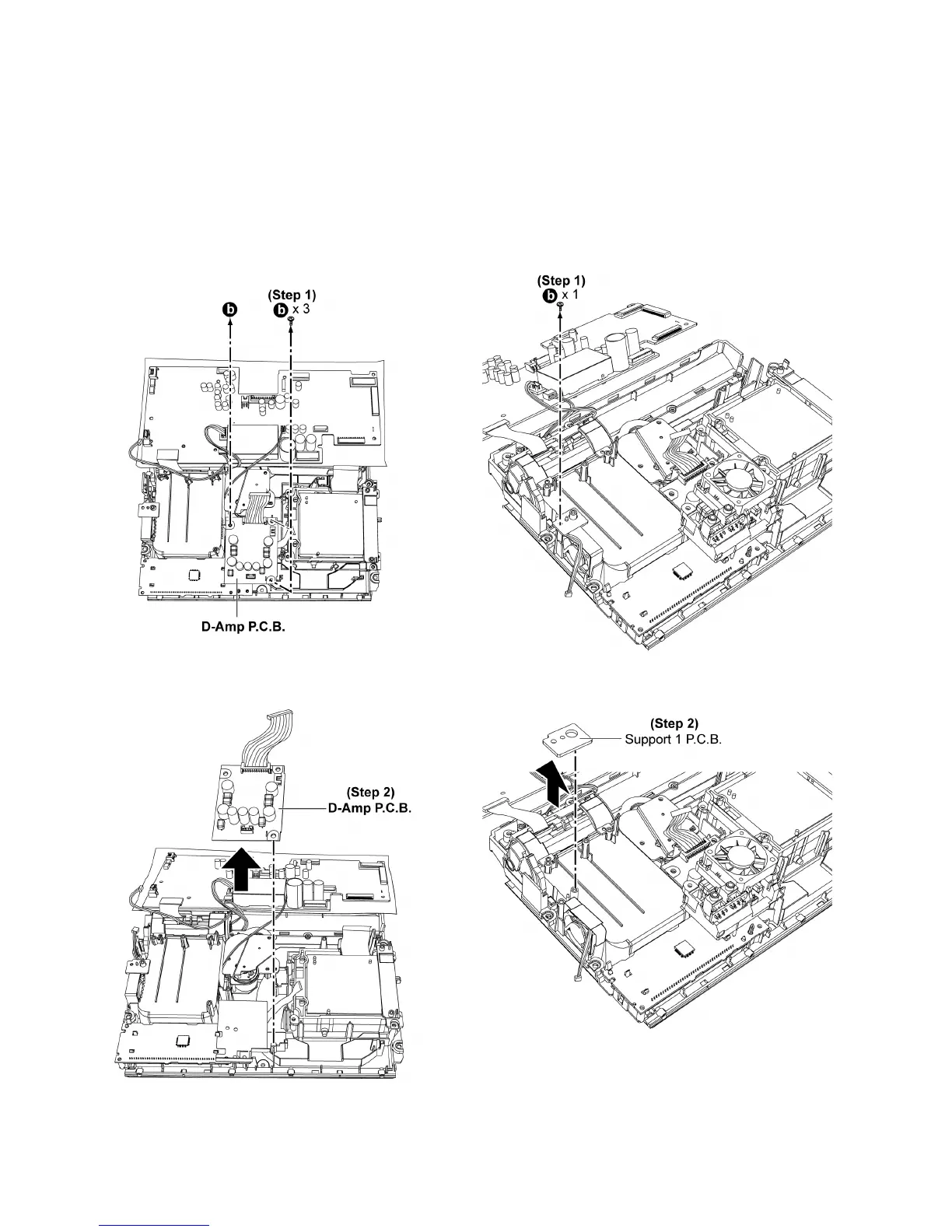

9.25. Disassembly of D-Amp P.C.B.
• Follow the (Step 1) - (Step 4) of item 9.4.
• Follow the (Step 1) - (Step 4) of item 9.5.
• Follow the (Step 1) - (Step 3) of item 9.6.
• Follow the (Step 1) - (Step 3) of item 9.7.
• Follow the (Step 1) - (Step 9) of item 9.10.
• Follow the (Step 1) - (Step 2) of item 9.11.
• Follow the (Step 1) - (Step 2) of item 9.12.
• Follow the (Step 1) of item 9.13.
• Follow the (Step 1) - (Step 11) of item 9.19.
• Follow the (Step 1) of item 9.21.
Step 1 : Remove 3 screws.
Step 2 : Remove the D-Amp P.C.B..
9.26. Disassembly of Fan Unit (iPod)
• Follow the (Step 1) - (Step 4) of item 9.4.
• Follow the (Step 1) - (Step 4) of item 9.5.
• Follow the (Step 1) - (Step 3) of item 9.6.
• Follow the (Step 1) - (Step 3) of item 9.7.
• Follow the (Step 1) - (Step 9) of item 9.10.
• Follow the (Step 1) - (Step 2) of item 9.11.
• Follow the (Step 1) - (Step 2) of item 9.12.
• Follow the (Step 1) of item 9.13.
• Follow the (Step 1) - (Step 11) of item 9.19.
Step 1 : Remove 1 screw.
Step 2 : Remove the support 1 P.C.B..
