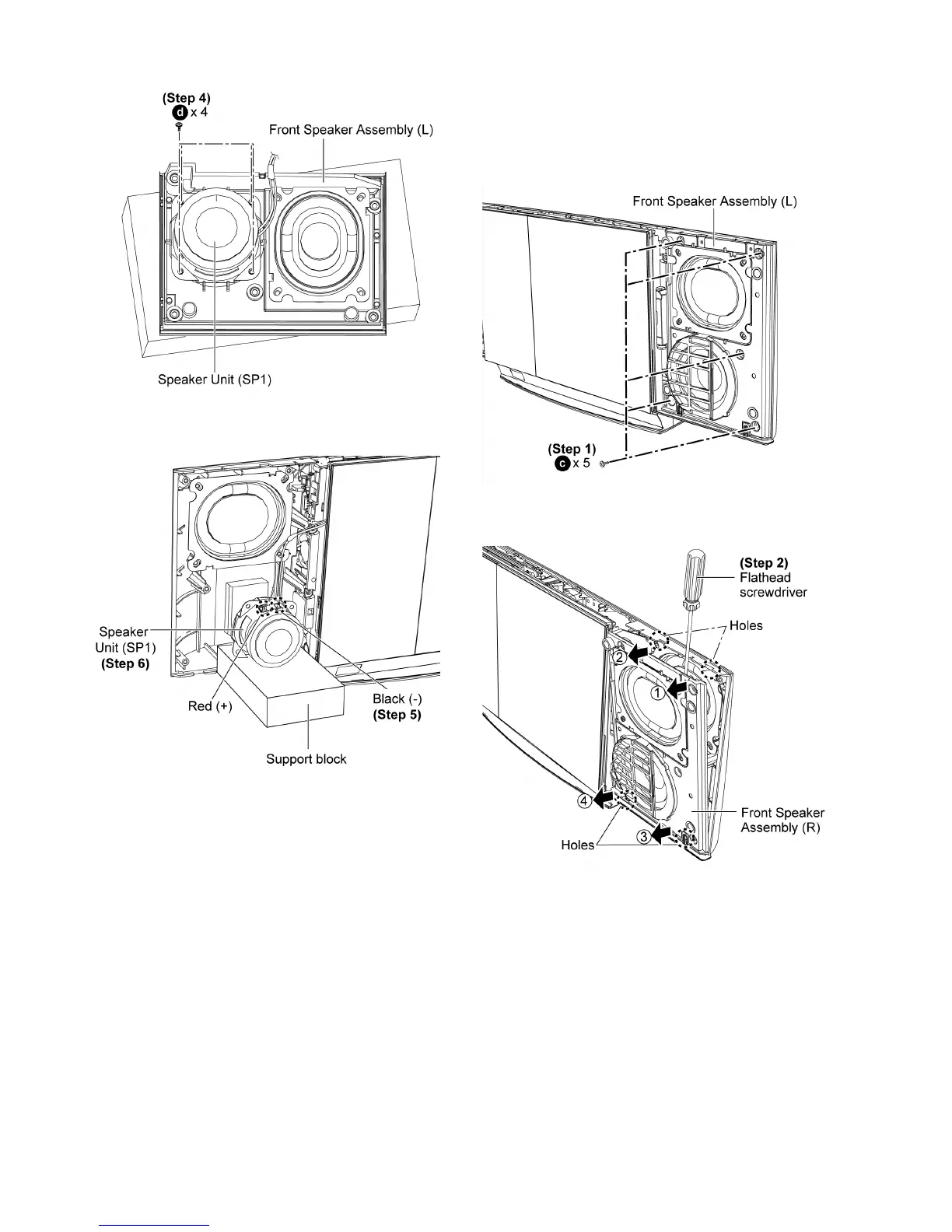

Step 4 : Remove 4 screws.
Step 5 : Desolder the speaker terminals of the red (+) and
black (-) speaker wires.
Step 6 : Remove Speaker unit (SP1).
9.9. Disassembly of Speaker Unit
(SP2)
• Follow the (Step 1) - (Step 4) of item 9.5.
• Follow the (Step 1) - (Step 3) of item 9.6.
• Follow the (Step 1) - (Step 3) of item 9.7.
Step 1 : Remove 5 scews.
Step 2 : Using a flathead screwdriver, apply gentle force at the
4 holes in the Front Speaker Assembly (R) to detach it from the
Main Unit as arrows shown.
