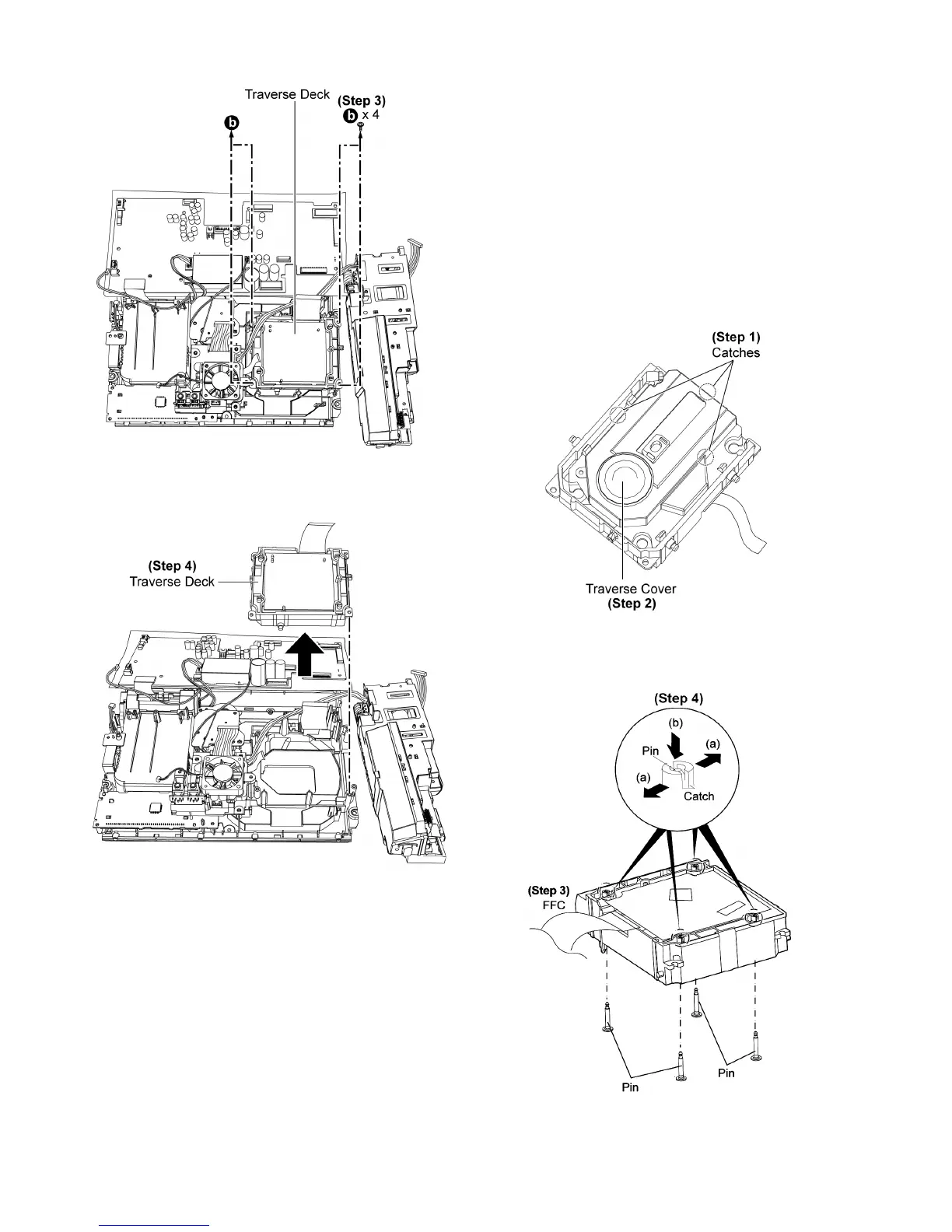

Step 3 : Remove 4 screws.
Step 4 : Remove the Traverse Deck.
9.23. Disassembly of Traverse Cover
& Traverse Unit
Follow the (Step 1) - (Step 4) of item 9.4.
Follow the (Step 1) - (Step 4) of item 9.5.
Follow the (Step 1) - (Step 3) of item 9.6.
Follow the (Step 1) - (Step 3) of item 9.7.
Follow the (Step 1) - (Step 9) of item 9.10.
Follow the (Step 1) - (Step 2) of item 9.11.
Follow the (Step 1) - (Step 2) of item 9.12.
Follow the (Step 1) of item 9.13.
Follow the (Step 1) - (Step 11) of item 9.19.
Follow the (Step 1) - (Step 4) of item 9.22.
Step 1 : Release 3 catches.
Step 2 : Remove the Traverse Cover.
Step 3 : Pull out FFC cable.
Step 4 : Widening the catch, push the fixed pin in. (a) (b).
