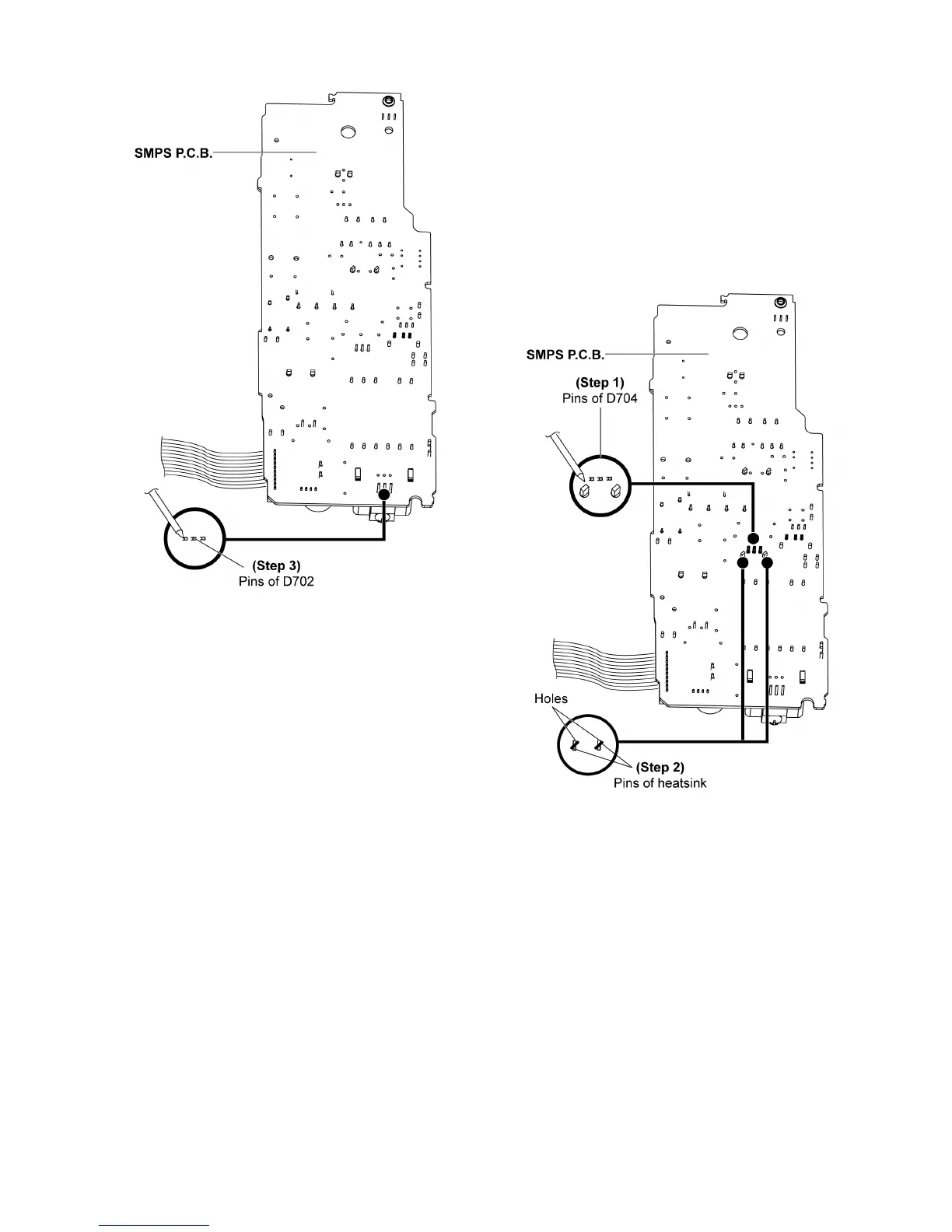

Step 3 : Solder pins of the Diode (D702) on the solder
side of SMPS P.C.B..
Caution : Check for solderability of the Diode (D702).
9.18. Replacement of Diode (D704)
• Follow the (Step 1) - (Step 4) of item 9.4.
• Follow the (Step 1) - (Step 4) of item 9.5.
• Follow the (Step 1) - (Step 3) of item 9.6.
• Follow the (Step 1) - (Step 3) of item 9.7.
• Follow the (Step 1) - (Step 9) of item 9.10.
• Follow the (Step 1) - (Step 2) of item 9.11.
• Follow the (Step 1) - (Step 2) of item 9.12.
• Follow the (Step 1) - (Step 5) of item 9.13.
• Follow the (Step 1) - (Step 9) of item 9.14.
• Follow the (Step 1) - (Step 2) of item 9.15.
Step 1 : Desolder pins of Diode (D704) on the solder side of
SMPS P.C.B..
Step 2 : Twist the pins of heatsink unit.
