Caution : During assembling ensure the SMPS P.C.B. is
seated properly on the locator after assembled.
9.16. Replacement of Switching Reg-
ulator IC (IC702)
• Follow the (Step 1) - (Step 4) of item 9.4.
• Follow the (Step 1) - (Step 4) of item 9.5.
• Follow the (Step 1) - (Step 3) of item 9.6.
• Follow the (Step 1) - (Step 3) of item 9.7.
• Follow the (Step 1) - (Step 9) of item 9.10.
• Follow the (Step 1) - (Step 2) of item 9.11.
• Follow the (Step 1) - (Step 2) of item 9.12.
• Follow the (Step 1) - (Step 5) of item 9.13.
• Follow the (Step 1) - (Step 9) of item 9.14.
• Follow the (Step 1) - (Step 2) of item 9.15.

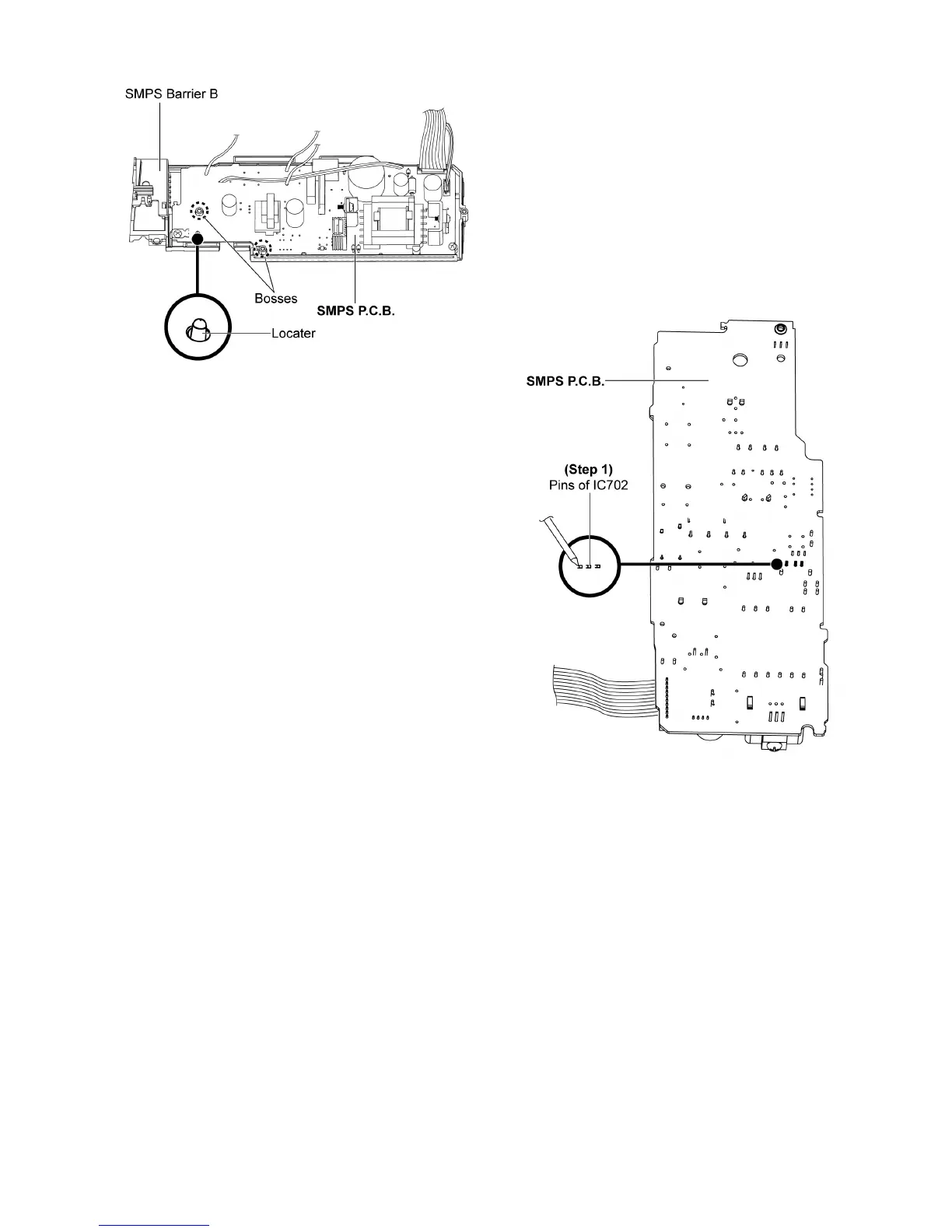

Step 1 : Desolder pins of Switching Regulator IC (IC702) on the
solder side of SMPS P.C.B..
