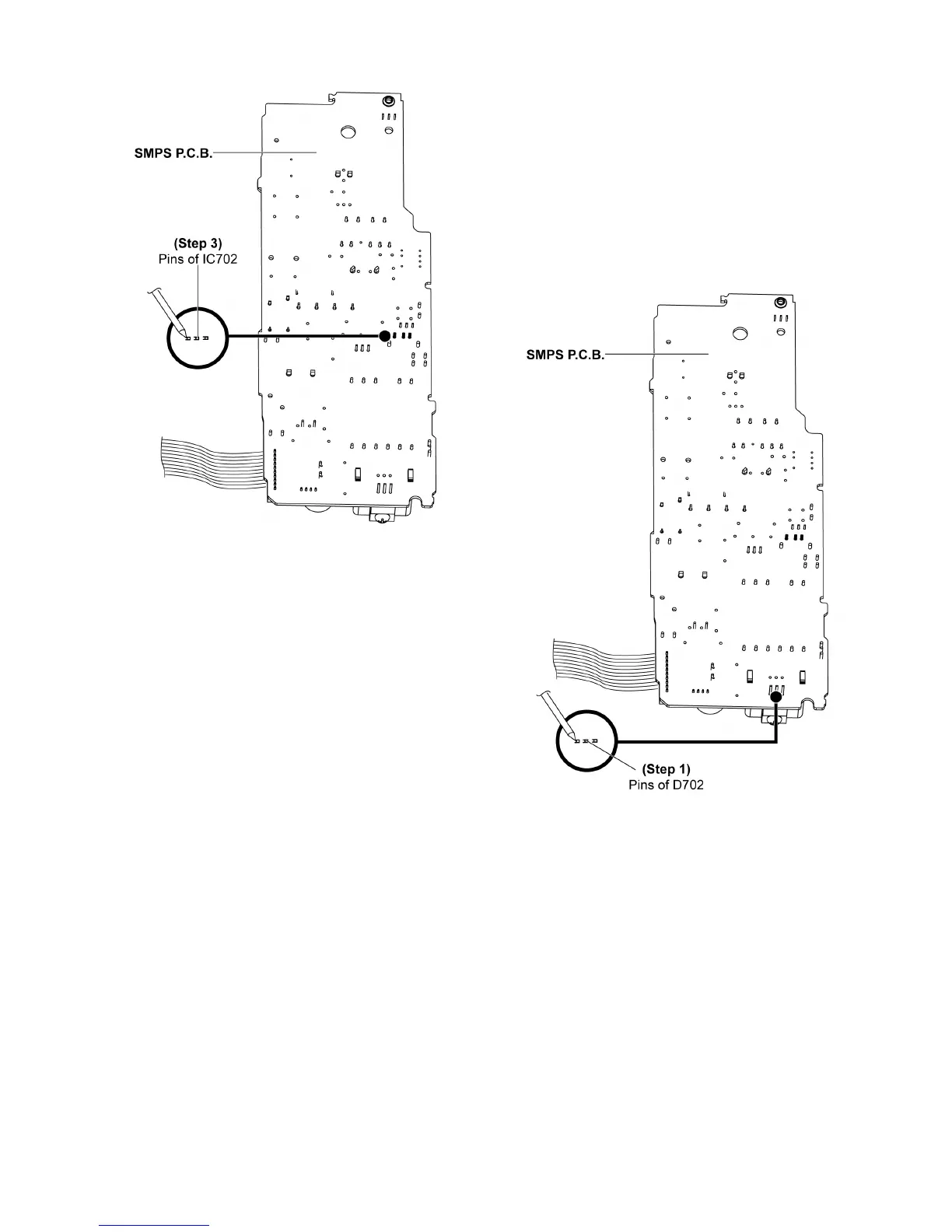

Step 3 : Solder pins of the Switching Regulator IC (IC702) on
the solder side of SMPS P.C.B..
Caution : Check for solderability of the Switching Regula-
tor IC (IC702).
9.17. Replacement of Diode (D702)
Follow the (Step 1) - (Step 4) of item 9.4.
Follow the (Step 1) - (Step 4) of item 9.5.
Follow the (Step 1) - (Step 3) of item 9.6.
Follow the (Step 1) - (Step 3) of item 9.7.
Follow the (Step 1) - (Step 9) of item 9.10.
Follow the (Step 1) - (Step 2) of item 9.11.
Follow the (Step 1) - (Step 2) of item 9.12.
Follow the (Step 1) - (Step 5) of item 9.13.
Follow the (Step 1) - (Step 9) of item 9.14.
Follow the (Step 1) - (Step 2) of item 9.15.
Step 1 : Desolder pins of Diode (D702) on the solder side of
SMPS P.C.B..
