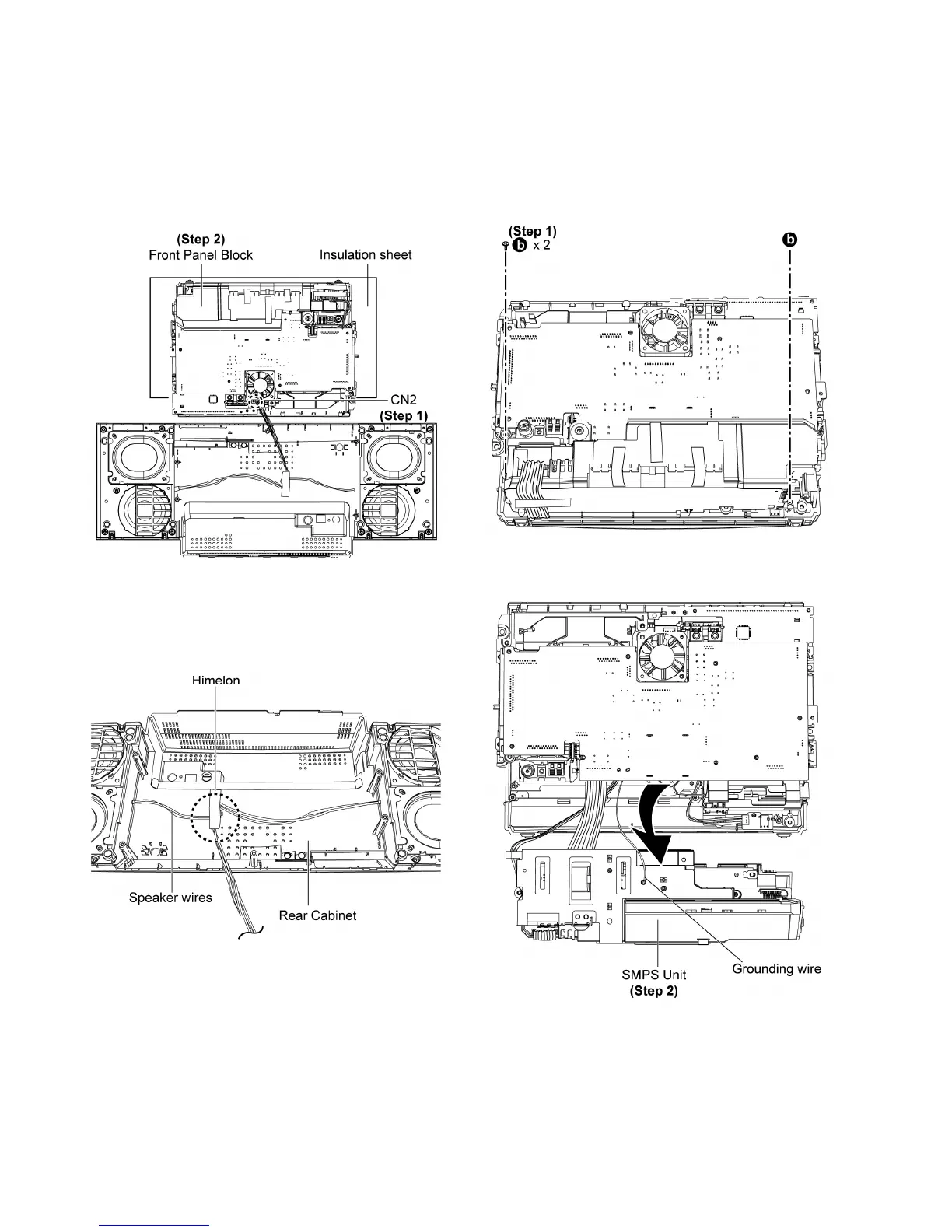

9.11. Disassembly of Front Panel
Block
• Follow the (Step 1) - (Step 4) of item 9.4.
• Follow the (Step 1) - (Step 4) of item 9.5.
• Follow the (Step 1) - (Step 3) of item 9.6.
• Follow the (Step 1) - (Step 3) of item 9.7.
• Follow the (Step 1) - (Step 9) of item 9.10.
Step 1 : Detach 4P cable at the connector (CN2) on D-Amp
P. C .B . .
Step 2 : Remove the Front Panel Block.
Caution 1 : During assembling of the Front Panel Block,
ensure that the speaker wires are fitted into the holes on
both sides of the Rear Cabinet as shown.
Caution 2 : During assembling of the Front Panel Block,
replace himelon if it is torn.
9.12. Disassembly of Tuner Pack
• Follow the (Step 1) - (Step 4) of item 9.4.
• Follow the (Step 1) - (Step 4) of item 9.5.
• Follow the (Step 1) - (Step 3) of item 9.6.
• Follow the (Step 1) - (Step 3) of item 9.7.
• Follow the (Step 1) - (Step 9) of item 9.10.
• Follow the (Step 1) - (Step 2) of item 9.11.
Step 1 : Remove 2 screws.
Step 2 : Lift up and flip over the SMPS Unit.
