9.29. Disassembly of Motor P.C.B.
• Follow the (Step 1) - (Step 4) of item 9.4.
• Follow the (Step 1) - (Step 4) of item 9.5.
• Follow the (Step 1) - (Step 3) of item 9.6.
• Follow the (Step 1) - (Step 3) of item 9.7.
• Follow the (Step 1) - (Step 9) of item 9.10.
• Follow the (Step 1) - (Step 2) of item 9.11.
• Follow the (Step 1) - (Step 2) of item 9.12.
• Follow the (Step 1) of item 9.13.
• Follow the (Step 1) - (Step 16) of item 9.19.
• Follow the (Step 1) - (Step 5) of item 9.28.

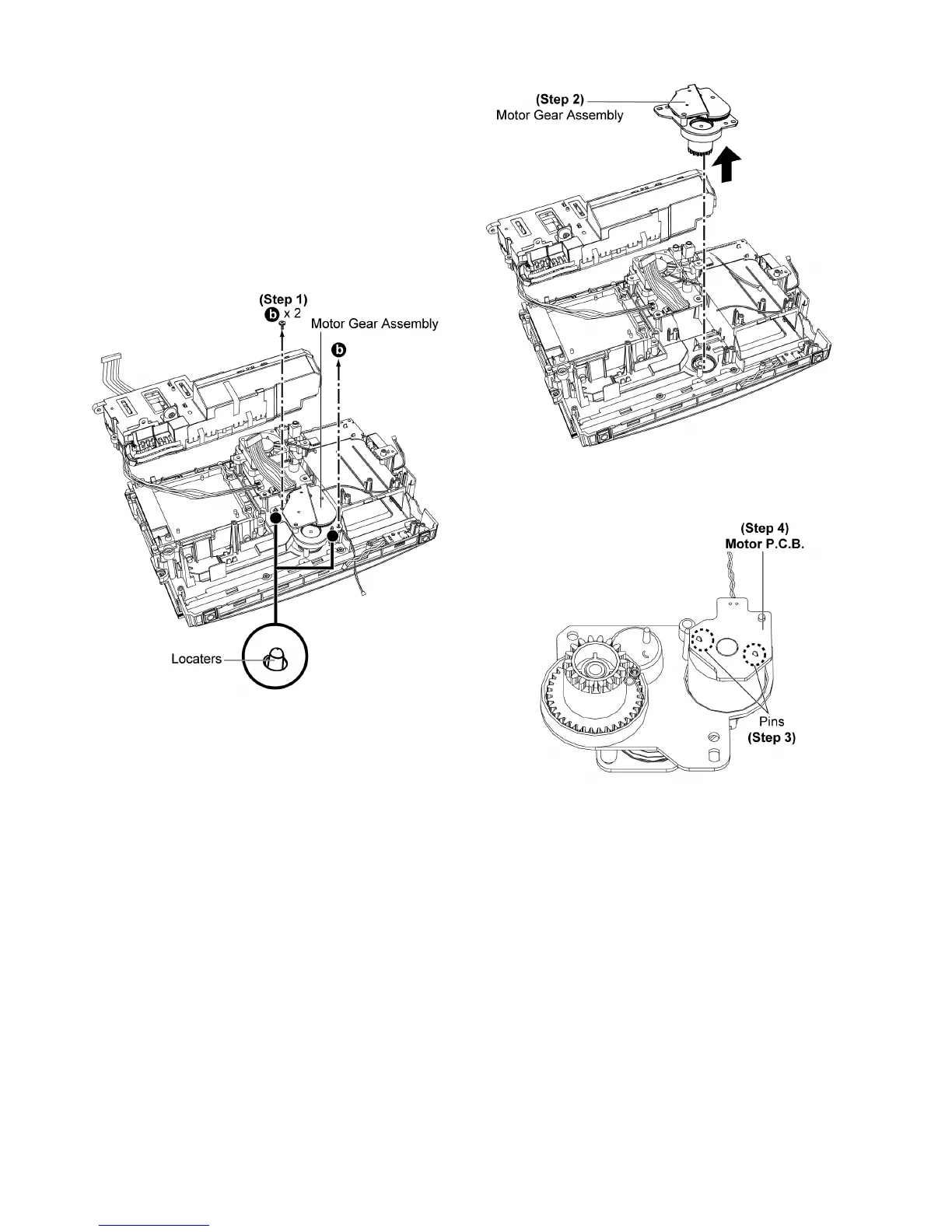

Step 1 : Remove 2 screws.
Caution : Ensure the Motor Gear Assembly is seated prop-
erly on the locator after assembled.
Step 2 : Remove the Motor Gear Assembly.
Step 3 : Desolder pins of the Motor P.C.B..
Step 4 : Remove the Motor P.C.B..
