Panasonic SC-HC3P User Manual

49

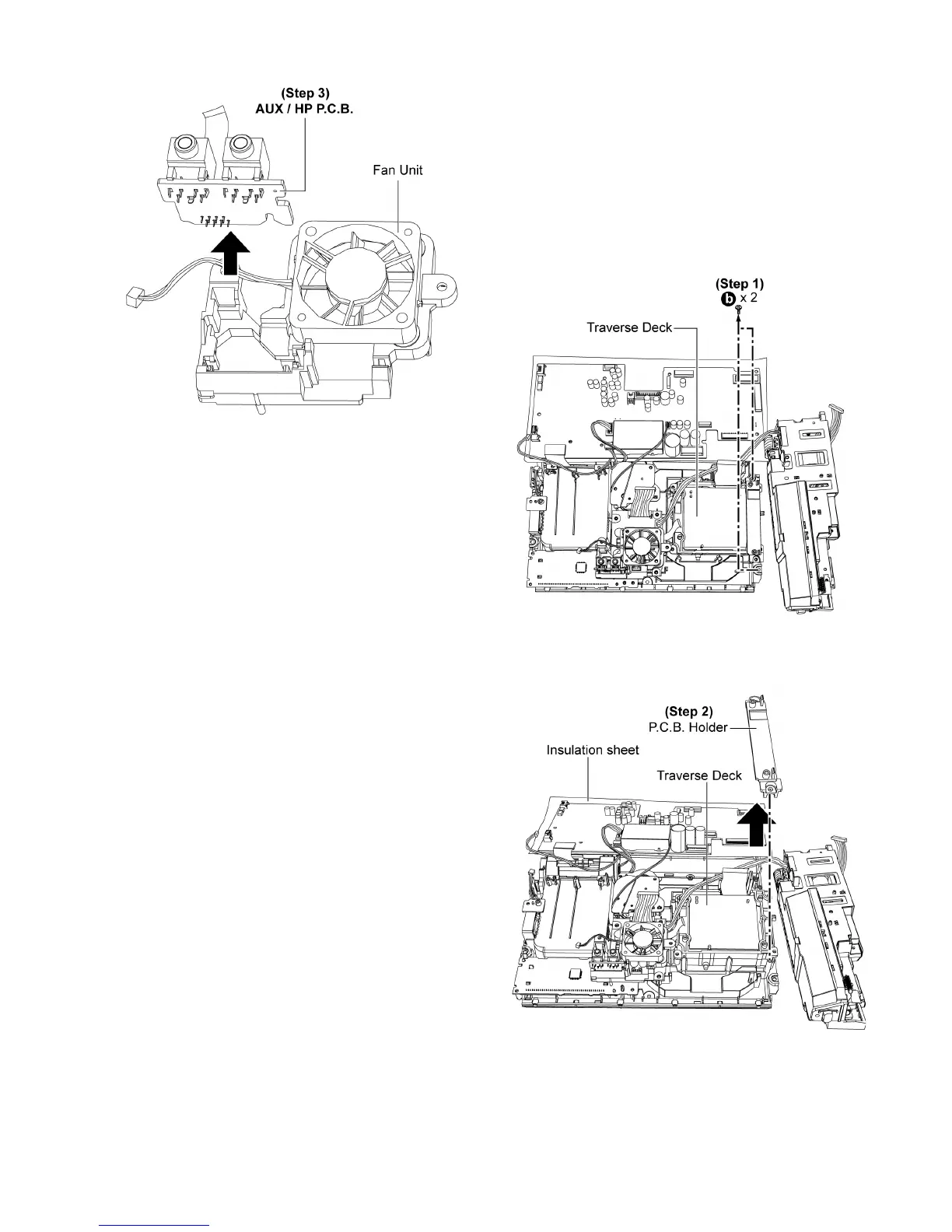

Step 3 : Remove the AUX / HP P.C.B..
9.22. Disassembly of Traverse Deck
• Follow the (Step 1) - (Step 4) of item 9.4.
• Follow the (Step 1) - (Step 4) of item 9.5.
• Follow the (Step 1) - (Step 3) of item 9.6.
• Follow the (Step 1) - (Step 3) of item 9.7.
• Follow the (Step 1) - (Step 9) of item 9.10.
• Follow the (Step 1) - (Step 2) of item 9.11.
• Follow the (Step 1) - (Step 2) of item 9.12.
• Follow the (Step 1) of item 9.13.
• Follow the (Step 1) - (Step 11) of item 9.19.
Step 1 : Remove 2 screws.
Step 2 : Remove the P.C.B. holder.
