46

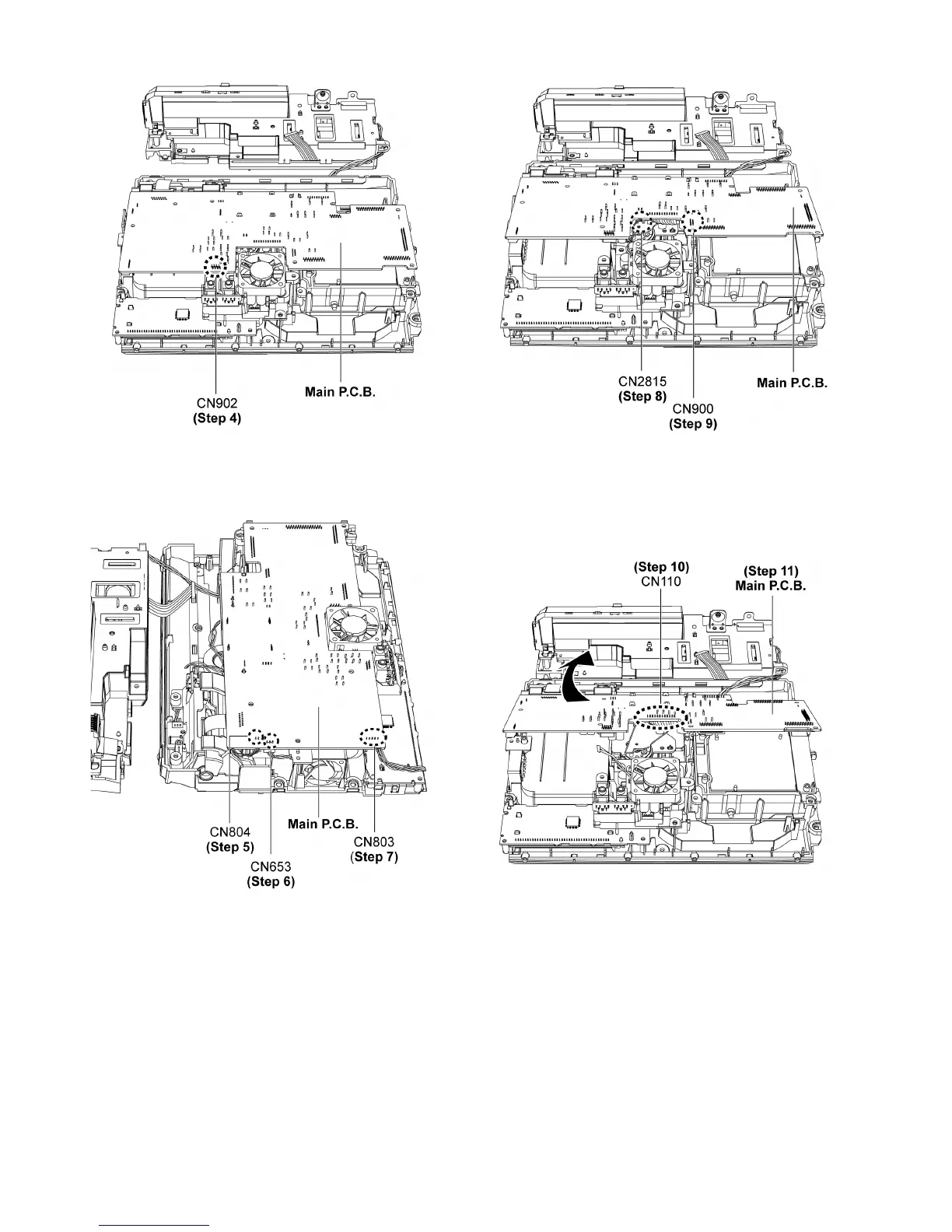

Step 4 : Detach 8P FFC cable at the connector (CN902) on the
Main P.C.B..
Step 5 : Detach 2P cable at the connector (CN804) on the Main
P. C .B . .
Step 6 : Detach 3P cable at the connector (CN653) on the Main
P. C .B . .
Step 7 : Detach 5P cable at the connector (CN803) on the Main
P. C .B . .
Step 8 : Detach 2P cable at the connector (CN2815) on the
Main P.C.B..
Step 9 : Detach 9P FFC cable at the connector (CN900) on the
Main P.C.B..
Step 10 : Detach 12P cable at the connector (CN110) on the
Main P.C.B..
Step 11 : Flip over the Main P.C.B. as arrow shown.
