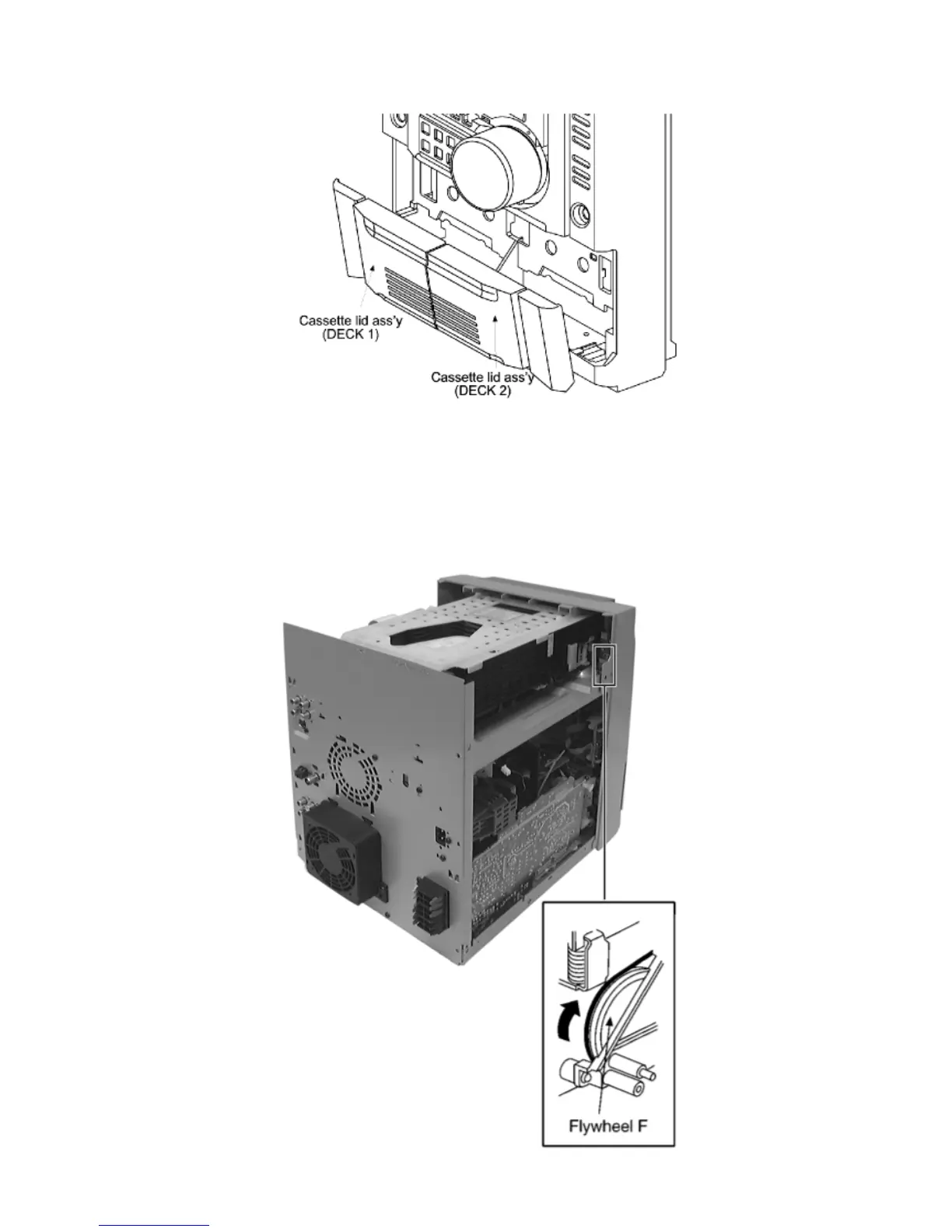

Step 3 Remove the cassette lid ass’y. (For DECK1 and DECK2).
17.14 Counter-measure for tape trouble
• Follow the (Step 1) - (Step 2) of Item 17.2.
Step 1 If a cassette tape cannot be removed from the deck since the tape is caught by the capstan or pinch roller uring
playback or recording, rotate the flywheel F in the direction of the arrow to remove the tape.
To Next Page
